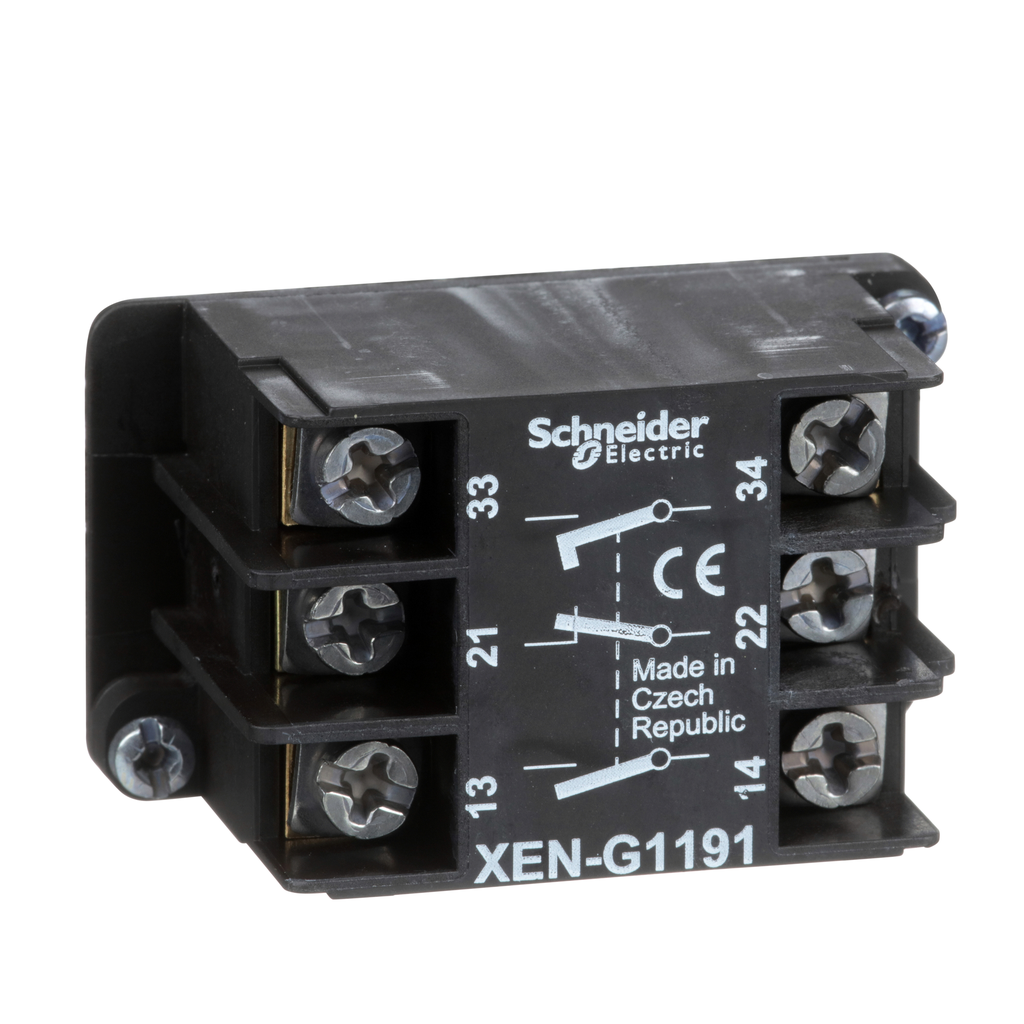

Schneider Electric XENG1191 Square D XENG1191 240 VAC 3 Amp 2NO 1NC Pendant Station Contact Block

Product Description

Schneider Electric XENG1191 is a pendant station contact block rated for two normally open (2NO) and one normally closed (1NC) operation at two hundred forty volts alternating current (240 VAC) and three amps. This product enhances control systems in various applications such as manufacturing and automation.

• Rated voltage: 240 VAC
• Current rating: 3 Amps
• Contact configuration: 2 Normally Open, 1 Normally Closed

Product Highlights

This contact block is designed for durability and reliability in industrial environments. It features a spring return mechanism, ensuring it automatically returns to its default position after activation.

Product Information

Standard Information

• Manufacturer: Schneider Electric
• Catalog Number: XENG1191

Technical Specifications

• GTIN: 03389110645705
• Type: Contact block
• Weight: 0.09 lb
• Rated Operating Force: 18 N
• Operating Temperature Range: -25 to 70 degrees Celsius
• Mechanical Durability: 1,000,000 cycles
• Wattage: 40 Watt DC-13
• Country of Origin: Czech Republic
