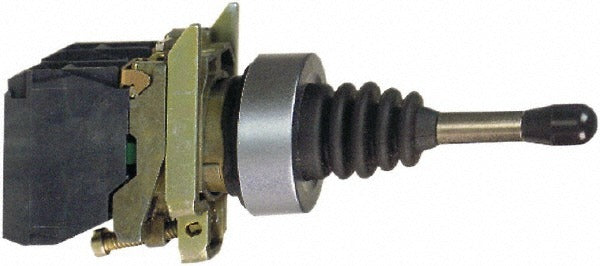

Schneider Electric XD5PA24 Joystick Controller Switch

Product Description

The Schneider Electric XD5PA24 is a 5-position momentary joystick controller switch designed for industrial control panel applications. It features a round handle and supports multiple amperage levels, making it suitable for directional control tasks in machine and equipment wiring. The switch mounts through a 22mm diameter panel cutout and carries an IP66 environmental rating, providing protection against dust ingress and powerful water jets. Licensed electricians and industrial control technicians typically specify and install this switch in operator interface panels and control enclosures.

The XD5PA24 is suited for use in industrial and commercial control systems where momentary 5-position joystick input is required. Typical applications include crane and hoist controls, conveyor direction switching, and machine tool operator stations. The IP66 rating makes it appropriate for wash-down environments or outdoor enclosures where moisture and particulate exposure is a concern. Its 22mm mount hole diameter fits standard 22mm panel cutouts common across a wide range of control enclosure configurations.

Key Features

• 5-position momentary (MO) joystick action for multi-directional control input
• Round handle design for positive grip in operator panel applications
• IP66 rated for dust-tight and water jet resistant performance
• 22mm mount hole diameter fits standard industrial control panel cutouts
• Operating temperature range of -13 to 158 degrees F for broad environmental compatibility
• Multiple amperage level support accommodates varied control circuit requirements

Compatibility

Designed as an OEM-style replacement or new-installation joystick switch for industrial control panels using standard 22mm panel cutout configurations.

Installation Notes

Installation should be performed by a qualified electrician in accordance with applicable NEC guidelines. De-energize and lock out the control panel before removing or installing any switch. The 22mm mount hole should be clean and free of burrs before inserting the switch body to ensure a proper IP66 seal. Verify that all wiring connections are secured and the switch actuates freely through all five positions before restoring power.
