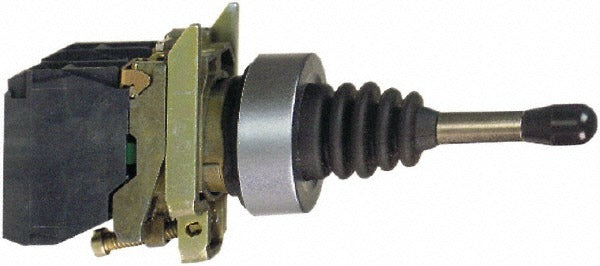

Schneider Electric XD4PA24 Joystick Controller Switch

Product Description

The SCHNEIDER ELECTRIC XD4PA24 is a 5-position momentary joystick controller switch designed for industrial control panel applications. It features a round handle and mounts through a 22mm hole, making it compatible with standard 22mm panel cutouts. The switch operates across a wide temperature range of -13 to 158 degrees F, supporting reliable performance in demanding environments. Rated IP66, it resists dust ingress and powerful water jets, a key requirement for industrial and process control installations. Licensed electricians and control panel technicians are the primary installers of this type of switch.

This joystick switch is suited for residential and commercial control panel builds, machine operator interfaces, crane controls, conveyor systems, and similar multi-directional input applications. The 5-position configuration supports center plus four directional inputs, giving operators precise directional control in a compact package. Its momentary action means contacts return to the neutral state when the handle is released, which is appropriate for applications requiring continuous operator input to maintain movement or function.

Key Features

• 5-position momentary (MO) joystick action for multi-directional control input
• Round handle design for ergonomic operator use in panel-mount applications
• IP66-rated enclosure protection against dust and high-pressure water jets
• 22mm mount hole diameter fits standard 22mm panel cutout configurations
• Wide operating temperature range: -13 to 158 degrees F
• Compact form factor: 2.5 inches long, 2.8 inches wide, 1.4 inches tall

Compatibility

Designed as an OEM-style replacement or new-installation joystick controller switch for standard 22mm industrial control panel cutouts.

Installation Notes

Installation should be performed by a licensed electrician in accordance with applicable NEC requirements. De-energize the control panel completely before removing any existing switch or installing this unit. Verify the 22mm panel cutout dimensions and confirm that the mounting surface thickness is compatible with the switch body prior to securing the assembly. Do not exceed the rated current and voltage specifications for the switch contacts during wiring.
