Schneider Electric XD4PA22 Joystick Controller 15 Amp 240 VAC

Product Description

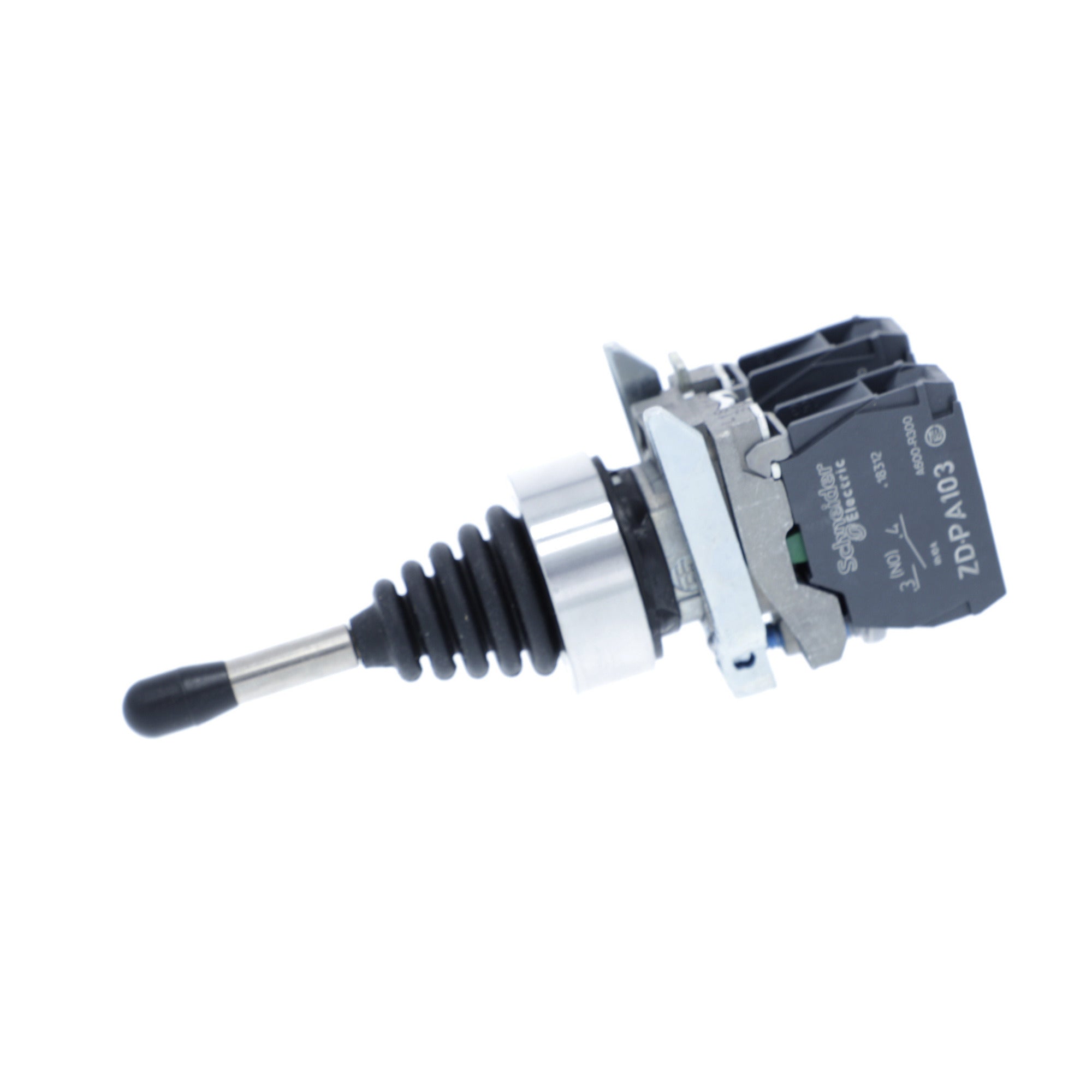

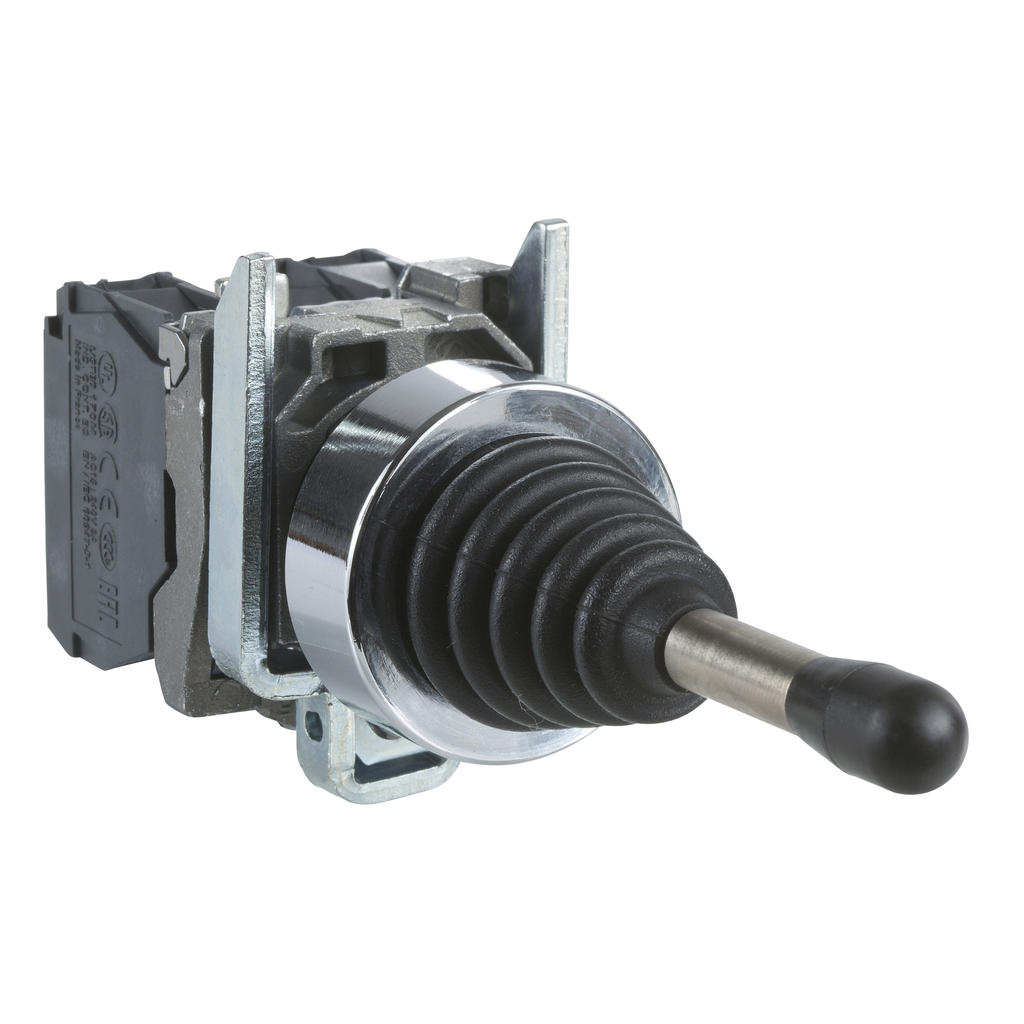

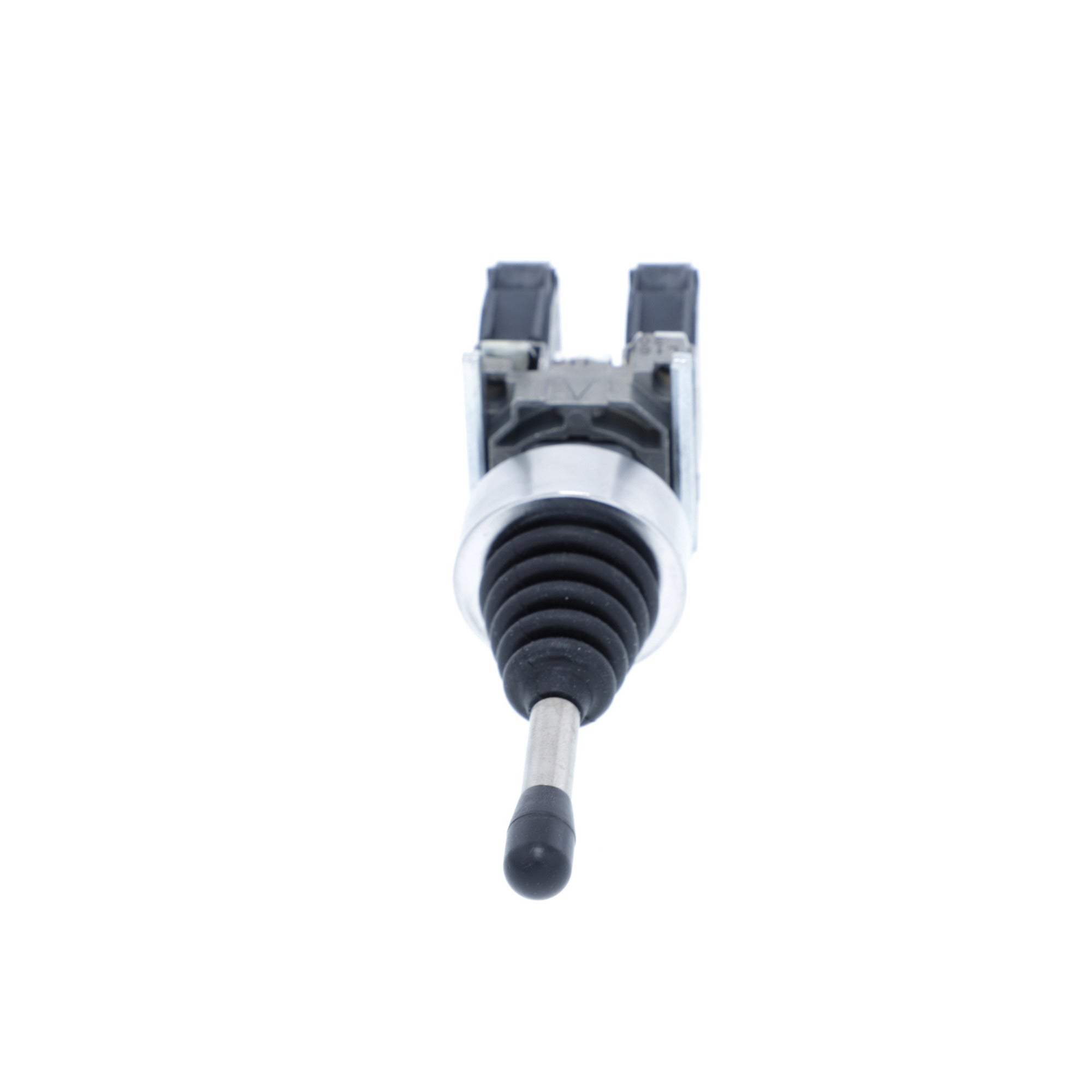

The Schneider Electric XD4PA22 is a joystick controller designed for 15 Amp 240 VAC applications. This controller features a four-direction return-to-center mechanism. Each direction is supported by a normally open (NO) contact, ensuring precision control. It has a robust chromium-plated metal bezel and is easy to install into standard twenty-two millimeter diameter cut-outs. Simple screw-clamp connections enable quick integration into control circuits.

• Rugged and durable design suitable for harsh environments.
• IP66 rating for protection against dust and water.
• Spring return mechanism that requires less maintenance and offers a longer lifespan.

Product Highlights

The XD4PA22 joystick controller provides an intuitive interface for machine control. Its durability and impact resistance make it ideal for various industrial applications.

Product Information

Standard Information

• Catalog Number: XD4PA22
• Manufacturer: Schneider Electric

Technical Specifications

• Weight: 0.26 lb
• Operating Temperature: -25 to 70 degrees C
• Storage Temperature: -40 to 70 degrees C
• Certification: UL Listed, CSA, IEC standards
• Country of Origin: France
• Warranty Length: 18 months
• Material: Chromium Plated Metal
• Contact Material: Silver Alloy
