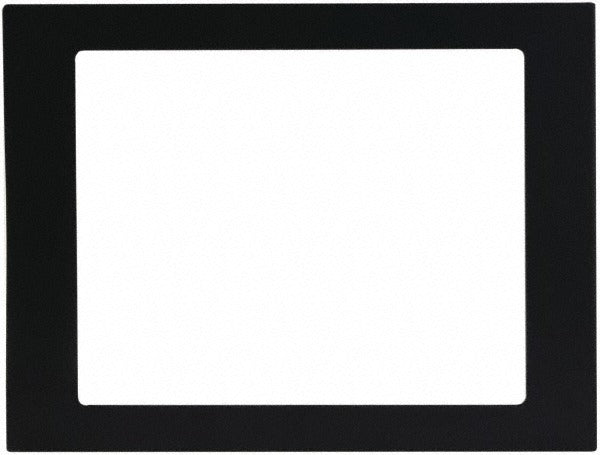

Schneider Electric XBTZGCO4 Panel Meter Cutout Adapter

Product Description

The SCHNEIDER ELECTRIC XBTZGCO4 is a panel meter cutout adapter designed to bridge the gap between a panel meter and its enclosure cutout. It provides a secure, flush-fit interface that allows panel meters to seat correctly within control panel openings that may not match the meter's native footprint. Measuring 14.5 inches in length, 11.8 inches in width, and 3.3 inches in height, this adapter is handled and installed by industrial electricians and control panel builders working on instrumentation and process control enclosures. It ships as a single unit and is a direct accessory component in panel instrumentation assemblies.

This cutout adapter is suited for industrial and commercial control panel applications where panel meters require a properly fitted mounting interface. It is typically used during new panel builds or when retrofitting existing enclosures to accept a different meter form factor. Installers working on motor control centers, process control panels, and industrial automation enclosures will find this adapter appropriate for achieving a clean, secure meter installation.

Key Features

• Provides a cutout adaptation interface for panel meter installations
• Dimensions of 14.5 x 11.8 x 3.3 inches support standard panel enclosure fitment
• Single-unit packaging simplifies procurement for individual panel builds
• Classified as a panel meter accessory for straightforward parts identification
• Lightweight at 1.71 pounds for easy handling during panel assembly

Compatibility

Designed as an OEM-style panel meter accessory for use with compatible SCHNEIDER ELECTRIC panel meters requiring cutout adaptation. Refer to the specific panel meter documentation to confirm fitment before installation.

Installation Notes

Installation should be performed by a qualified electrician or instrumentation technician. De-energize the control panel and follow lockout/tagout procedures before beginning work. Verify that the enclosure cutout dimensions align with the adapter specifications prior to mounting. Consult applicable NEC guidelines and the panel meter manufacturer documentation for mounting torque and hardware requirements.
