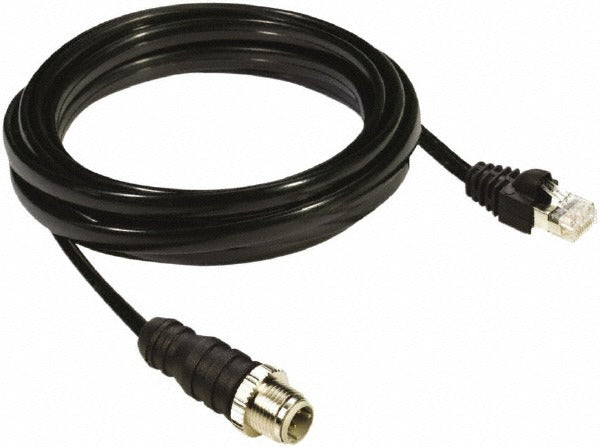

Schneider Electric XBTZ9780 Computer Cable DIN1 RJ45 8.2 Ft

Product Description

The Schneider Electric XBTZ9780 is a computer cable designed to connect Magelis HMI terminals to compatible network or programming interfaces. It features a DIN1 connector on one end and an RJ45 connector on the other, with an overall length of 8.2 feet (2.5 meters). Weighing just 0.25 pounds, this cable is a direct OEM-style accessory for the Magelis OPTIMUM XBT N and XBT R series panels. It is installed by automation technicians, control panel integrators, and industrial electricians who work with Schneider Electric HMI equipment in machine control and process automation environments.

This cable is used in applications where a Magelis HMI panel requires a dedicated communication or programming connection. Typical installations include industrial machine panels, process control stations, and automation control cabinets. The DIN1-to-RJ45 configuration matches the interface requirements of the Magelis OPTIMUM XBT N and XBT R series terminals, making it the correct cable for commissioning, programming, or data transfer tasks on those units.

Key Features

• DIN1 to RJ45 connection type for direct HMI interface compatibility
• 8.2 feet (2.5 meters) total cable length provides adequate reach in most panel installations
• Lightweight at 0.25 pounds, minimizing strain on connectors and panel ports
• OEM accessory designed specifically for Magelis OPTIMUM XBT N and XBT R series HMI terminals
• Package quantity of one cable per unit, matching typical single-panel installation needs

Compatibility

Designed to connect Magelis OPTIMUM XBT N and XBT R series HMI terminals using a DIN1 to RJ45 interface, as specified by the manufacturer.

Installation Notes

This cable is installed by qualified automation technicians or industrial electricians. Power down the HMI panel and any connected control equipment before disconnecting or connecting communication cables. Seat connectors fully and verify locking tabs are engaged before restoring power. Follow applicable NFPA 70 (NEC) guidelines for wiring within control panels.
