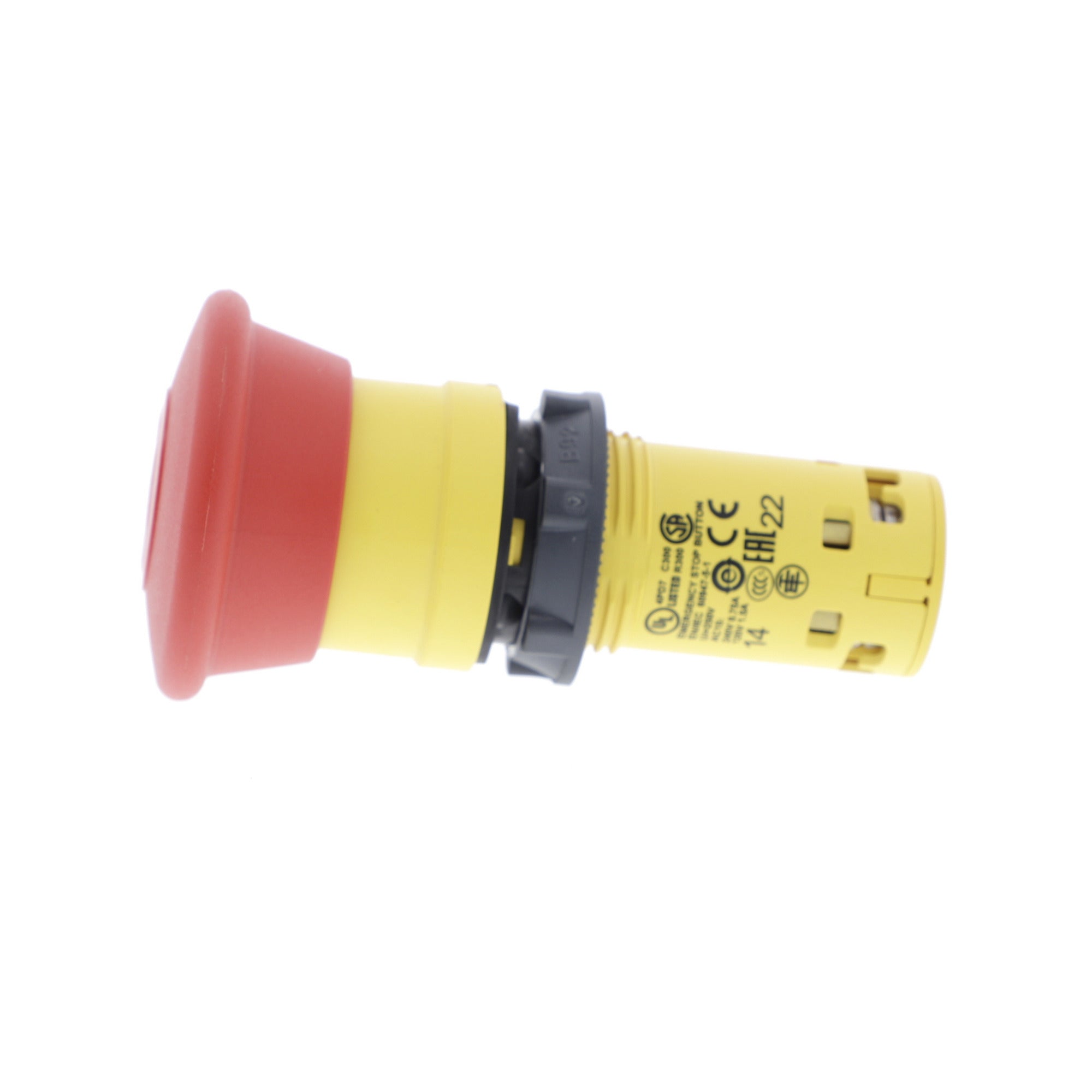

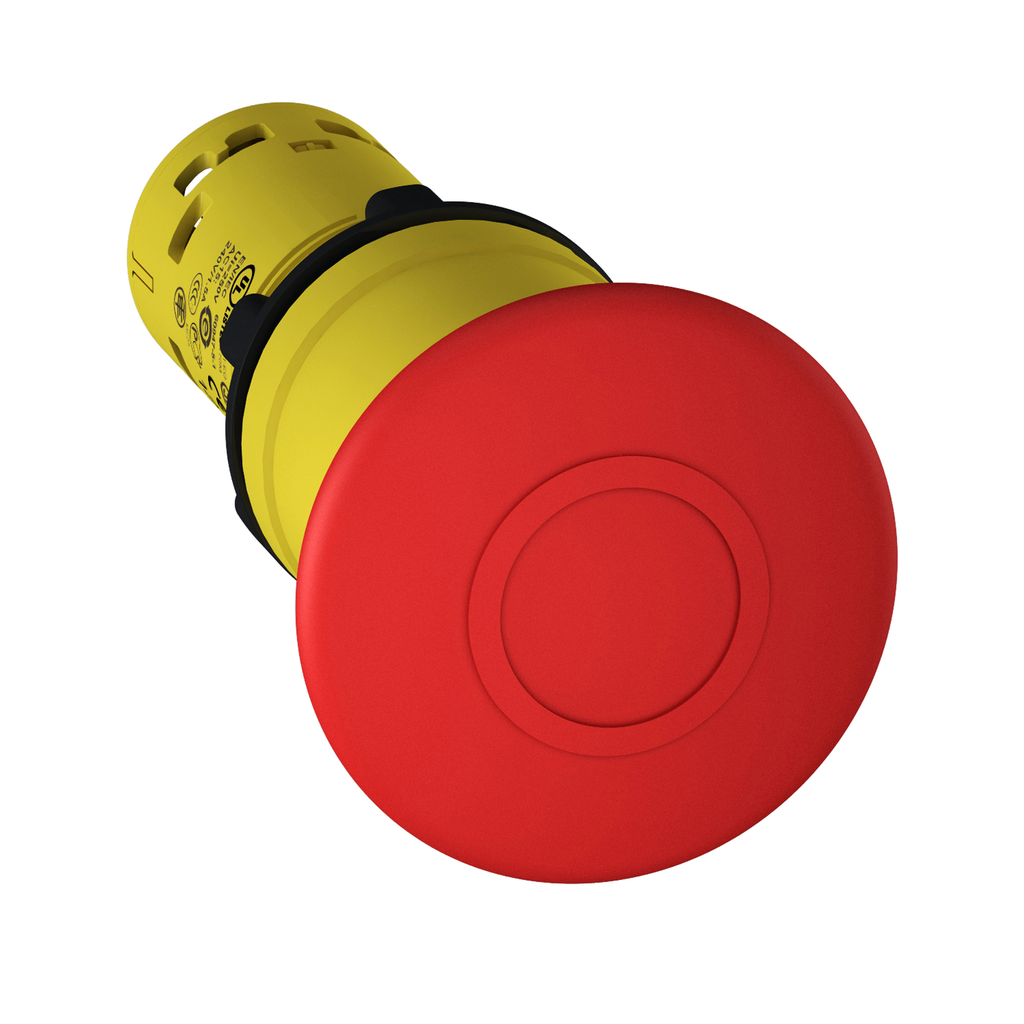

Schneider Electric XB7NT845 Monolithic Emergency Stop 40mm Mushroom 1NO 1NC

Product Description

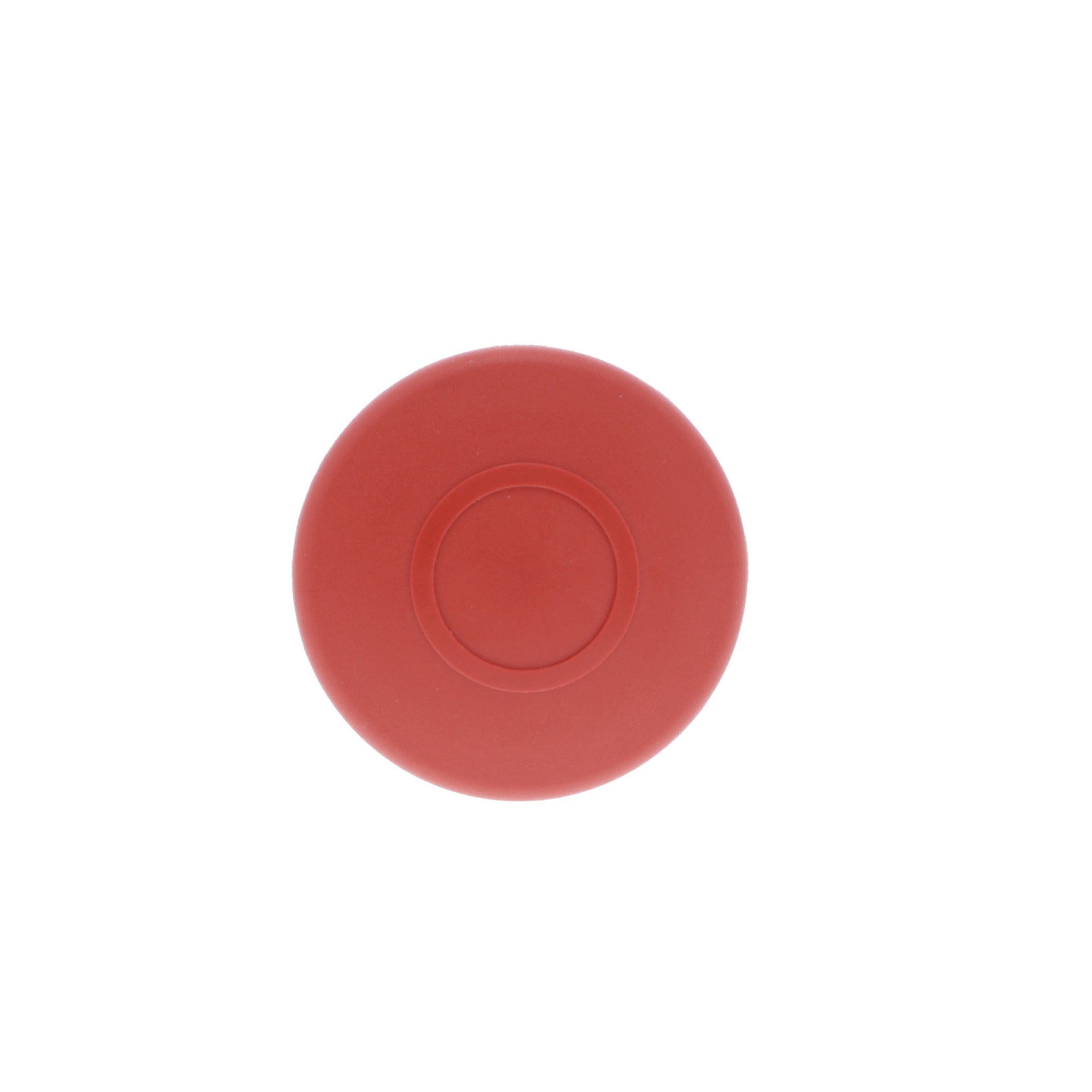

The Schneider Electric XB7NT845 is a monolithic emergency stop switch designed for safety and versatility. This push-button device features a red mushroom head with a diameter of forty millimeters. It operates using a latched push-pull mechanism and connects easily with screw-clamp terminals. The device fits standard twenty-two millimeter cut-outs, ensuring simple installation.

• Impact-resistant and weatherproof with an IP65 rating.
• Wide operating temperature range from minus twenty-five degrees Celsius to seventy degrees Celsius.
• Features a mechanical latching action for reliable operation.

Product Highlights

Ideal for use in demanding environments, the XB7NT845 meets several safety standards while providing clear visibility due to its color and design.

Product Information

Standard Information

• Brand: Schneider Electric
• Manufacturer: Square-D / Schneider

Technical Specifications

• Catalog Number: XB7NT845
• Weight: 0.08 lb
• Height: 1.57 in
• Width: 1.57 in
• Color: Red
• Action: Snap action
• Operating Temperature: -25 to 70 degrees Celsius
• Contact Configuration: 1 NO + 1 NC
• GTIN: 03606480465635
