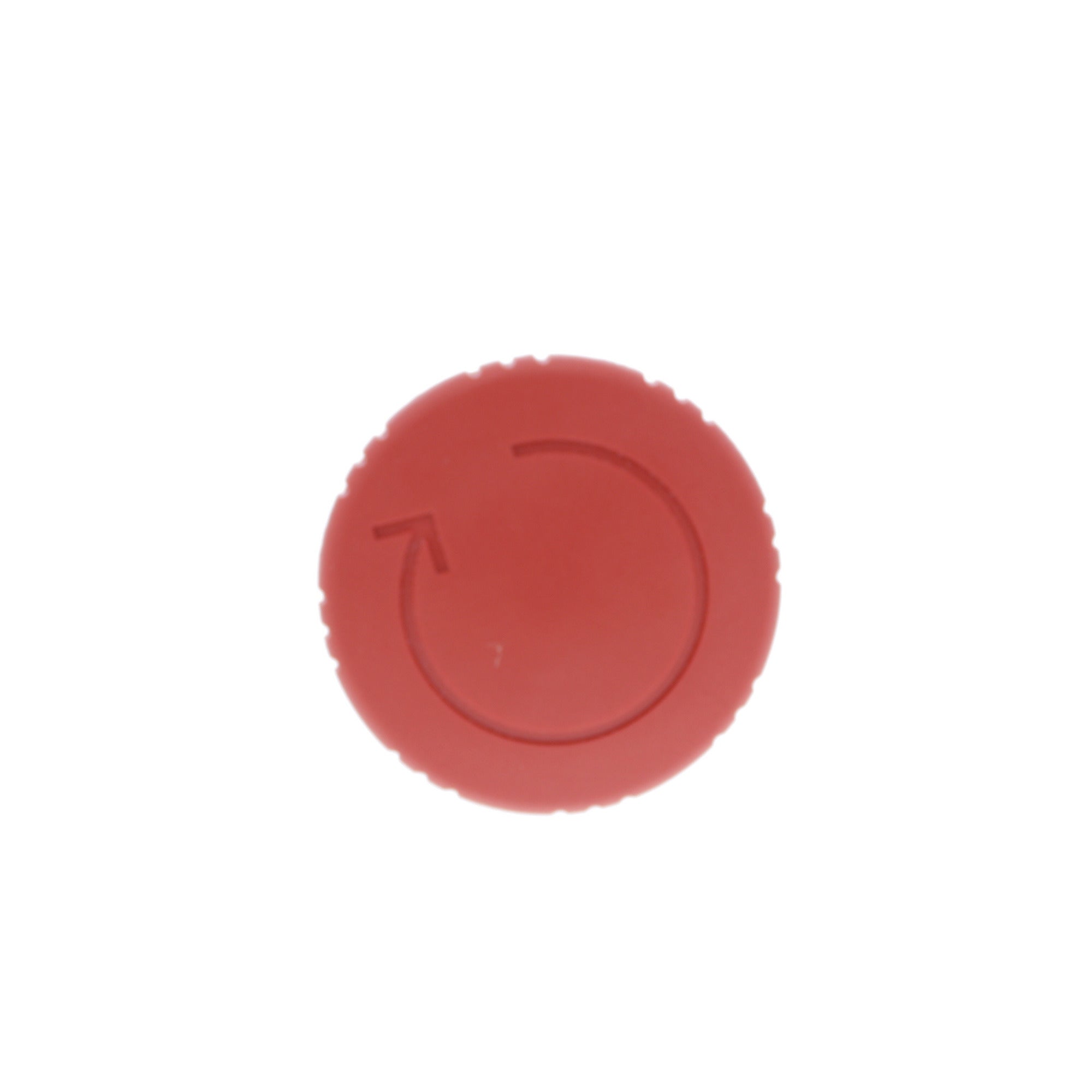

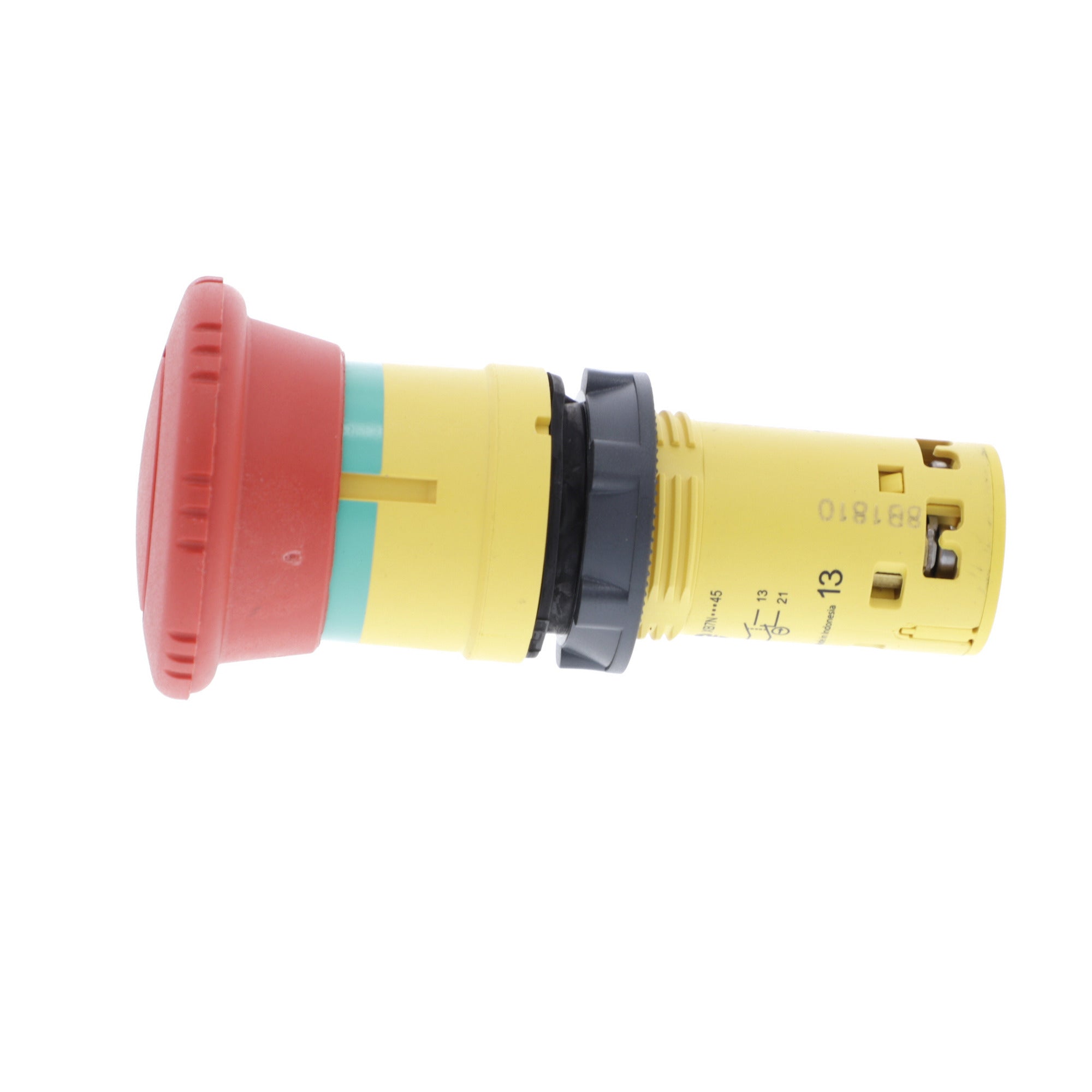

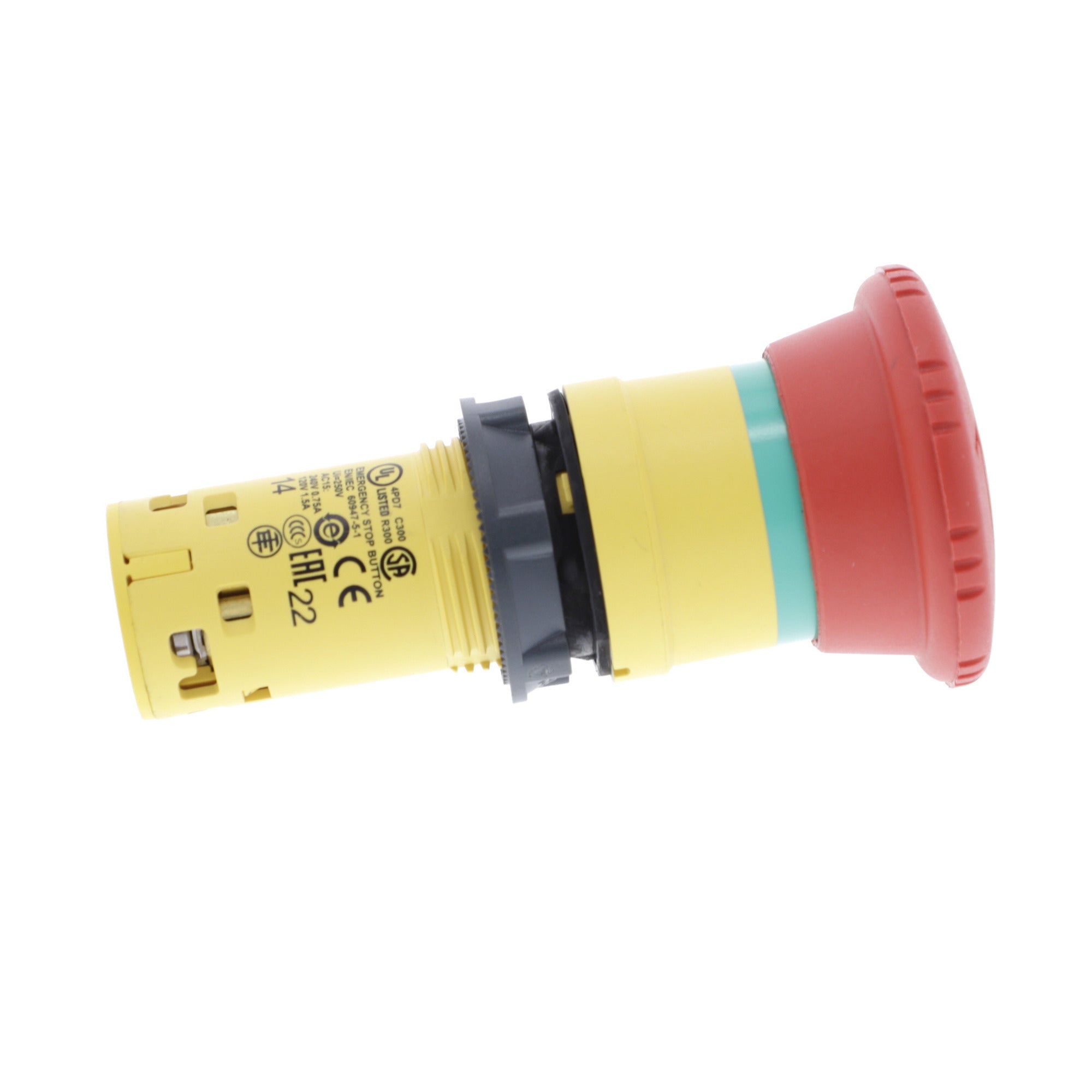

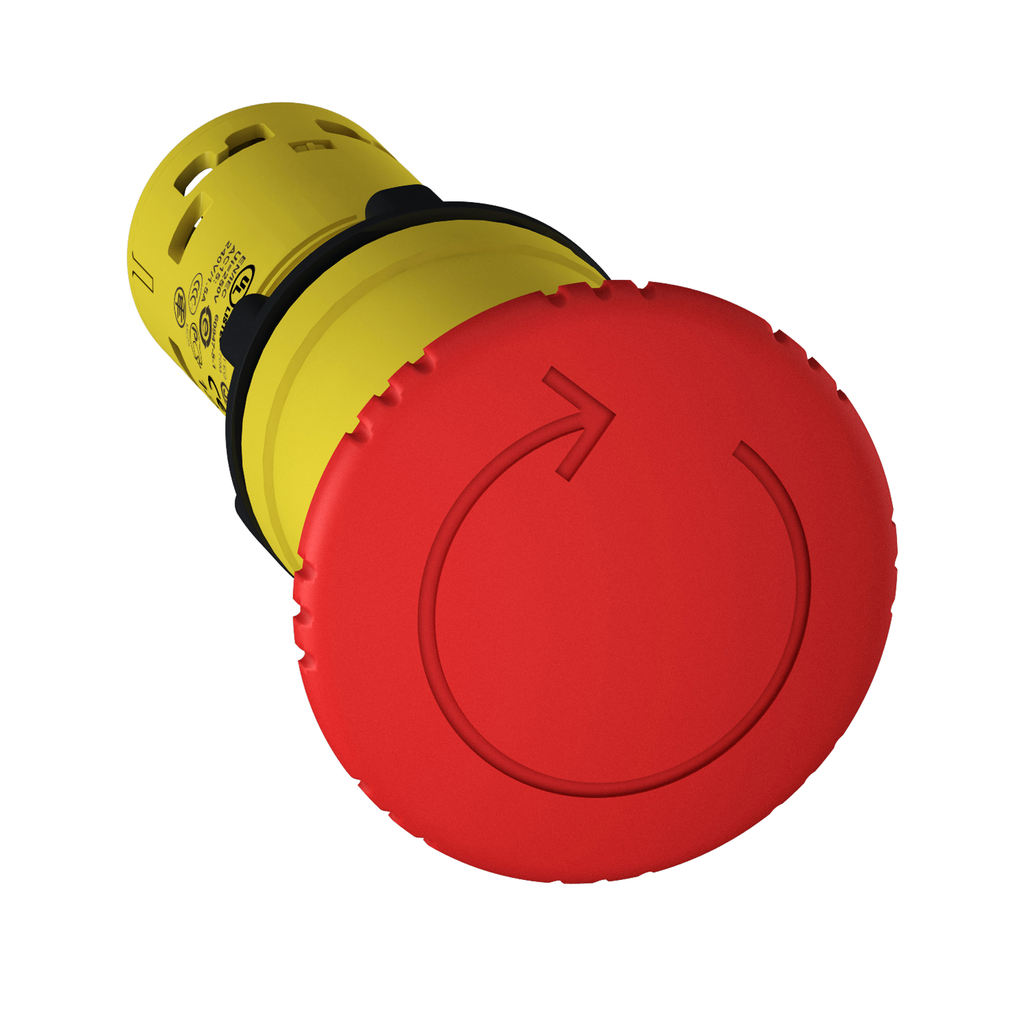

Schneider Electric XB7NS8445 Monolithic Emergency Stop 40mm Red Mushroom

Product Description

The Schneider Electric XB7NS8445 is an emergency stop button designed for safety in automation. This 40mm red mushroom head button uses a latched-turn-to-release mechanism and has screw clamp terminals. It mounts into a standard cut-out of twenty-two millimeters and connects easily with screw-clamp connections.

• Impact, dust, and water-resistant (IP65)
• Wide operating temperature range from minus twenty-five degrees Celsius to seventy degrees Celsius
• Double insulated plastic bezel enhances durability

Product Highlights

This device is ideal for preventing accidents in various environments. Its clear red color and prominent shape allow users to quickly identify it from a distance.

Product Information

Standard Information

• Catalog Number: XB7NS8445
• Manufacturer: Schneider Electric

Technical Specifications

• Type: Emergency stop push-button
• Size: 40 mm
• Weight: 0.08 lb
• Action: Snap action
• Contact Configuration: 1 NO + 1 NC
• Operating Temperature: -25 to 70 degrees C
• Amperage: 0.1 Amp 250 V
• Standard: CSA C22.2 No 14, UL 508
