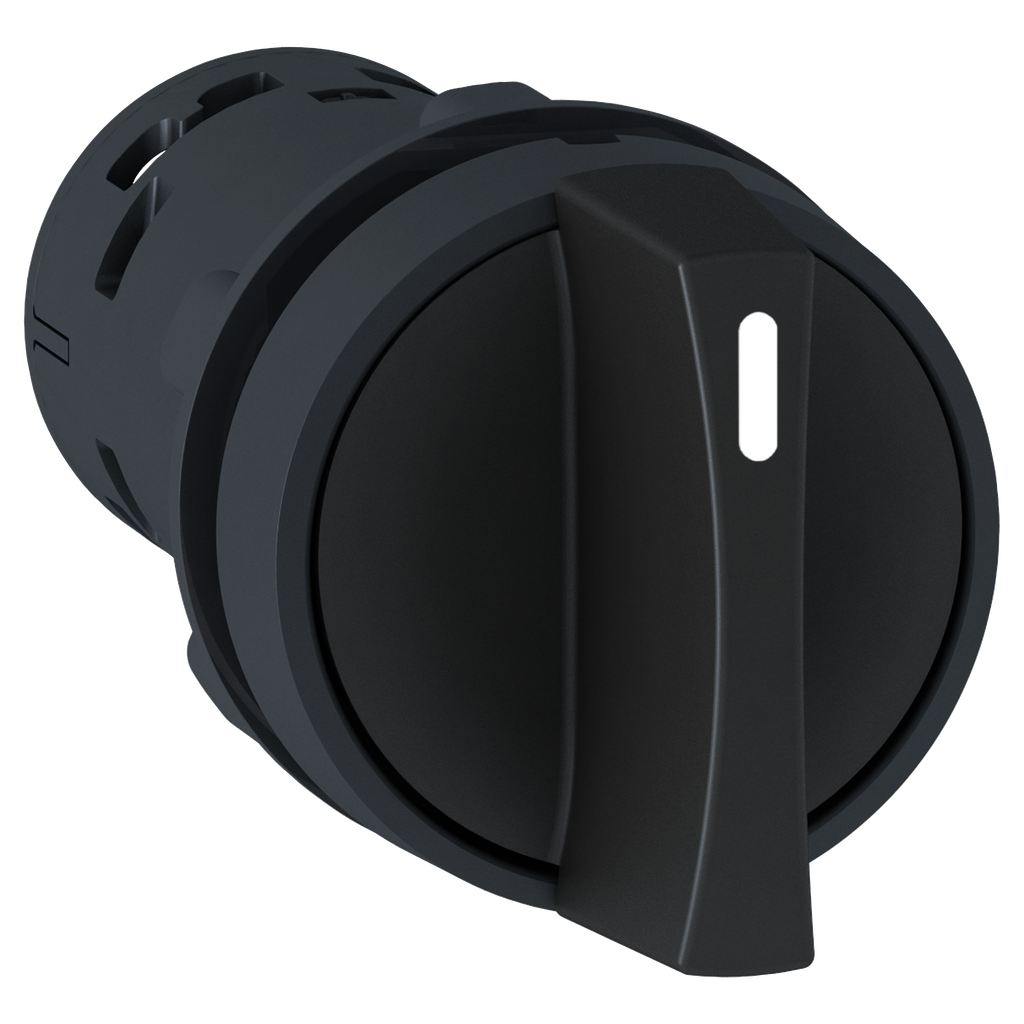

Schneider Electric XB7ND25 Monolithic Selector Switch 22mm Replacement MPN

Product Description

The Schneider Electric XB7ND25 is a monolithic selector switch designed for control circuits. It features two positions and operates using a stay-put mechanism. The device connects easily through screw clamp terminals. It fits in standard twenty-two millimeter cut-outs.

• Impact resistant and waterproof with IP65 rating
• Operating temperature range: negative twenty-five to seventy degrees Celsius
• Easy installation with screw-clamp connections

Product Highlights

This selector switch is ideal for providing multiple inputs for machines in various environments.

Product Information

Standard Information

• Manufacturer: Schneider Electric
• Brand: Schneider Electric

Technical Specifications

• Catalog Number: XB7ND25
• Type: Monolithic Selector Switch
• Width: 29 mm
• Height: 29 mm
• Weight: 0.06 lb
• Action: Slow-Break
• Amperage: 0.1 Amp at 250 Volts
• Operating Temperature: -25 to 70 degrees Celsius
• Contact Configuration: 1 NO + 1 NC
• Warranty Length: 18 months
• Country of Origin: Indonesia
