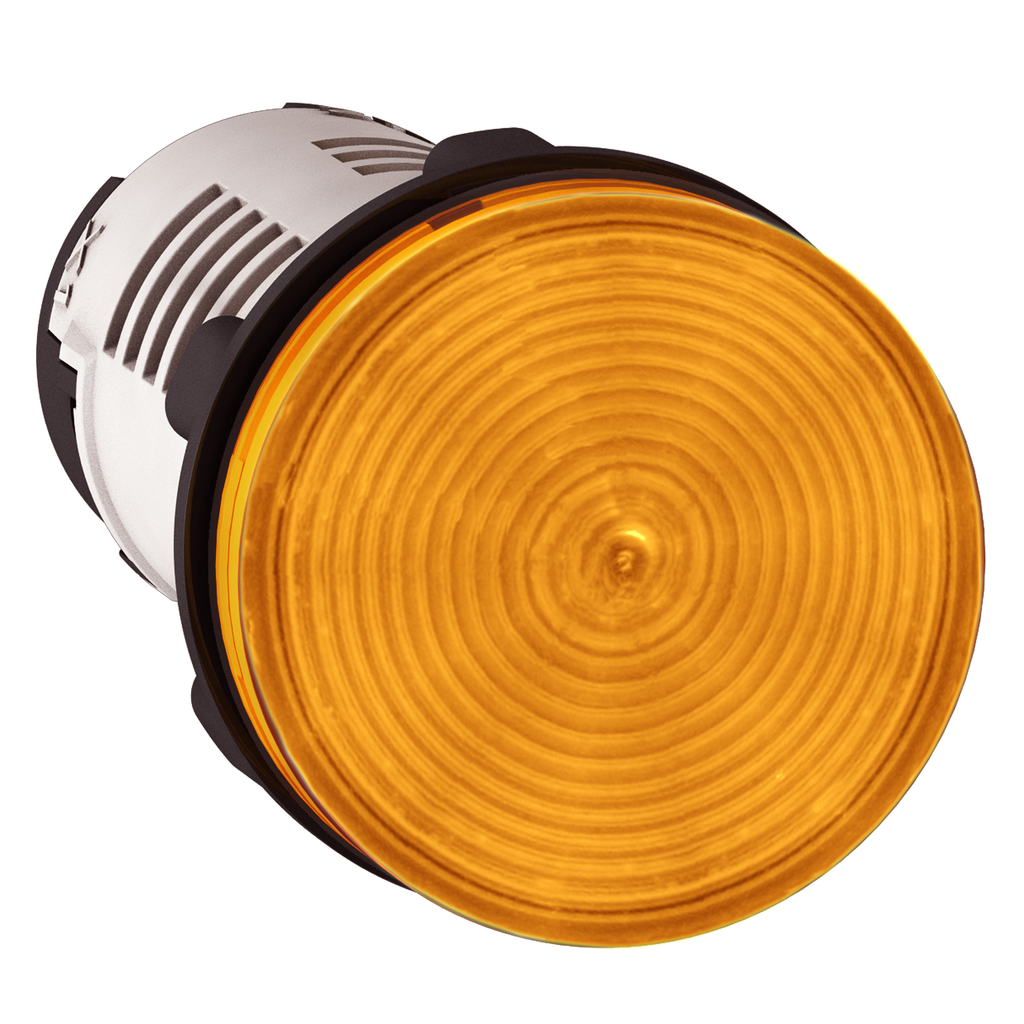

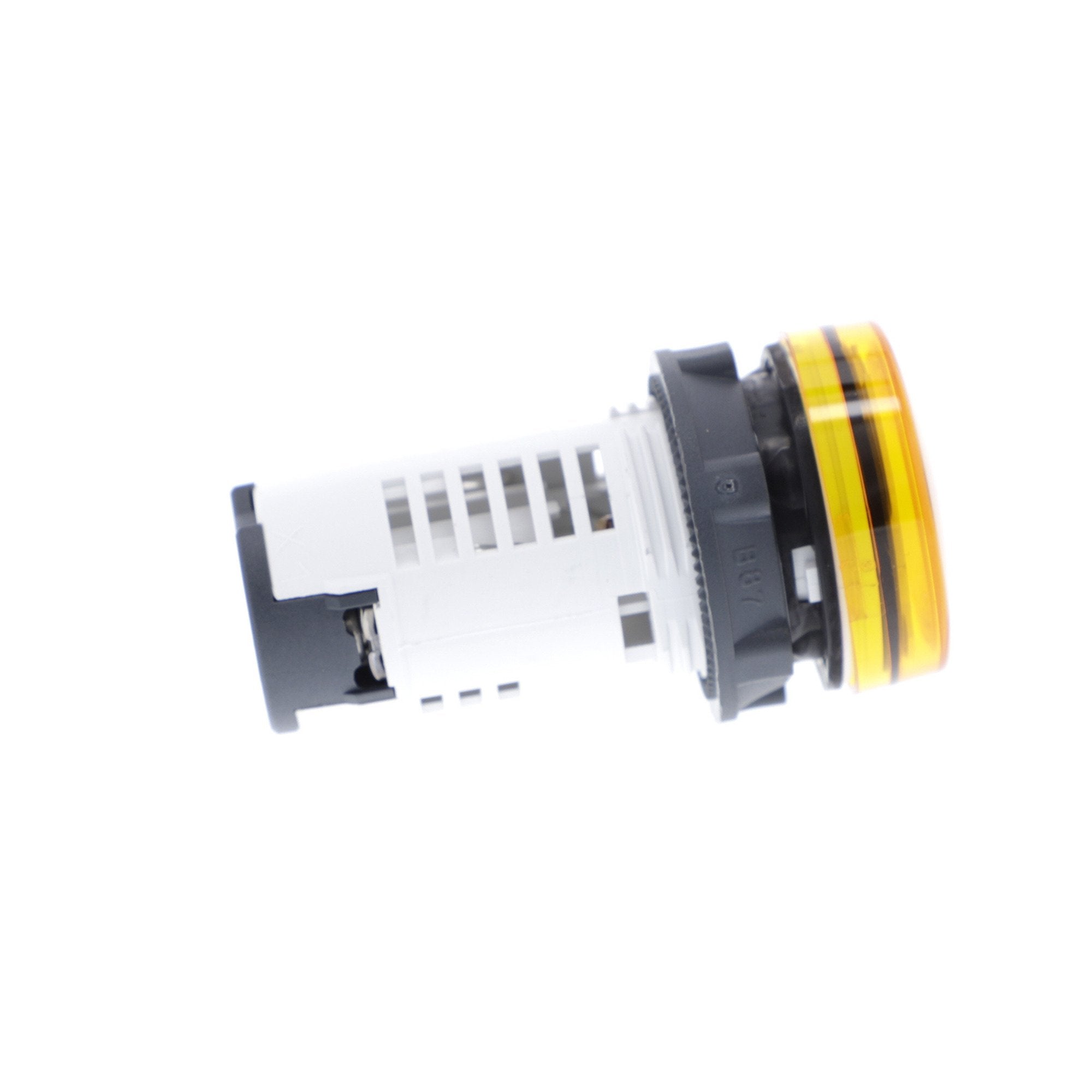

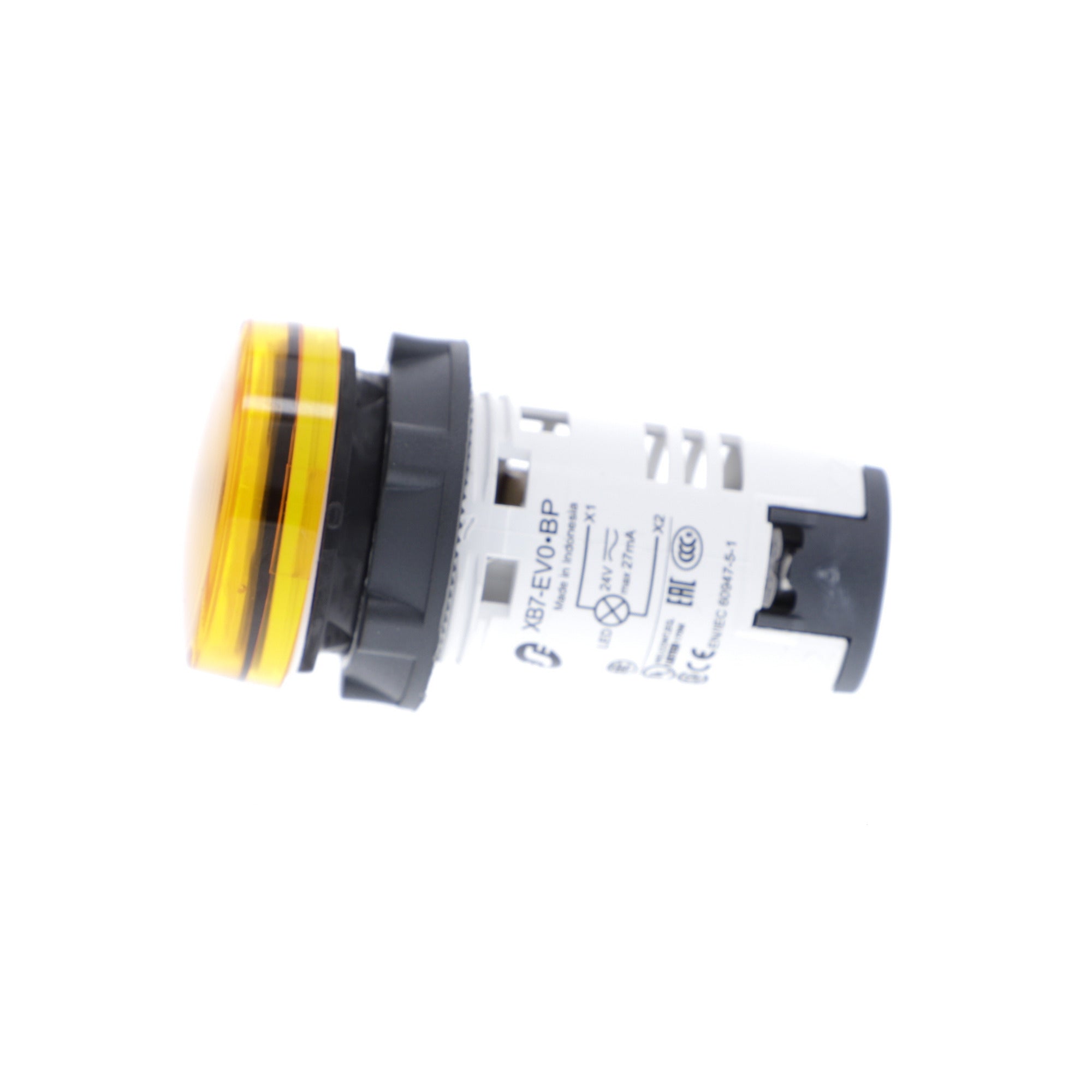

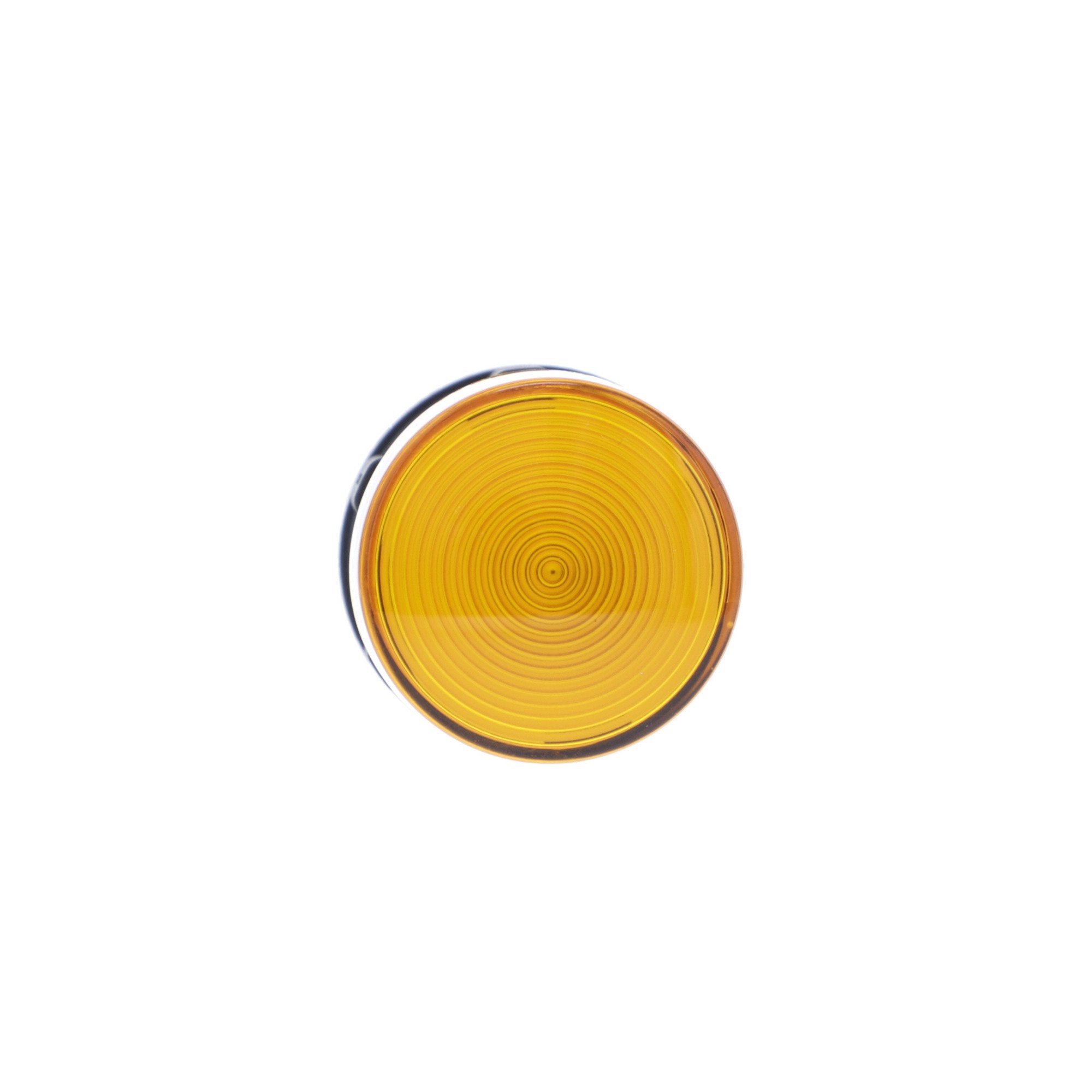

Schneider Electric XB7EV08BP Monolithic Pilot Light 24V AC DC 22 mm

Product Description

Schneider Electric XB7EV08BP is a monolithic pilot light that operates on 24V AC/DC. It features an integral LED and screw clamp terminals for ease of installation. This product fits in standard 22 mm diameter cut-outs. The light is easily visible due to the clarity of colors and LED illumination. It is designed to indicate complex machine statuses at a glance, making it highly effective for industrial applications.

• Resistant to impact, dust, water, and vibrations (IP65 rated)
• Wide operating temperature range from minus twenty-five degrees Celsius to seventy degrees Celsius
• Simple screw-clamp connections for easy installation

Product Highlights

This pilot light is suitable for harsh environments, ensuring performance where conditions can be challenging.

Product Information

Standard Information

• Brand: Schneider Electric
• Catalog Number: XB7EV08BP

Technical Specifications

• Type: Pilot Light
• Color: Orange
• Depth: 54 mm
• Width: 29 mm
• Height: 29 mm
• Weight: 0.04 lb
• Current: 20-27 mA
• Voltage: 24 Volt AC/DC 50/60 Hz
• Standards: CSA C22.2 No 14, UL 508, IEC 60947-1, IEC 60947-5-1
• Warranty Length: 18 months
• Country of Origin: Indonesia
