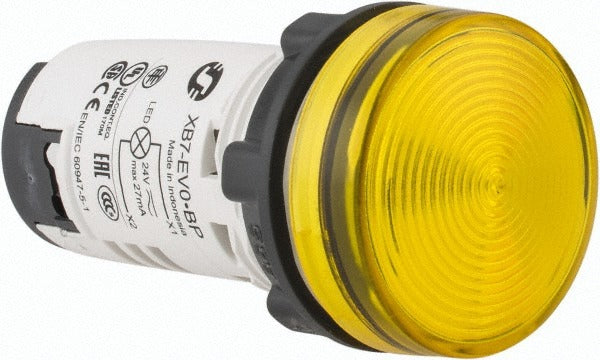

Schneider Electric XB7EV05BP Led Pilot Light 24V Yellow

Product Description

The SCHNEIDER ELECTRIC XB7EV05BP is a 24-volt LED pilot light designed for panel-mount status indication in industrial and commercial control applications. It features a round yellow lens and a screw clamp connector for secure, vibration-resistant wiring. The LED lamp type offers long service life and low power draw compared to traditional incandescent indicators. At 29mm wide, the unit fits standard cutouts used in industrial enclosures and control panels. Licensed electricians and panel builders install this indicator as part of machine control or automation systems requiring clear visual status feedback.

This pilot light is suited for use in control panels, motor control centers, and automation enclosures where a 24-volt indication circuit is present. It is intended for residential, commercial, and industrial applications requiring a NEMA 4/12-rated indicator that can withstand dust and moisture ingress. The screw clamp terminal simplifies field wiring during panel assembly or retrofit work. Its compact form factor makes it a practical choice for dense panel layouts where space is limited.

Key Features

• 24-volt AC/DC LED lamp for long-lasting, low-energy status indication
• Round yellow lens provides clear visual feedback for panel operators
• Screw clamp connector ensures secure, tool-assisted wire termination
• 29mm wide body fits standard industrial panel cutouts
• NEMA 4/12 rated for dust-tight and splash-resistant enclosure use
• Meets CSA, UL 508, EN/IEC 60947-1, EN/IEC 60947-5-1, and JIS C 4520 standards

Compatibility

Designed as an OEM-style replacement or new-install pilot light for 24-volt control circuits in industrial enclosures and control panels requiring a 29mm round-lens indicator with screw clamp termination.

Installation Notes

Installation should be performed by a qualified electrician in accordance with NEC guidelines and local electrical codes. De-energize the control panel and verify zero voltage at the circuit before beginning any wiring work. Use the screw clamp connector with an appropriate screwdriver to achieve a secure wire termination — avoid over-tightening to prevent terminal damage. Confirm the supply voltage matches the 24-volt rating of the indicator before energizing the circuit.
