Schneider Electric XB7EV04GP Red Pilot Light 120 VAC 14 mA Replacement MPN

Product Description

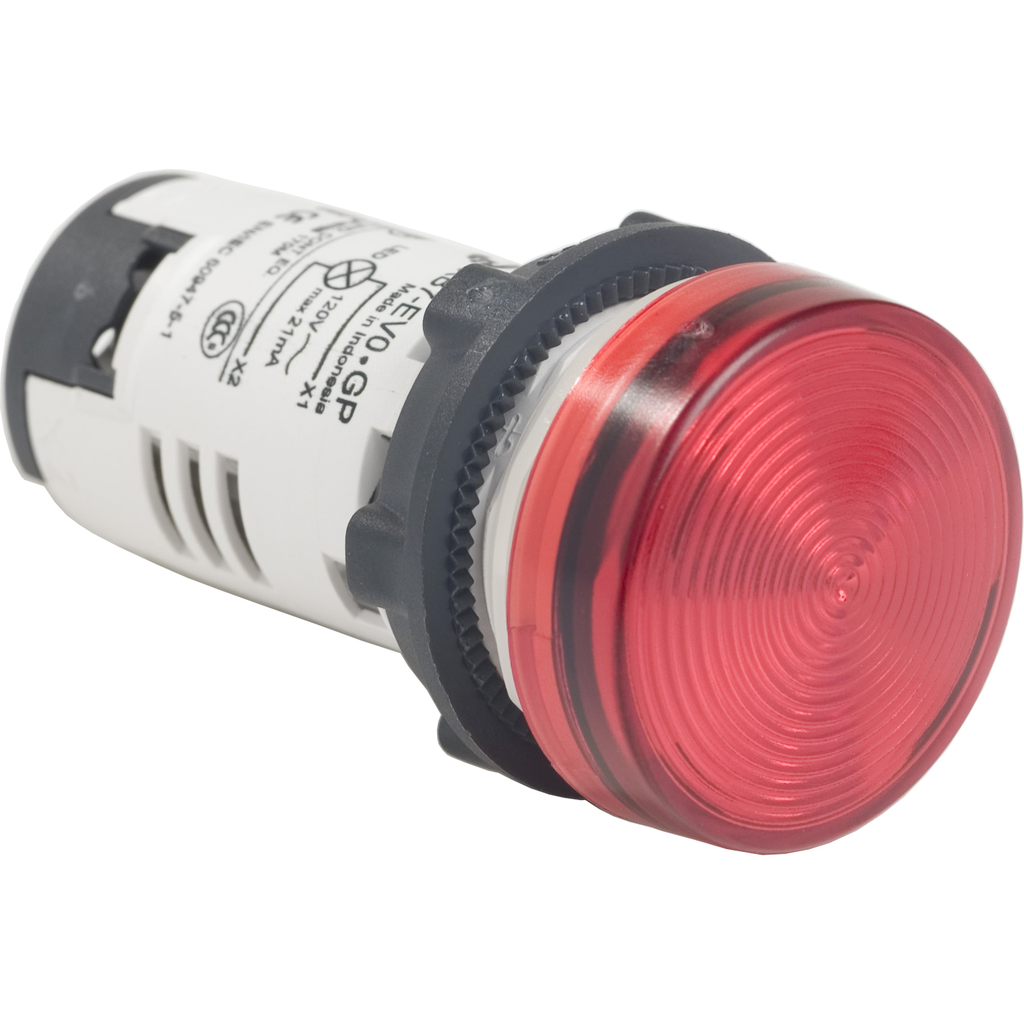

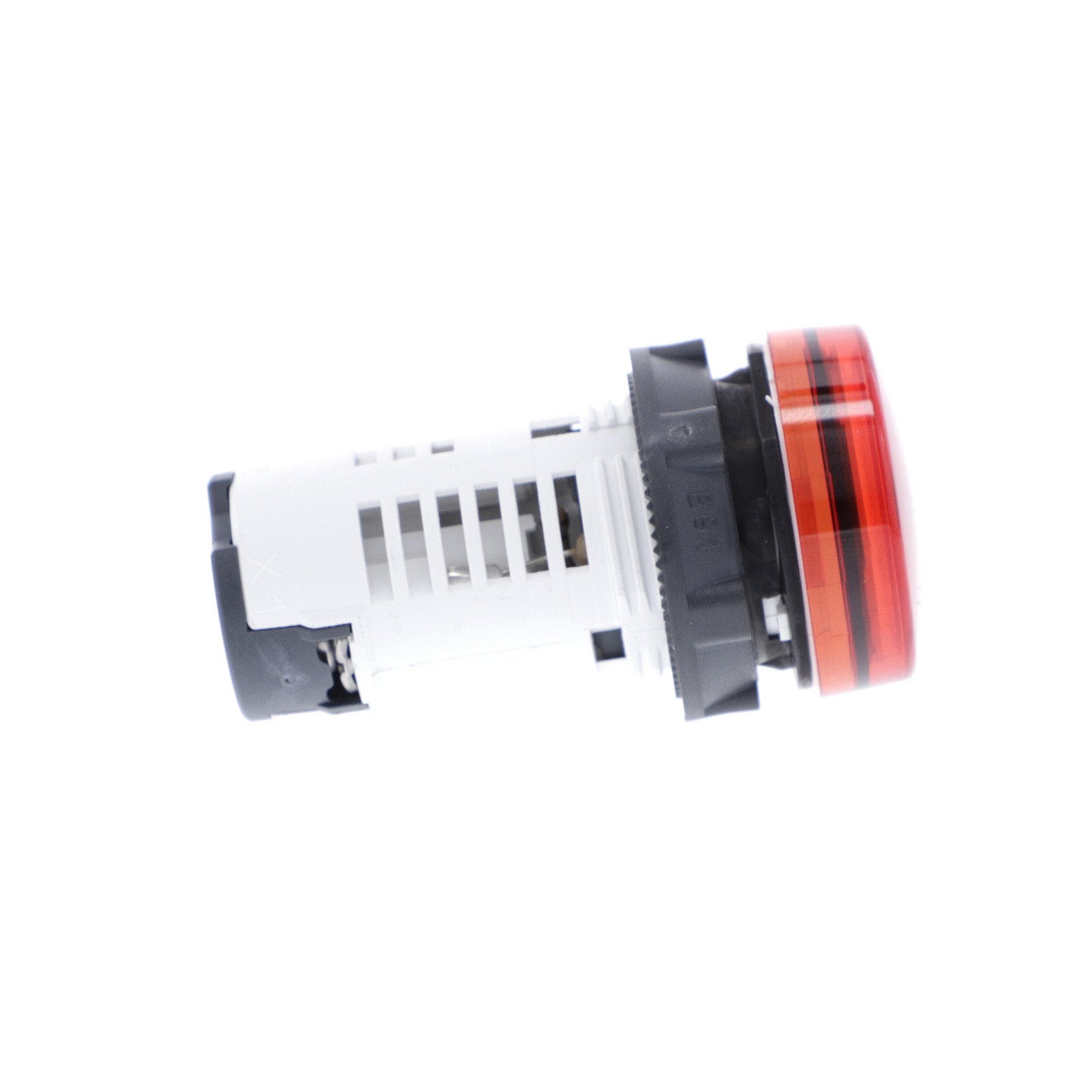

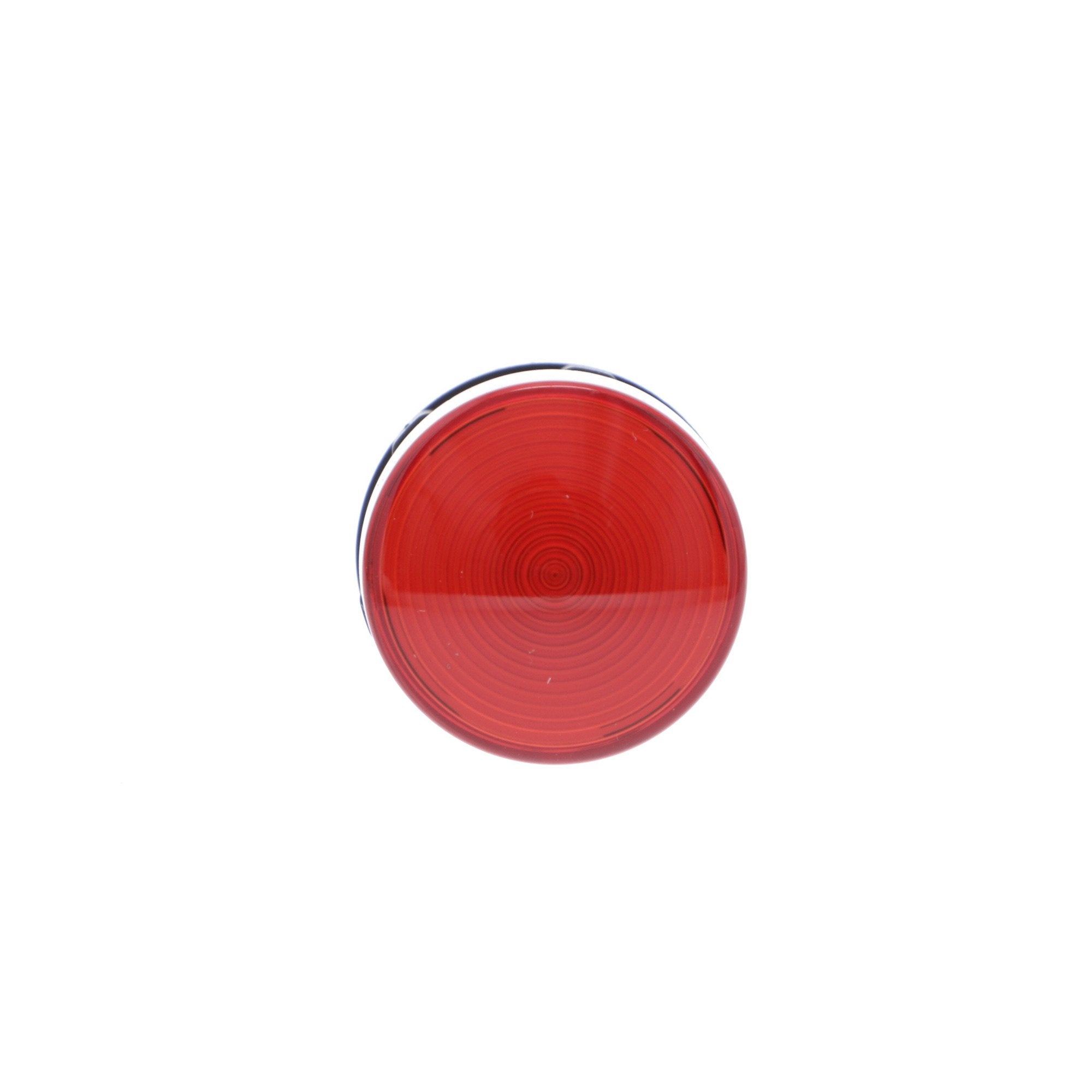

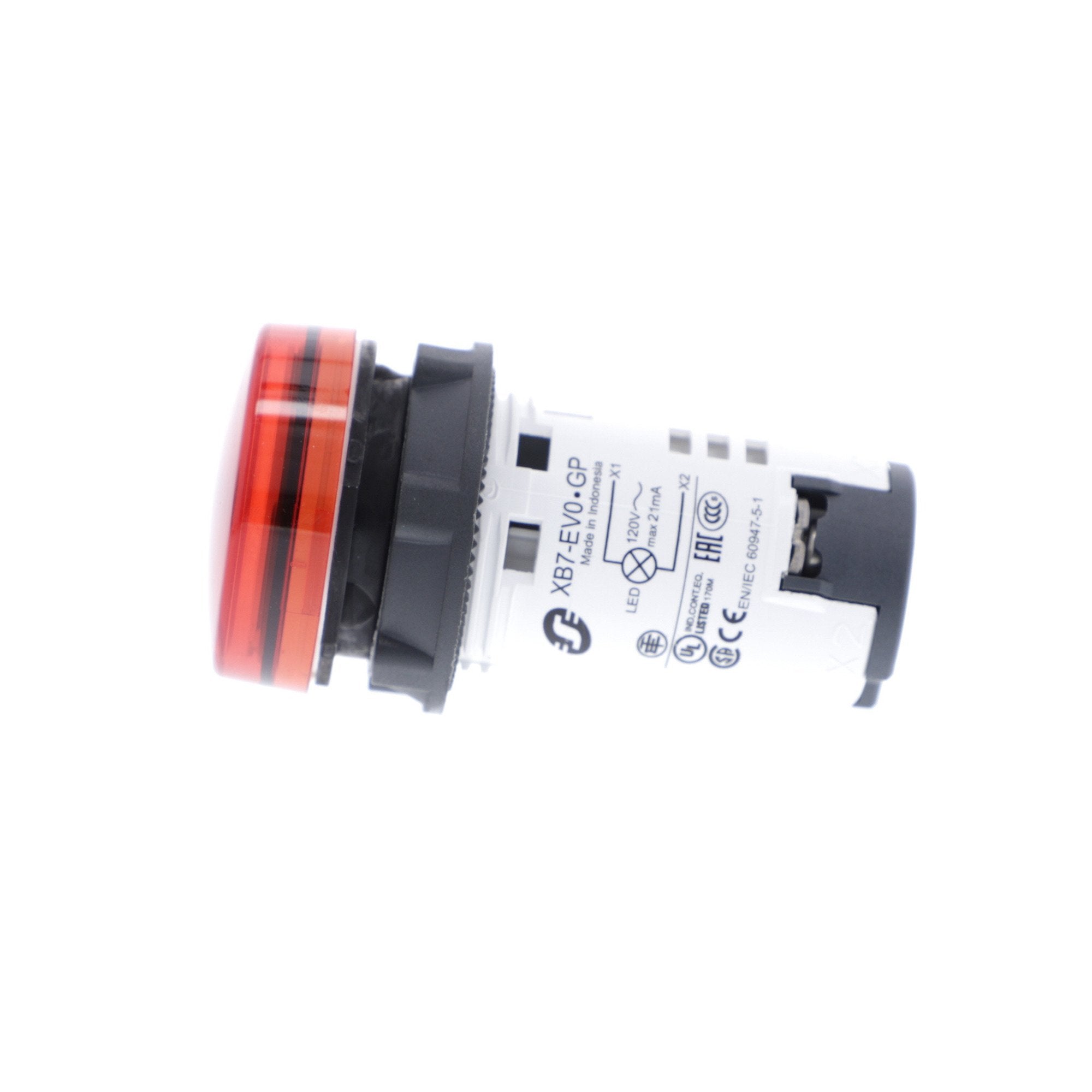

The Schneider Electric XB7EV04GP is a red pilot light designed for various control and automation tasks. This pilot light operates at 120 volts AC and features an integral LED for clear illumination. It fits in standard 22 millimeter cut-outs and connects easily through screw-clamp terminals.

• Designed for harsh environments with IP65 rating.
• Offers temperature range from -25 degrees C to 70 degrees C.
• Impact, dust, water, and vibration resistant.

Product Highlights

This pilot light provides a visible indication of machine status, helping operators monitor performance easily.

Product Information

Standard Information

• Manufacturer: Schneider Electric
• Catalog Number: XB7EV04GP

Technical Specifications

• Type: Pilot light
• Color: Red
• Depth: 54 mm
• Width: 29 mm
• Height: 29 mm
• Weight: 0.04 lb
• Current: 18-21 mA
• Voltage: 120 Volt AC 50/60 HZ
• Standard: CSA C22.2 No 14, IEC 60947-1
• Enclosure: NEMA 4
• Indicator: LED, Integral LED
• Country of Origin: Indonesia
