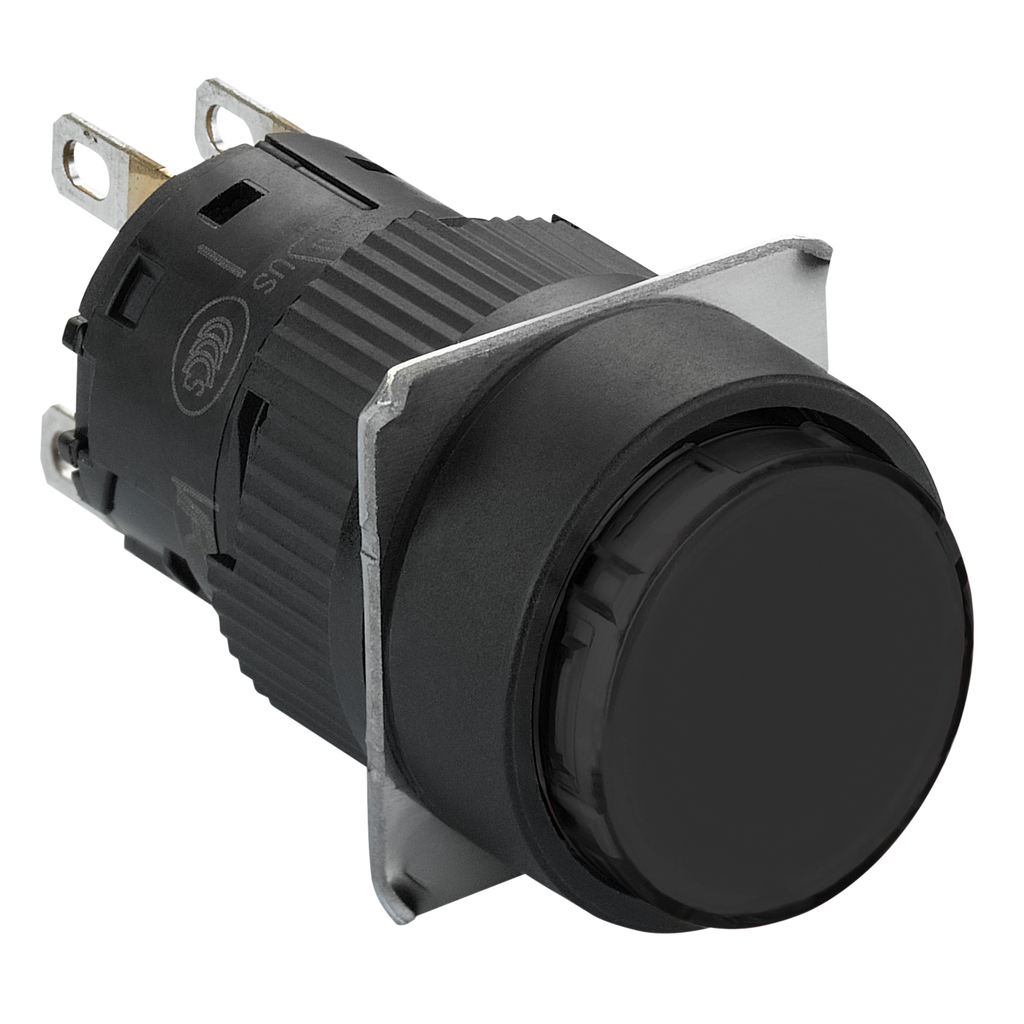

Schneider Electric XB6EAA21P SQUARED XB6EAA21P Monolithic Push Button 16mm

Product Description

Schneider Electric XB6EAA21P is a monolithic push button designed for various control applications. This device is part of the Harmony XB6E series. It features a round black flush design with a diameter of sixteen millimeters and spring return action. The button operates with one normally open contact (1CO), making it suitable for simple control tasks.

• Push button type: Monolithic
• Operation: Spring return
• Contact configuration: 1CO

Product Highlights

This push button is ideal for panel mounting and provides a robust solution for many automation control interfaces.

Product Information

Standard Information

• Catalog Number: XB6EAA21P
• Brand: Schneider Electric

Technical Specifications

• Manufacturer: Schneider Electric
• Standard Certifications: CSA C22.2 No 14, IEC 60947-1, IEC 60947-5-1, JIS C 4520, JIS C 852, UL 508
• Net Weight: 0.006 kg
• Contact Material: Gold-flashed Silver
• Warranty Length: 18 months
• Country of Origin: China
• Storage Temperature: -40 to 70 degrees C
