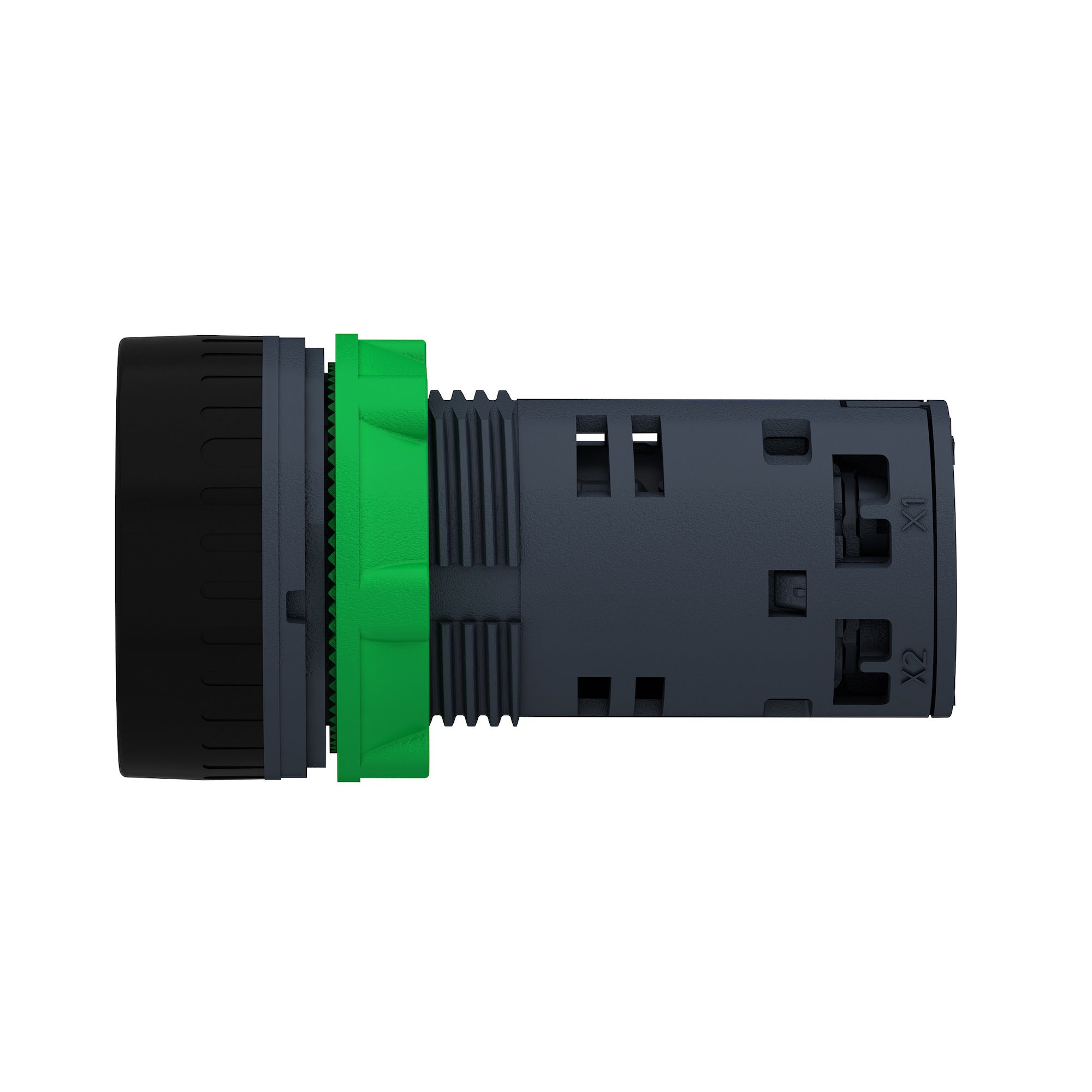

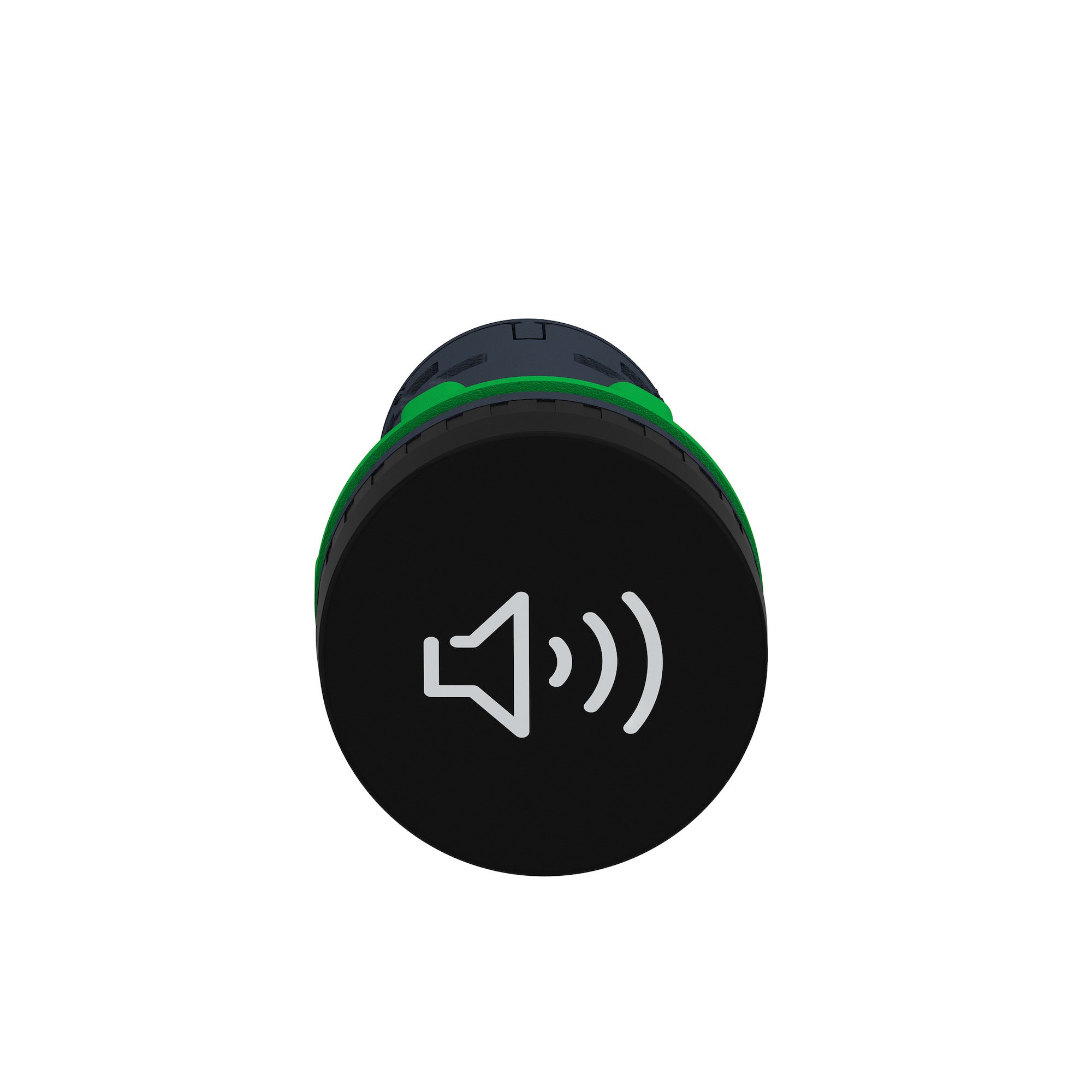

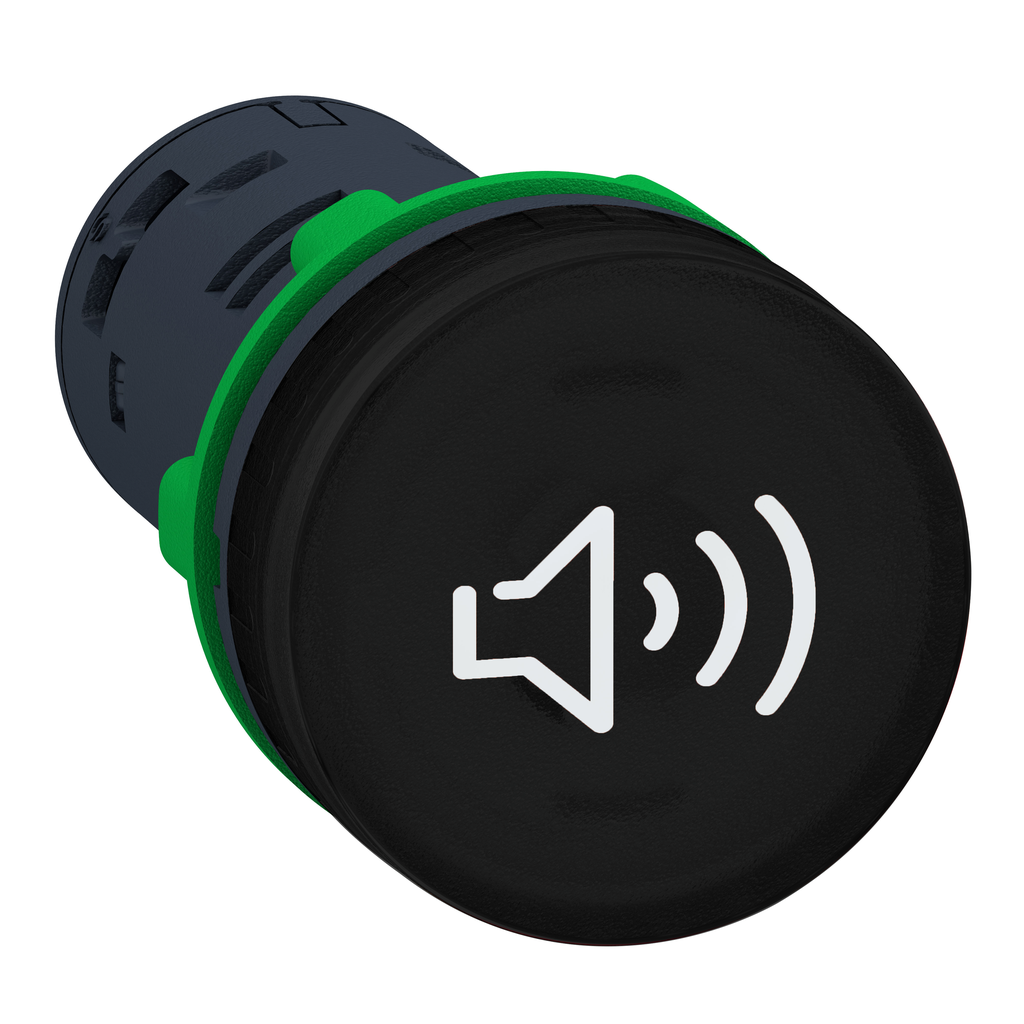

Schneider Electric XB5KSB Square D 24 VAC/VDC 85 dB Push Button Hour Buzzer

Product Description

The Schneider Electric XB5KSB is a 24VAC/VDC buzzer designed for signaling alarms in various automation applications. It operates at a noise level of eighty-five decibels, providing an effective auditory signal. It is suitable for installation in standard cut-outs measuring twenty-two millimeters in diameter. The product features an IP40 rating, meaning it offers limited protection against the ingress of solid objects.

• Model: XB5KSB
• Operating Voltage: 24VAC/VDC
• Noise Level: 85 dB

Product Highlights

The XB5KSB buzzer is ideal for environments where audible alerts are necessary, such as in machinery control panels and other automation controls.

Product Information

Standard Information

• Manufacturer: Schneider Electric
• Catalog Number: XB5KSB

Technical Specifications

• Dimensions: Two point seventeen inches x one point fourteen inches x one point fourteen inches
• Weight: Zero point zero five pounds
• Current Draw: Twenty-eight mA
• Enclosure Rating: NEMA 1/2/3/4/4X/12/13 IP65
• Certifications: BV, CSA, UL Listed
• Country of Origin: Germany
• Storage Temperature: Negative forty to seventy degrees Celsius
• Operating Temperature: Negative forty to seventy degrees Celsius
