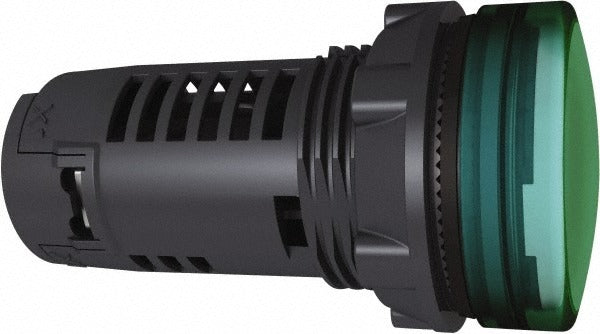

Schneider Electric XB5EVG3 Led Pilot Light 120V Green

Product Description

The SCHNEIDER ELECTRIC XB5EVG3 is a 120-volt LED pilot light with a green lens, designed for use in industrial and commercial control panel applications. It provides a clear visual indication of circuit status or equipment operating condition. The LED lamp type offers long service life and low power draw compared to traditional incandescent indicator lights. At 0.066 pounds and a compact form factor, it installs cleanly into standard 22mm panel cutouts. Electricians and panel builders use this indicator light during new panel builds and service replacement work.

This pilot light is suited for use in motor control centers, machine control panels, and general-purpose electrical enclosures operating on 120-volt AC circuits. The green lens color is conventionally used to indicate a run, on, or normal operating state in control panel wiring practice. Its compact dimensions make it a practical fit in tight panel layouts where space is limited.

Key Features

• 120-volt rated LED lamp for long service life and low energy draw
• Green lens for standard run or normal-status indication
• Compact body measuring 2.11 inches in height and 1.14 inches in width and depth
• Lightweight at 0.066 pounds for easy panel mounting
• Single-unit packaging suitable for replacement or new installation

Compatibility

Designed as an OEM-style replacement or new-installation pilot light for 120-volt AC control panels using standard 22mm indicator light cutouts.

Installation Notes

Installation should be performed by a licensed electrician in accordance with applicable NEC requirements. De-energize and lock out the panel before installing or replacing any pilot light. Verify that the supply voltage matches the 120-volt rating of this device before energizing. Confirm the panel cutout dimensions are compatible before mounting.
