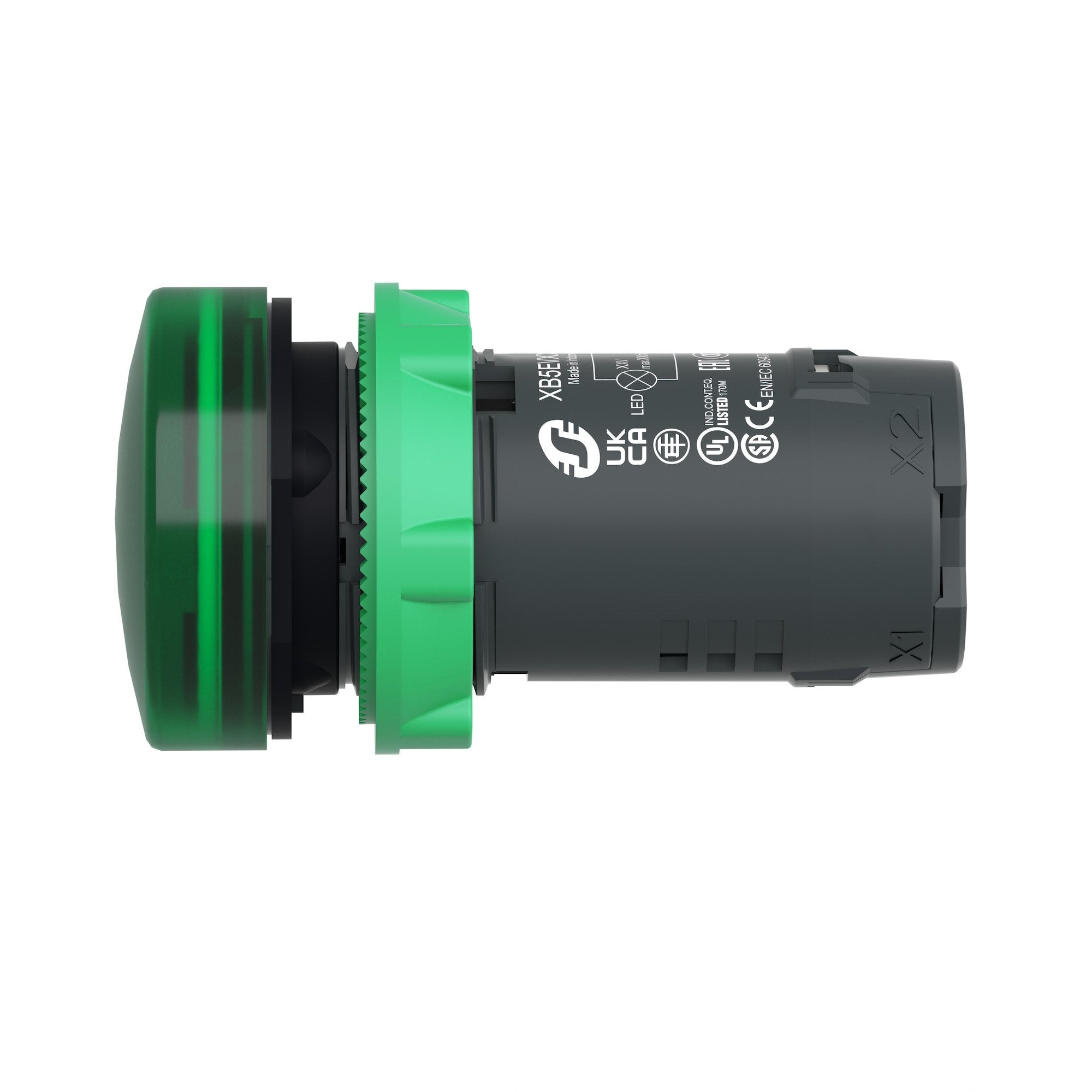

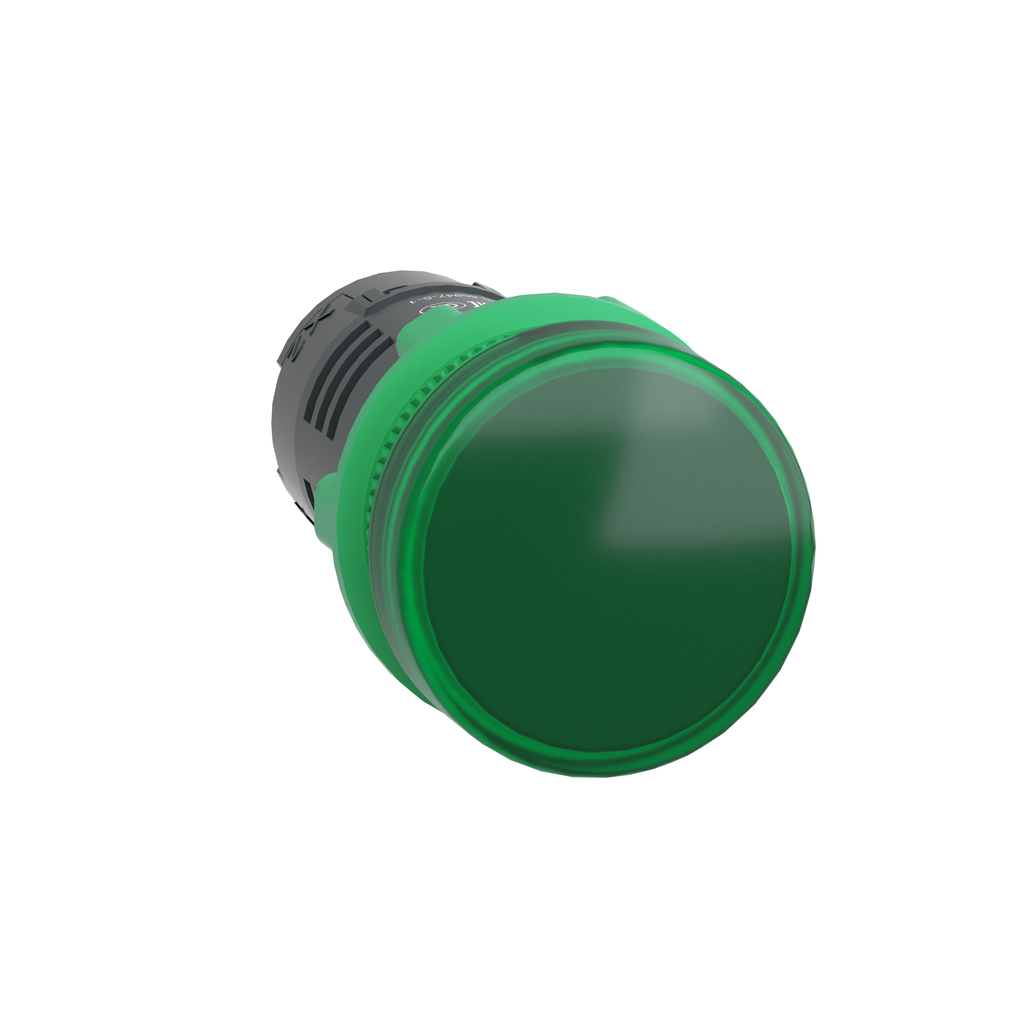

Schneider Electric XB5EVB3 Monolithic Pilot Light 24V AC/DC 22mm

Product Description

Schneider Electric XB5EVB3 is a monolithic green pilot light designed for control and automation applications. It operates on 24 Volt AC/DC and features a universal LED for effective visual feedback on machine status. This pilot light is suitable for installation in standard 22mm cut-outs and connects easily with screw-clamp terminals.

The clear illumination allows operators to quickly assess machine status from a distance. It is designed to withstand harsh environments with its IP66 to IP69K rating, ensuring protection against dust, water, and vibration. The plastic bezel also offers resistance to various chemicals, enhancing its durability for industrial use.

• Powered by 24V AC/DC with universal LED
• Easily mounts in standard 22mm cut-outs
• IP66/IP67/IP68 rated for harsh conditions

Product Highlights

This pilot light provides clear visual status indications and is built to withstand extreme conditions.

Product Information

Standard Information

• Catalog Number: XB5EVB3
• Brand: Schneider Electric

Technical Specifications

• Type: Pilot light
• Voltage: 24 Volt AC/DC
• Current: 18 mA
• Size: 2.13 inches
• Width: 29 mm
• Height: 29 mm
• Depth: 54 mm
• Weight: 0.08 lb
