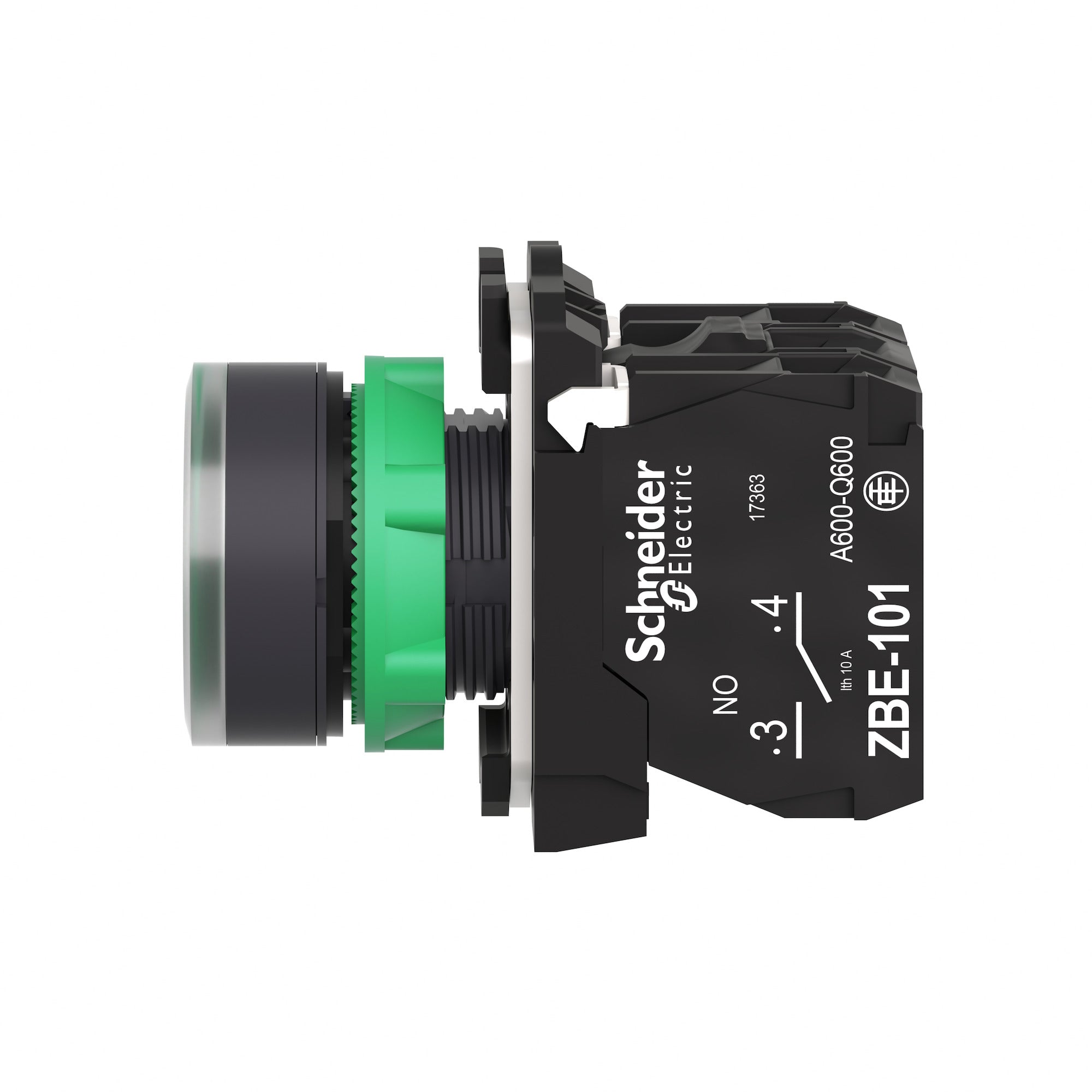

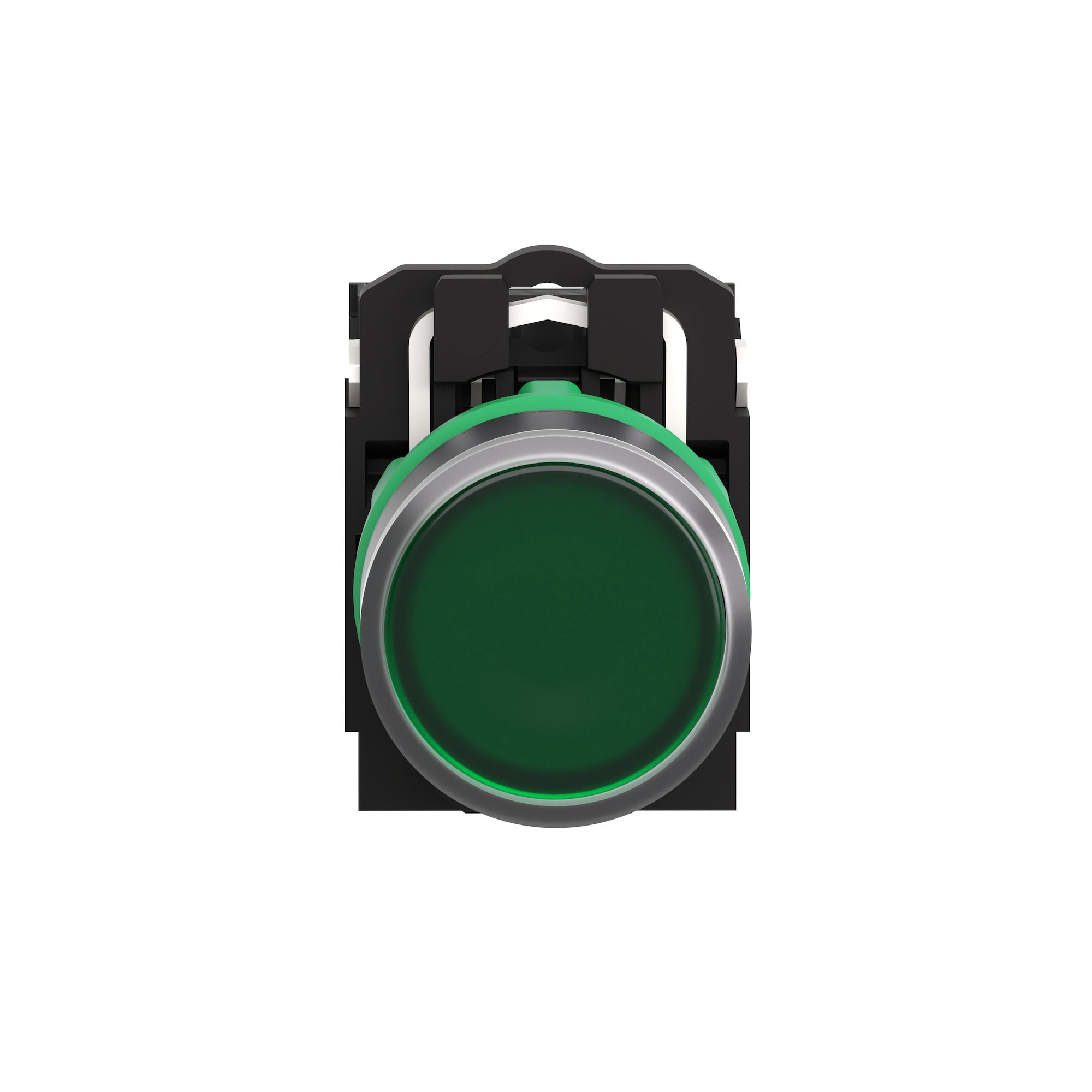

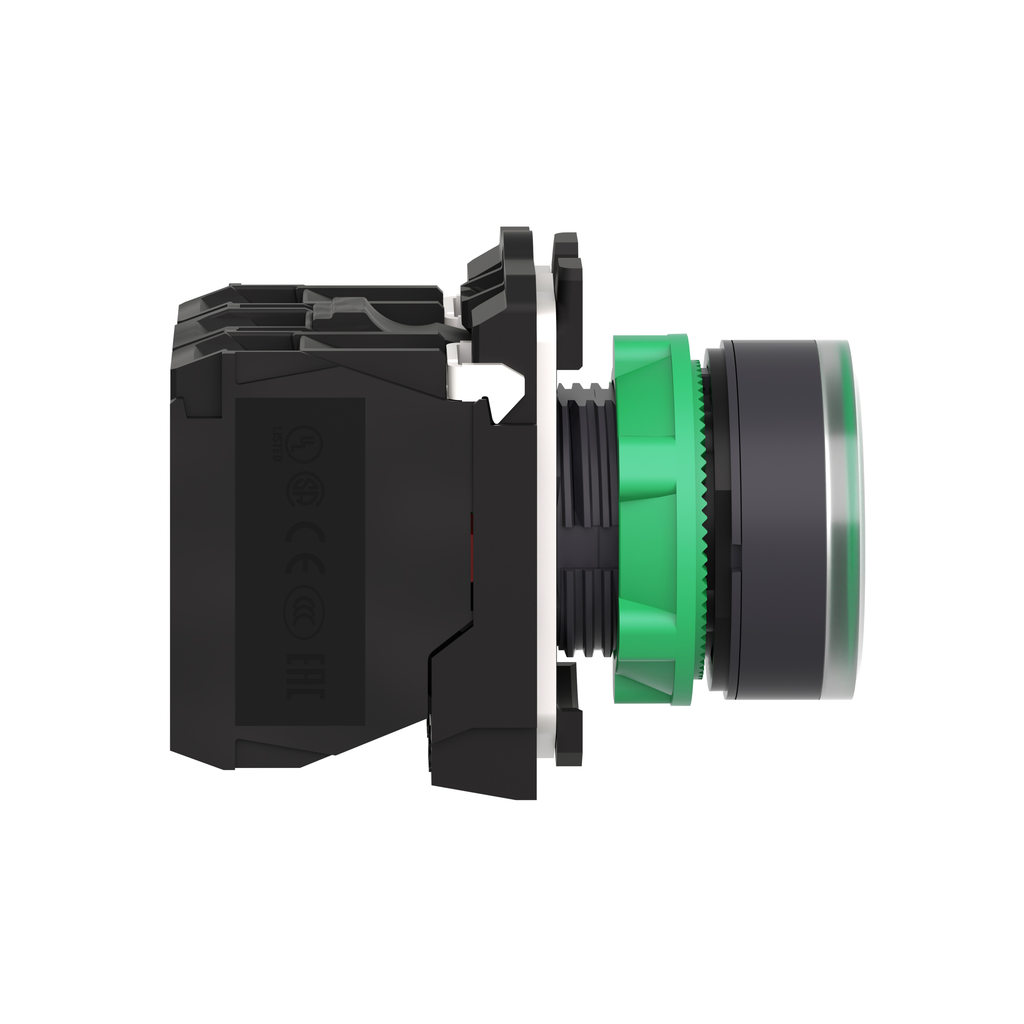

Schneider Electric XB5AW33G5 Square D 22 mm 120 Volt 14 mA 1NO 1NC Green Round Momentary Flush Illuminated Push Button

Product Description

The Schneider Electric XB5AW33G5 is an illuminated modular green push button designed for use in various control applications. This push button operates with a spring return mechanism and is powered by 110 to 120 volts AC while drawing a current of 14 mA. It is easy to install into standard 22 mm cut-outs and connects to control circuits via screw clamp terminals.

• Easily visible due to bright LED illumination
• Impact, dust, water, and vibration resistant with an IP66/IP67/IP69/IP69K rating
• Suitable for harsh environments thanks to its sturdy plastic bezel

Product Highlights

The XB5AW33G5 push button provides an ergonomic interface for controlling machinery. It offers high visibility with its long-lasting LED illumination, making it ideal for both indoor and outdoor applications.

Product Information

Standard Information

• Catalog Number: XB5AW33G5
• Brand: Schneider Electric

Technical Specifications

• Type: Illuminated push-button
• Current Rating: 14 mA
• Voltage: 110 to 120 volts
• Actuator Type: Green flush, unmarked, spring return
• Width: 1.18 inches
• Depth: 2.24 inches
• Height: 1.65 inches
• Enclosure Rating: NEMA 4/4X/13
• Operating Temperature: -40 to 70 degrees C
• Warranty Length: 18 months
• Country of Origin: France
