Schneider Electric XB5AW31G5 Push-button Switch 22mm

Product Description

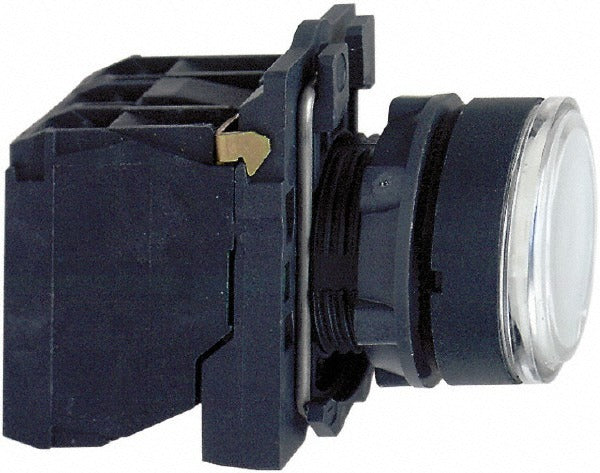

The SCHNEIDER ELECTRIC XB5AW31G5 is an illuminated, momentary push-button switch designed for industrial and commercial control panel applications. It features a 22 mm mounting hole diameter, a flush-mount round white plastic operator, and LED illumination for clear visual status indication. The switch provides both normally closed (NC) and normally open (NO) contact configurations, giving electricians and panel builders flexible wiring options in a single unit. Screw terminals simplify field wiring connections. This switch is rated NEMA 4X and NEMA 13, meaning it is suitable for wet, dusty, and corrosive environments.

The XB5AW31G5 is suited for use in industrial control panels, machine tool enclosures, and process control equipment. It is installed by licensed electricians and panel builders working on operator interface stations, motor control circuits, and general-purpose machine controls. The NEMA 4X rating makes it appropriate for washdown or outdoor enclosure applications. Its momentary operation means the circuit activates only while the button is depressed, which is a common requirement for start, jog, and reset functions in control systems.

Key Features

• 22 mm mounting hole diameter — fits standard 22 mm panel cutouts
• Momentary (MO) operation with NC/NO contact configuration
• LED illumination for operator status visibility
• Flush, round white plastic operator
• Screw terminal connections for reliable field wiring
• NEMA 4X and NEMA 13 rated for wet and corrosive environments

Compatibility

Designed as an OEM-style replacement or new-installation push-button switch for 22 mm control panel cutouts in industrial and commercial enclosures meeting NEMA 4X or NEMA 13 requirements.

Installation Notes

Installation should be performed by a licensed electrician in accordance with NEC Article 430 and applicable local codes. De-energize and lock out the control panel before mounting or wiring this switch. Screw terminals should be tightened to the terminal manufacturer specification using an appropriate flat-blade screwdriver. Verify LED lamp voltage compatibility with the control circuit before energizing.
