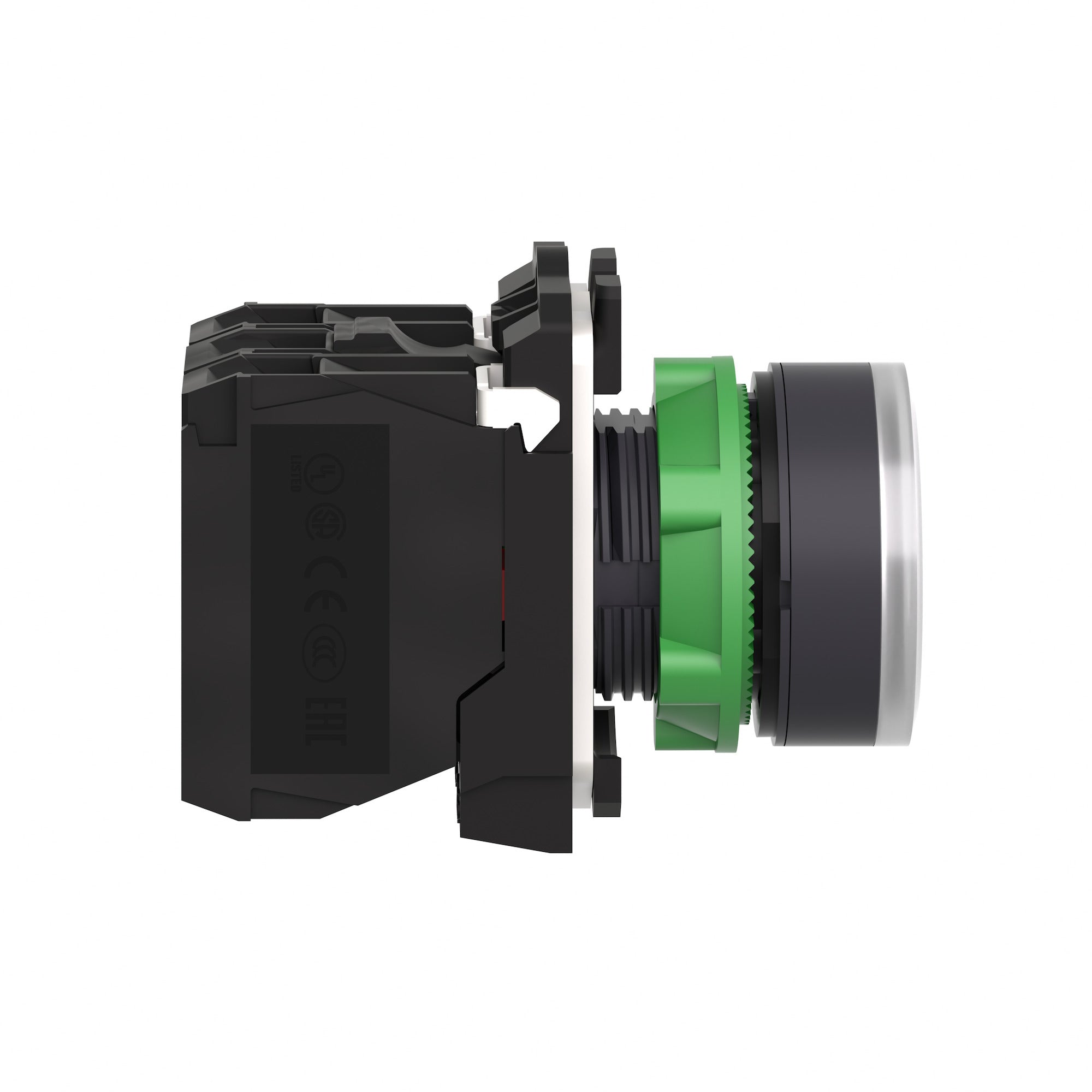

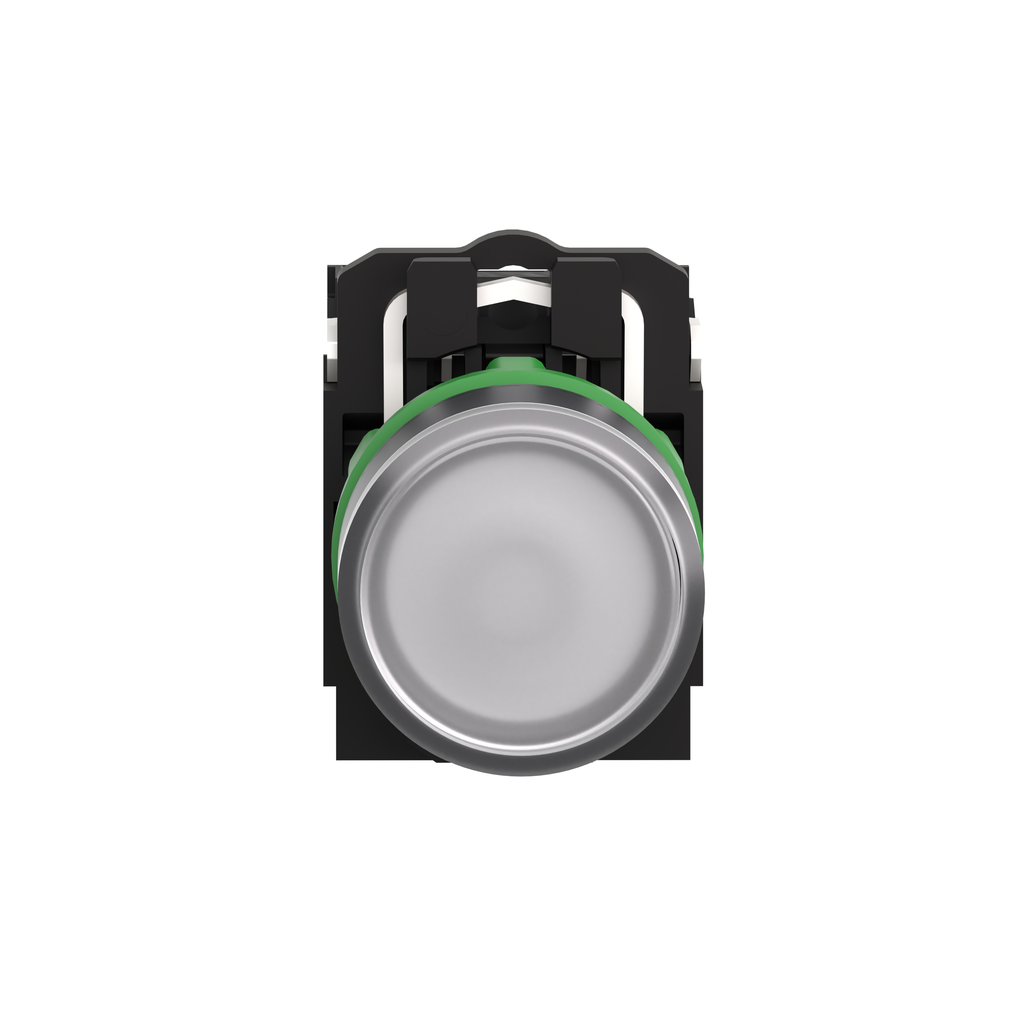

Schneider Electric XB5AW31B5 Square D 22 mm 24 VAC/VDC 18 mA 1NO 1NC White Round Momentary Flush Illuminated Push Button

Product Description

The Schneider Electric XB5AW31B5 is a 22 millimeter illuminated push button designed for control applications. This button operates at a voltage of 24 volts AC/DC with a current rating of eighteen milliamps. It features a spring return mechanism and integrates a universal LED for visibility. Installation is simple with standard 22 millimeter panel cut-outs and screw clamp terminals for wiring. The bright LED illumination ensures it is clearly visible from a distance.

• Universal LED provides clear visibility.
• Impact, dust, and water resistant.
• Rated for harsh environments with IP66/IP67 protection.

Product Highlights

This push button is suitable for use in various industrial operations where reliable performance is required.

Product Information

Standard Information

• Brand: Schneider Electric
• Manufacturer: Square-D / Schneider

Technical Specifications

• Catalog Number: XB5AW31B5
• Voltage: 24 Volt AC/DC
• Current: 18 mA
• Action: Slow-break
• Contact Configuration: 1 NO + 1 NC
• Height: 42 mm
• Width: 30 mm
• Depth: 57 mm
• Weight: 0.12 lb
• IP Rating: IP66/IP67/IP69K
