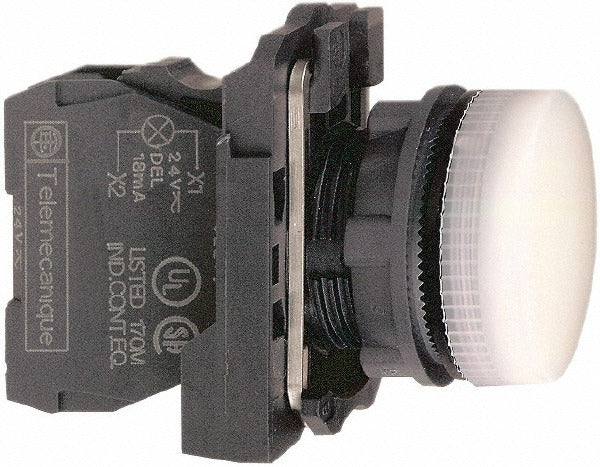

Schneider Electric XB5AVB1 Led Pilot Light 24V White 30mm

Product Description

The SCHNEIDER ELECTRIC XB5AVB1 is a 30mm LED pilot light designed for use in industrial control panels and machine operator interfaces. It operates at 24 volts AC or DC at 50/60 Hz and features a white round lens for clear, energy-efficient status indication. The unit uses a screw clamp connector for secure wiring termination. Built to handle demanding environments, it carries vibration-resistant and water-resistant construction, making it suitable for applications where panel durability is a priority. Licensed electricians and control panel builders are the primary installers of this device.

This pilot light is intended for use in industrial and commercial control panel assemblies where a 30mm cutout format is standard. It is suited for machine control stations, motor control centers, and similar hardwired panel applications requiring reliable visual indication at 24-volt control voltages. The white lens provides a neutral indication color adaptable to various status-signaling conventions. Its compact form factor and screw clamp termination simplify integration into new panel builds and retrofit projects.

Key Features

• LED lamp type for long service life and low power draw
• Operates at 24 volts AC or DC, 50/60 Hz
• 30mm wide round white lens for clear visual indication
• Screw clamp connector for reliable, tool-assisted wiring termination
• Vibration-resistant and water-resistant construction
• Meets multiple standards including UL 508, NEMA 4X, CSA C22.2 No. 14, and EN/IEC 60947-5-1

Compatibility

Designed as an OEM-style pilot light for 30mm control panel cutouts requiring a 24-volt AC or DC LED indicator with screw clamp termination.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the NEC and applicable local codes. De-energize the control panel and verify zero voltage at the terminal block before wiring the device. Use the screw clamp connector with an appropriate screwdriver to achieve a secure termination without over-tightening. Confirm the supply voltage matches the 24-volt AC or DC rating before applying power.
