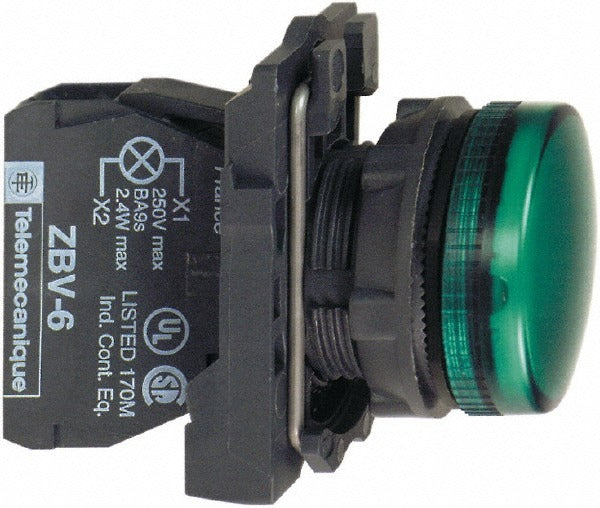

Schneider Electric XB5AV63 Led Pilot Light 250V Green 30mm

Product Description

The SCHNEIDER ELECTRIC XB5AV63 is a 250-volt green LED pilot light designed for industrial control panel and machine indicator applications. Featuring a round lens and screw clamp connector, this 30mm pilot light provides a clear visual status indication on control panels, automation equipment, and motor control centers. The LED lamp type offers long service life and low power draw compared to incandescent alternatives. Built to handle demanding environments, the XB5AV63 carries ratings for vibration resistance and water resistance, making it a reliable choice for factory floors, outdoor enclosures, and wet or washdown-adjacent locations. Licensed electricians and panel builders are the primary installers.

The XB5AV63 is suited for use in both light industrial and heavy industrial settings where a 30mm panel cutout pilot light is required. The green lens color is the standard convention for indicating a running, energized, or normal-status condition in control panel wiring practice. The screw clamp connector simplifies field wiring without requiring special tooling. Its compact form factor and standard 30mm mounting footprint make it a direct fit for most existing 30mm cutout operator interface assemblies.

Key Features

• 250-volt LED pilot light with green round lens for status indication
• 30mm wide mounting footprint fits standard 30mm panel cutouts
• Screw clamp connector for secure, tool-friendly field wiring
• Vibration resistant and water resistant construction for harsh environments
• NEMA 4X rated — suitable for washdown and outdoor enclosure use
• Meets UL 508, UL Listed, CSA, CSA C22.2 No. 14, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, JIS C 4520 standards

Compatibility

Designed as an OEM-style replacement or new-installation pilot light for industrial control panels and operator interface assemblies requiring a standard 30mm round lens LED indicator.

Installation Notes

Installation should be performed by a qualified electrician in accordance with NEC requirements and local electrical codes. De-energize and lock out the control panel before installing or replacing the pilot light. The screw clamp connector should be tightened securely to prevent loose connections under vibration. Verify that the supply voltage matches the 250-volt rating of the XB5AV63 before energizing the circuit.
