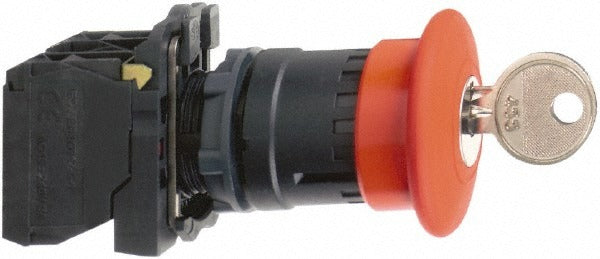

Schneider Electric XB5AS9445 Push-button Switch 22mm

Product Description

The SCHNEIDER ELECTRIC XB5AS9445 is a heavy-duty push-button switch designed for industrial control panel applications. It features a 22 mm mounting hole diameter, a red round mushroom-head actuator in plastic construction, and supports both maintained (MA) and momentary (MO) operation with NC/NO contact configuration. Rated NEMA 4X and 13, the switch provides resistance to dust, oil, and water ingress, making it suitable for demanding environments. Licensed electricians and industrial maintenance technicians install this switch as part of operator interface stations, machine control panels, and emergency-stop circuits. It weighs 0.19 pounds and meets a broad range of international standards including UL 508 and EN/IEC 60947-5-1.

The XB5AS9445 is suited for use in residential and commercial industrial control applications where reliable operator interface is required. Its dual operation mode — maintained and momentary — gives panel builders flexibility when wiring start, stop, or selector functions. The 22 mm form factor is a widely adopted industry standard, allowing this switch to fit into standard 22 mm cutout panels and operator interface enclosures. Compatible system types include machine control panels, motor starters, conveyor systems, and similar industrial automation equipment where screw-terminal push-button switches are specified.

Key Features

• 22 mm mounting hole diameter fits standard industrial panel cutouts
• Supports both maintained (MA) and momentary (MO) operation modes
• NC/NO contact configuration for flexible circuit wiring
• Red round mushroom-head actuator in plastic construction for high visibility
• NEMA 4X and 13 rated for resistance to dust, oil, and water ingress
• Screw terminal connections for secure, reliable field wiring
• Certified to UL 508, CSA, EN/IEC 60947-5-1, EN/ISO 13850, and additional international standards

Compatibility

Designed as an OEM-style replacement push-button switch for industrial control panels and operator interface stations using standard 22 mm mounting hole cutouts.

Installation Notes

Installation should be performed by a licensed electrician in accordance with NEC requirements and applicable local codes. De-energize and lock out the control panel before removing or installing any push-button switch. Screw terminals should be tightened to the panel manufacturer's specified torque range using an appropriate screwdriver. Verify contact configuration (NC/NO) against the circuit diagram before commissioning.
