Schneider Electric XB5AS8442 Emergency Stop Switching Off 40mm Mushroom 1NC

Product Description

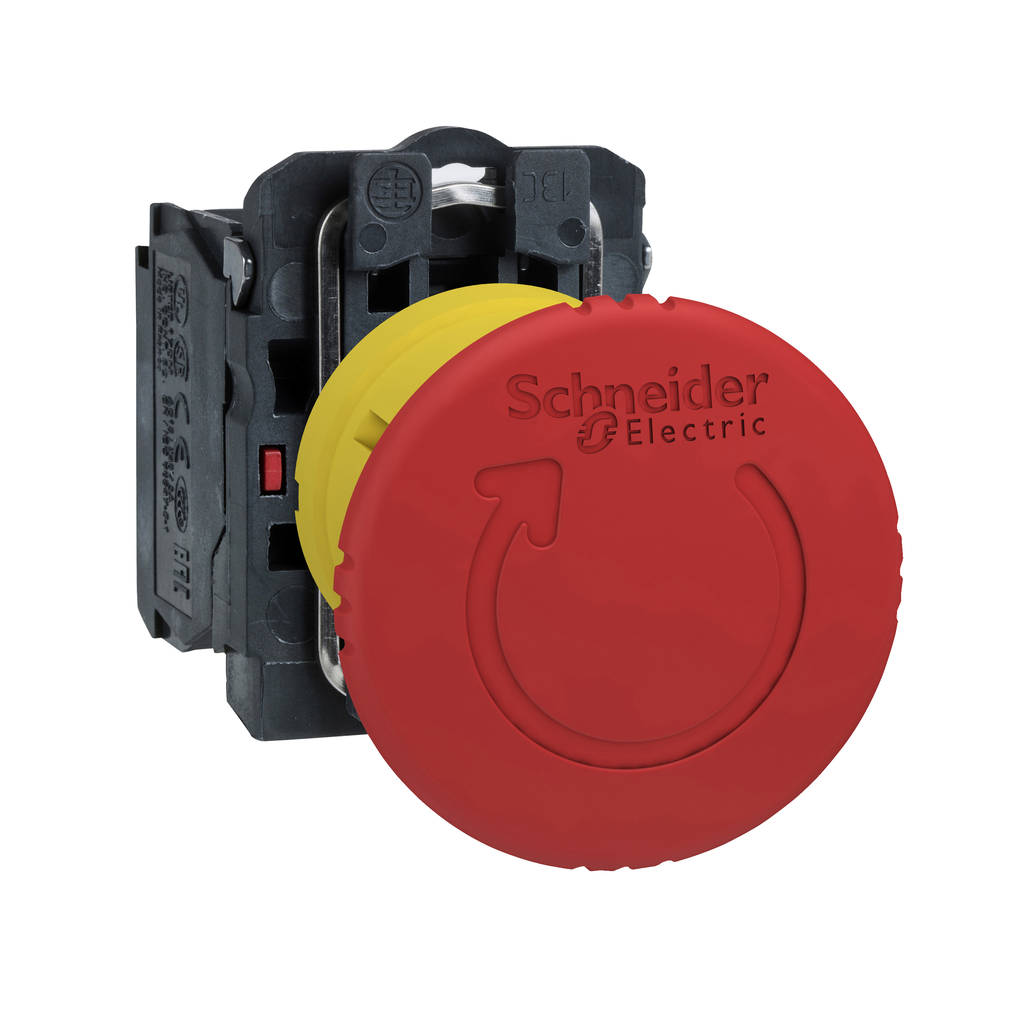

The Schneider Electric XB5AS8442 is an emergency stop switch designed with a red mushroom head and operates with a latched turn to release mechanism. It includes screw-clamp terminals, 1 x NC contact, and a durable plastic bezel. This switch can be installed in a standard twenty-two millimeter diameter cutout and is easily connected using screw-clamp connections.

• Impact resistant with IP66 rating.
• Compatible with standard machinery cutouts.
• Wide operating temperature range from minus forty to seventy degrees Celsius.

Product Highlights

This emergency stop button is easily identifiable due to its color and shape. It offers protection against dust, water, and vibrations, making it suitable for harsh environments.

Product Information

Standard Information

• Brand: Schneider Electric
• Catalog Number: XB5AS8442

Technical Specifications

• Type: Emergency stop push-button
• Color: Red
• Depth: eighty-two mm
• Width: forty mm
• Height: forty-three mm
• Amperage: 3 Amp 240 V
• Enclosure: NEMA 13-NEMA 4X
• Operating Temperature: -40 to 70 degrees Celsius
