Schneider Electric XB5AL73415 Green/Red Plastic Flush/Projecting 2-Head Push Button

Product Description

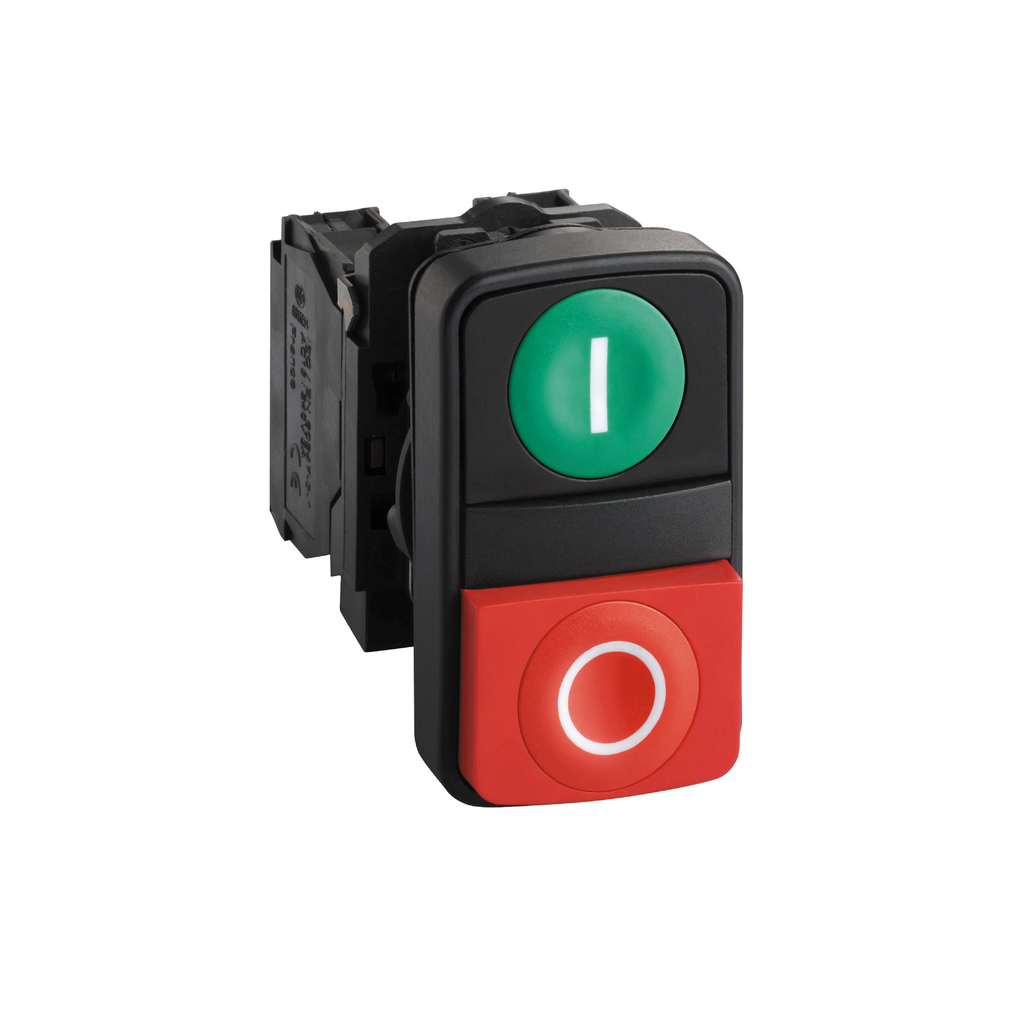

This Schneider Electric XB5AL73415 is a double-headed push button with one red and one green button. It operates with a spring return mechanism and features screw clamp terminals. This modular push button provides a complete two-button interface with a single panel cut-out, making installation easy in standard twenty-two millimeter diameter cut-outs. The push button is marked with I and O symbols for easy identification. It is designed to withstand harsh conditions, being impact, dust, water, and vibration resistant, rated at IP66, IP67, IP69, and IP69K. The plastic bezel offers good resistance to chemical agents and provides double electrical insulation.

• Spring return mechanism with screw clamp terminals
• IP66, IP67, IP69, IP69K rated for harsh environments
• Standard twenty-two millimeter diameter for easy installation

Product Highlights

This push button is suited for control applications in outdoor and industrial settings.

Product Information

Standard Information

• Catalog Number: XB5AL73415
• Brand: Schneider Electric

Technical Specifications

• Size: 2.32 in
• Type: Double-headed push-button
• Depth: 59 mm
• Width: 30 mm
• Height: 50 mm
• Weight: 0.12 lb
• Actuator: Green 'I' - Red 'O'; 1 flush - 1 projecting push-buttons
• Amperage: 3 Amp 240 V
• Standard: CSA C22.2 No 14, IEC 60947-1, UL 508
• Enclosure: NEMA 4X/13
• Contact Configuration: 1 NO + 1 NC
• Operating Temperature: -40 to 70 degrees C
