Schneider Electric XB5AL42 Push Button 600 VAC 1.2 Amp 22 mm Replacement XB5AL42

Product Description

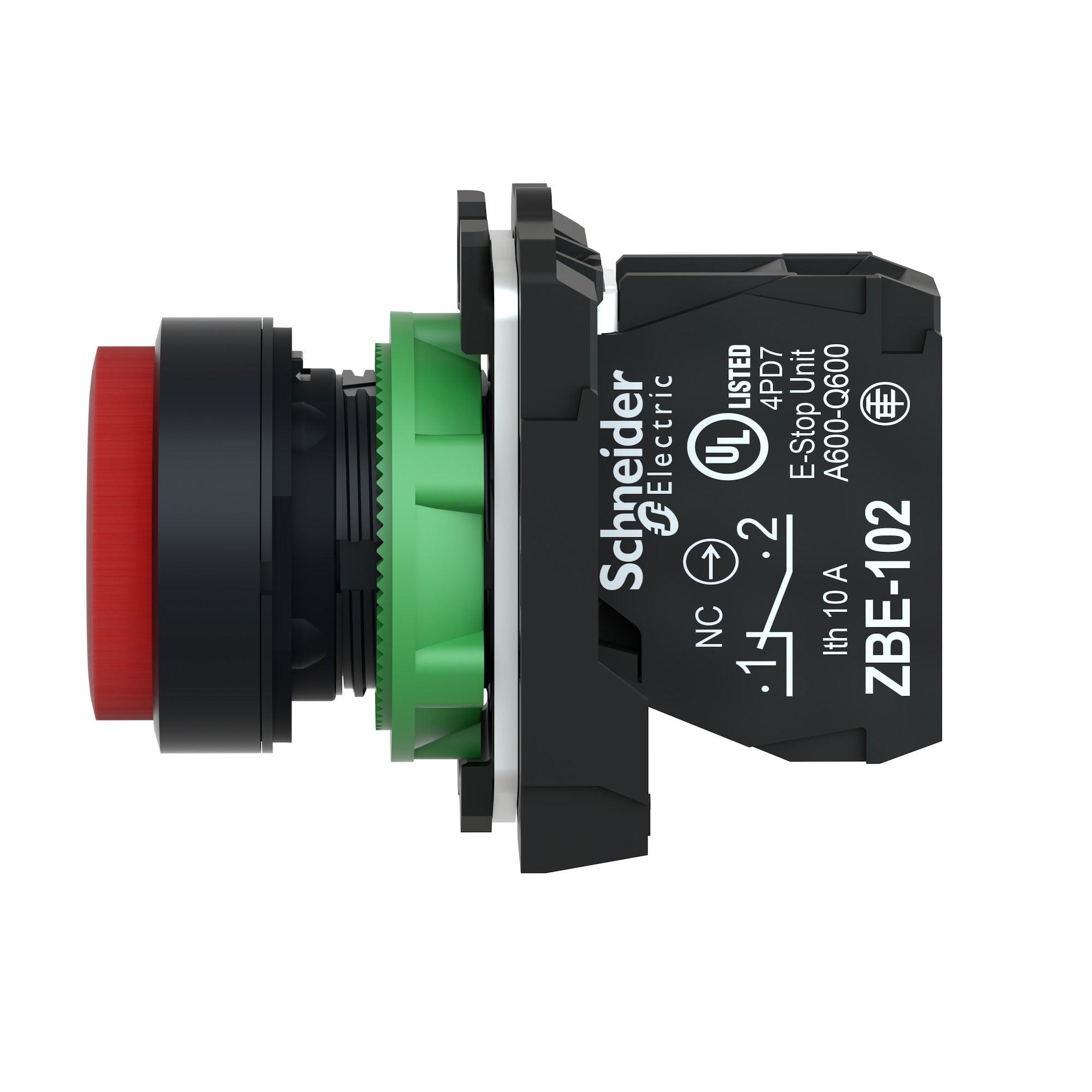

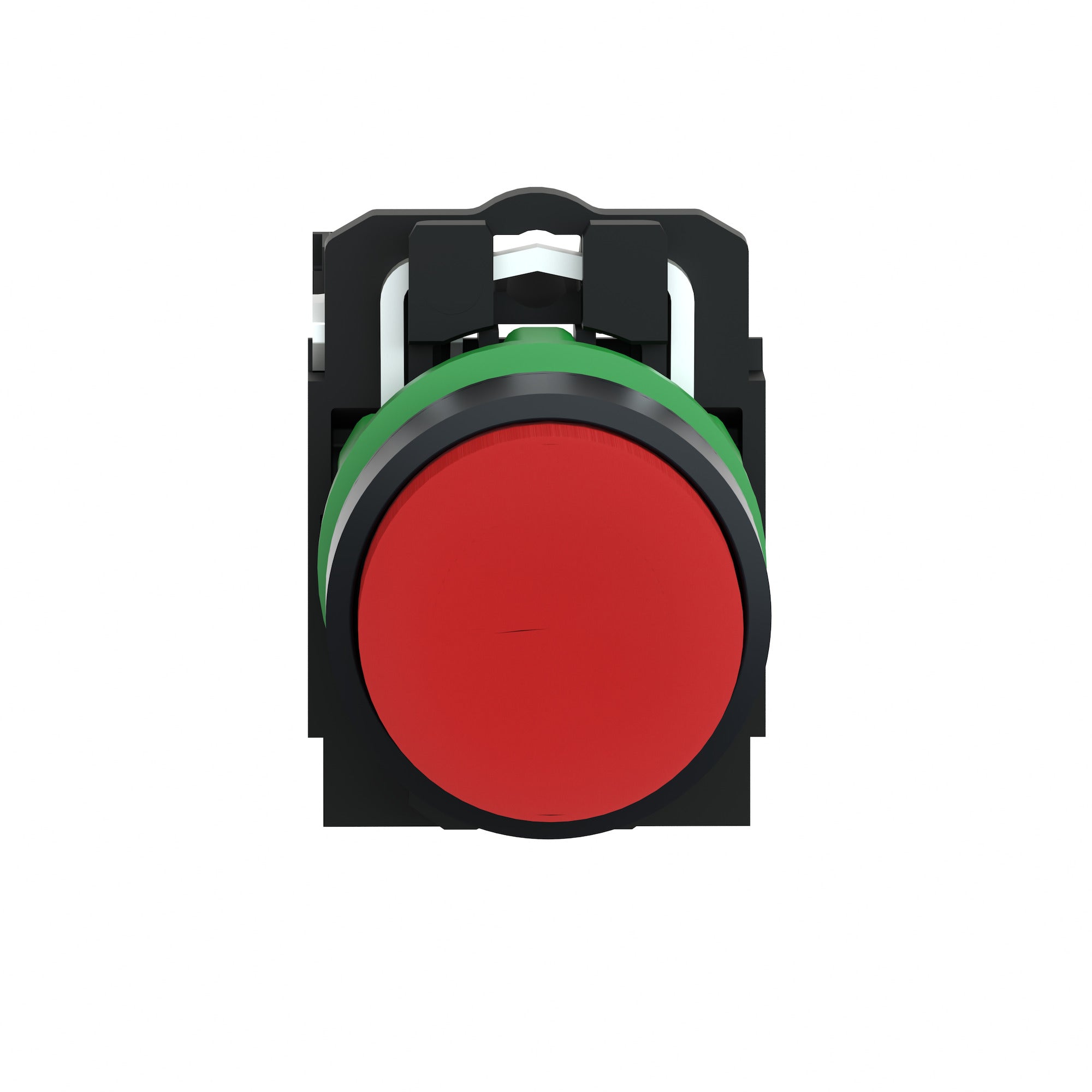

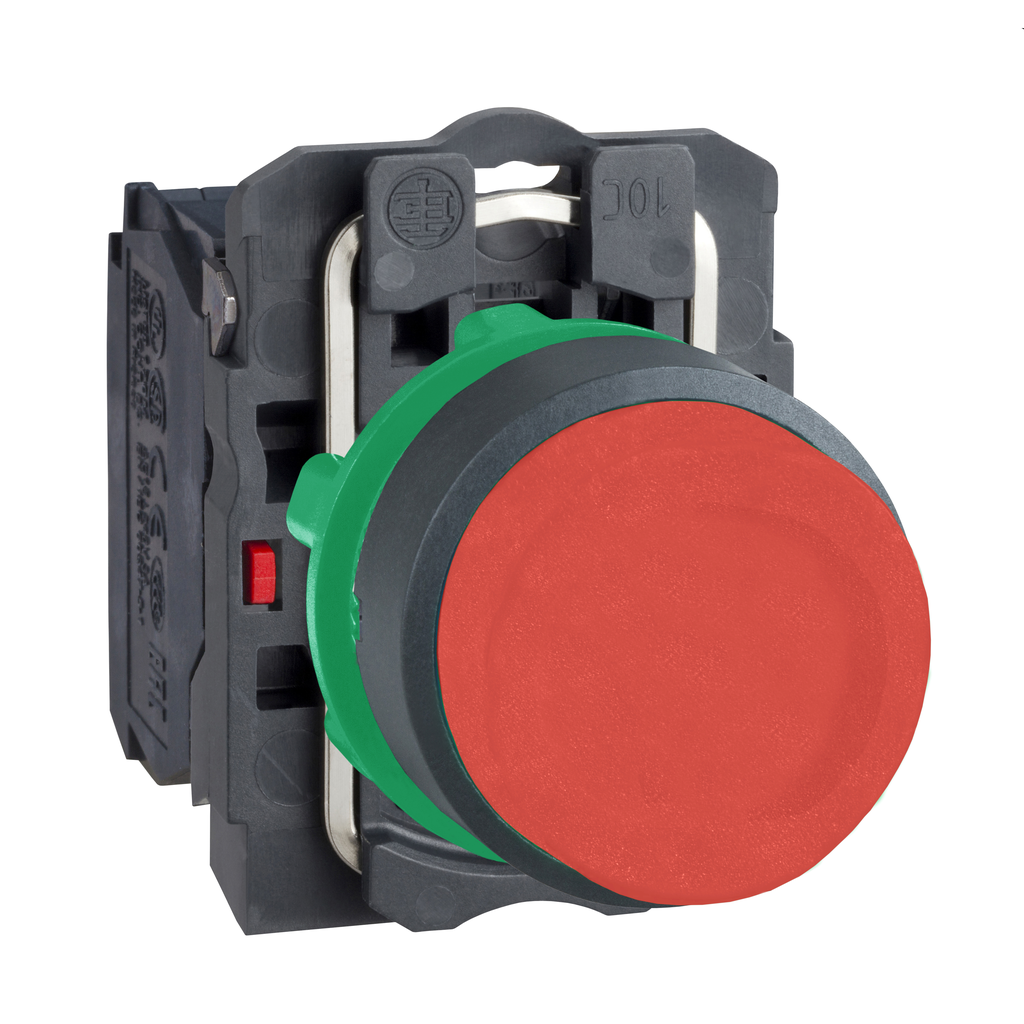

The Schneider Electric XB5AL42 is a 22 mm push button operating at 600 VAC with a current rating of 1.2 Amps. This red momentary flush non-illuminated push button uses a spring return impulse mechanism and features screw-clamp terminals for secure connections. The ergonomic design allows for effective control of machines and processes. The button is designed to fit standard 22 mm panel cut-outs easily, making it versatile for various applications.

• Ergonomic design for enhanced user interaction
• IP66 rated, providing resistance to water, dust, and impact
• Compatible with standard 22 mm mounting

Product Highlights

This model is suitable for harsh environments, making it ideal for industrial settings. The clear color coding aids in reducing wiring errors during installation and simplifies maintenance tasks.

Product Information

Standard Information

• Brand: Schneider Electric
• Manufacturer: Square-D / Schneider

Technical Specifications

• Catalog Number: XB5AL42
• Operating Temperature: -40 to 70 degrees C
• Enclosure Rating: NEMA 4/4X/13
• Action: Slow-break
• Head Type: Standard
• Weight: 0.08 lb
• Contact Configuration: 1 NC
• Net Weight: 0.038 kg
