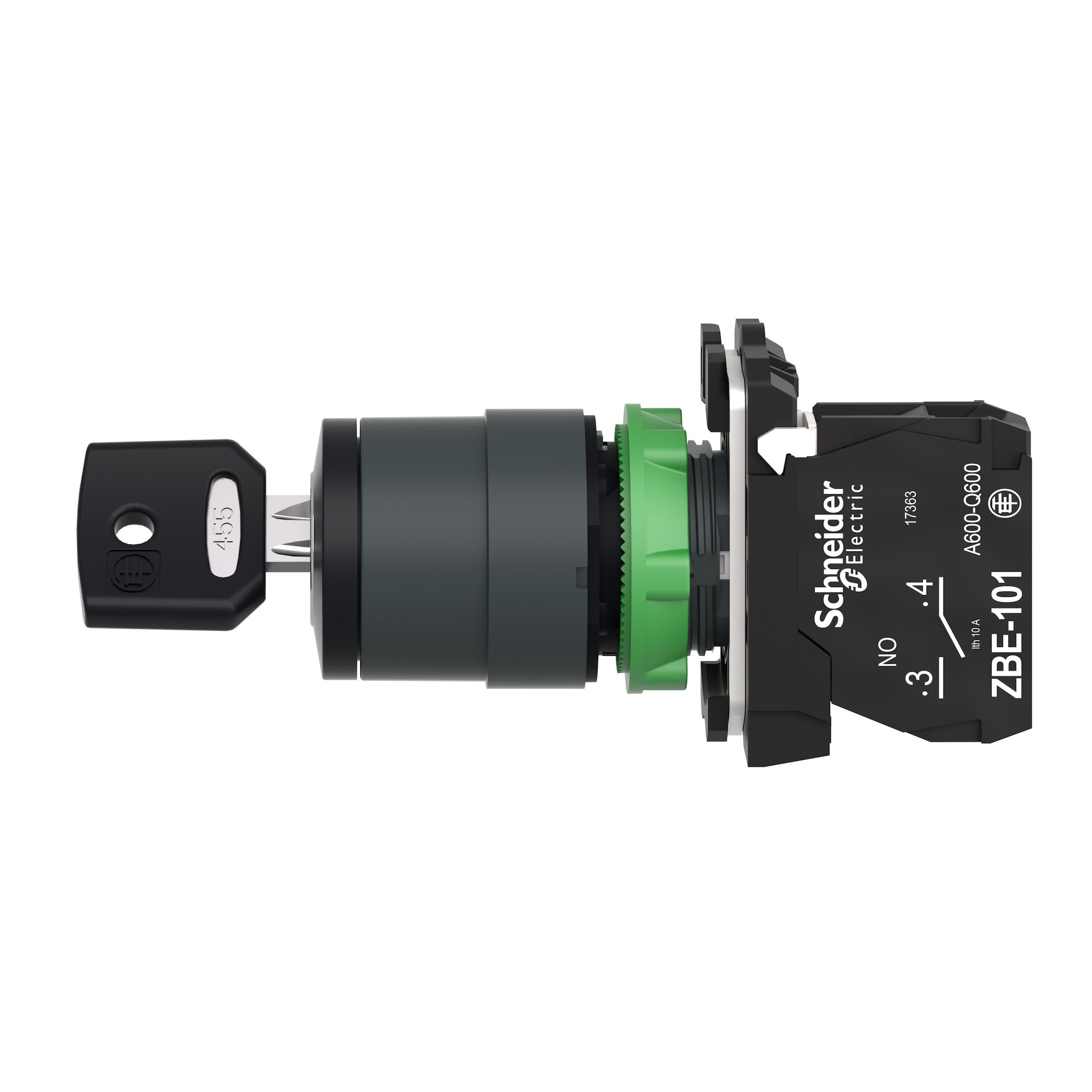

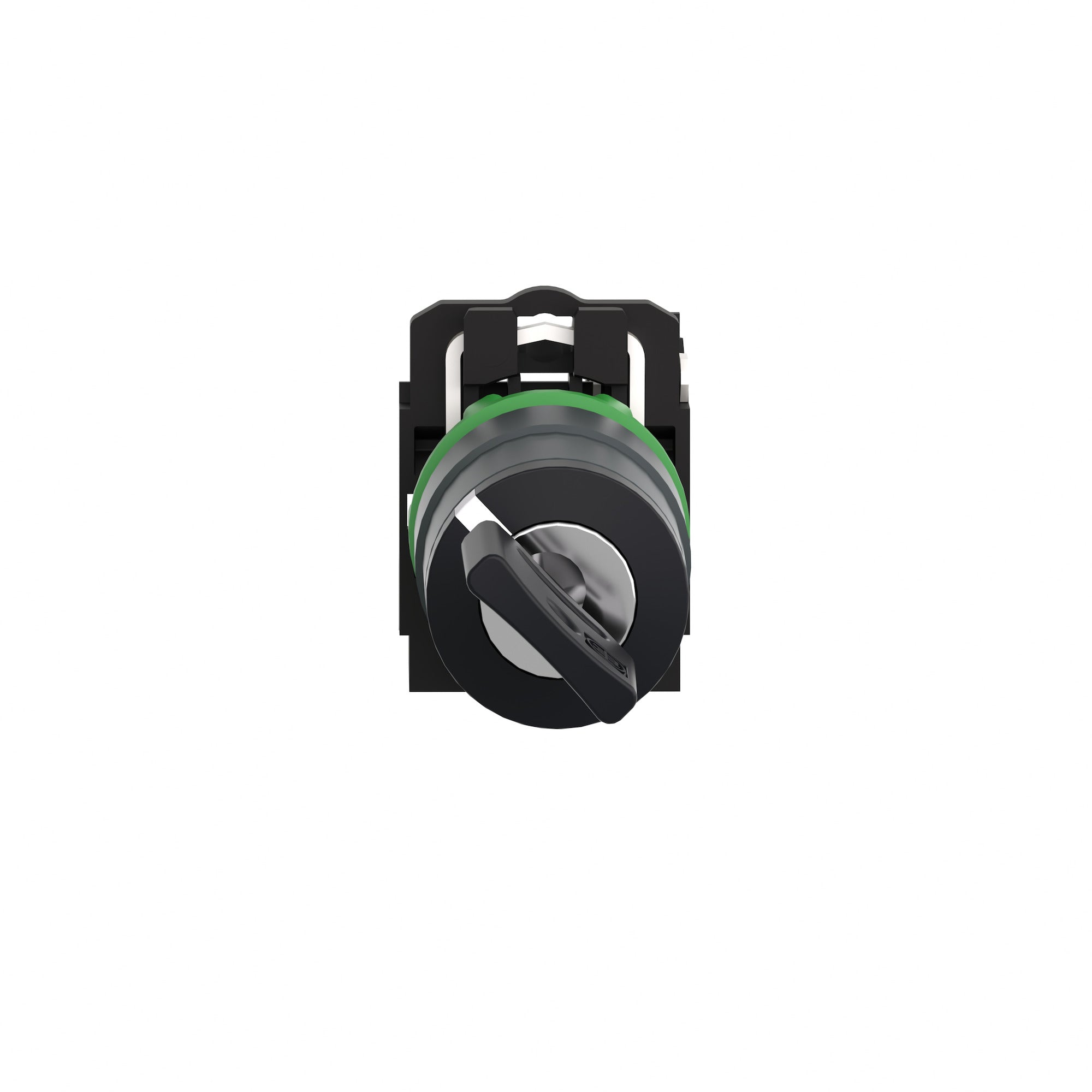

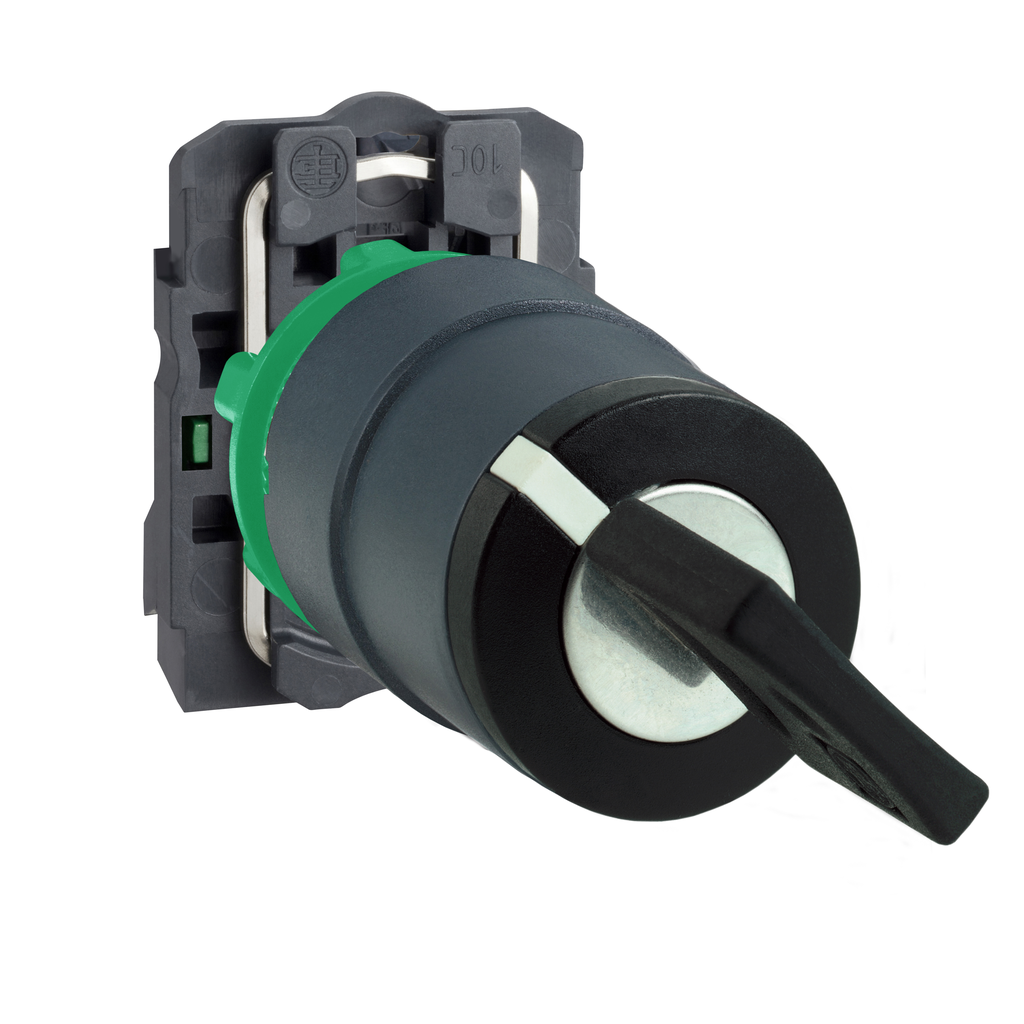

Schneider Electric XB5AG41 Square D 22 mm 1.2 Amp 600 VAC 1NO 2-Position Maintained Round Key Non-Illuminated Selector Switch

Product Description

The Schneider Electric XB5AG41 is a modular key selector switch designed for control applications. It has a diameter of twenty-two millimeters and provides a secure interface for switching machine operating modes. This selector switch features a stay-put mechanism that allows key withdrawal in both left and right positions. Its installation is straightforward, fitting into standard cut-outs and connecting easily through screw-clamp terminals.

• Two positions for versatile control
• Impact, dust, and water-resistant with IP66 and IP69K ratings
• Suitable for harsh environments

Product Highlights

The XB5AG41 is built to withstand demanding conditions. Its IP66 and IP69K ratings ensure protection against intrusion from water and dust. The durable plastic bezel serves well in environments that may expose it to chemical agents.

Product Information

Standard Information

• Brand: Schneider Electric
• Manufacturer: Square-D

Technical Specifications

• Catalog Number: XB5AG41
• Operating Voltage: 600 VAC
• Amperage: 10 Amp
• Contact Configuration: 1 NO
• IP Rating: IP66/IP69K
• Enclosure Rating: NEMA 4/4X/13
• Dimensions: 3.78 inches in height, 30 mm in width, 96 mm in depth
• Weight: 1.83 lb
