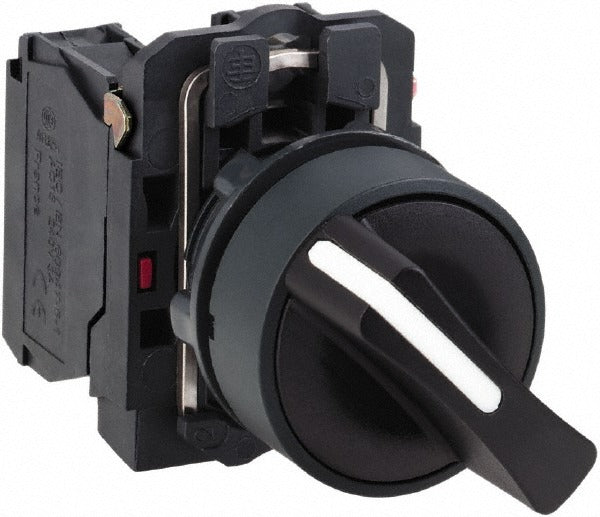

Schneider Electric XB5AD53 Selector Switch 3 Position

Product Description

The SCHNEIDER ELECTRIC XB5AD53 is a three-position momentary selector switch with integrated contact blocks, designed for industrial control panel applications. It features a round, black plastic handle and a 22 mm mounting hole diameter. The switch carries a 2NO contact configuration with screw terminals, making it straightforward to wire into standard control circuits. Rated NEMA 4X and IP69K, it is built to resist water ingress, shock, and vibration. Licensed electricians and panel builders install this switch in demanding environments where wash-down resistance or exposure to contaminants is a concern.

The XB5AD53 is suited for both light industrial and heavy-duty commercial applications where a three-position momentary selector is required. The momentary operation returns the switch to center when the operator releases the handle, making it appropriate for jog, inch, or directional control circuits. The 22 mm form factor is a widely used industry-standard panel cutout size, fitting standard enclosures and DIN-style operator housings. This switch is rated for environments subject to moisture, dust, and mechanical vibration, making it a practical choice for food processing, marine, and outdoor control panel installations.

Key Features

• Three-position momentary operation returns to center on release
• 2NO contact configuration with screw terminal connections
• NEMA 4X and IP69K ingress protection for wash-down and wet environments
• Shock-resistant and vibration-resistant construction
• Round black plastic bezel with 22 mm standard panel cutout
• Meets multiple international standards including UL 508, CSA C22.2 No. 14, EN/IEC 60947-5-1, and DNV

Compatibility

Designed as an OEM-style replacement or new-installation selector switch for 22 mm round-hole control panels and enclosures requiring a three-position momentary operator.

Installation Notes

Installation should be performed by a licensed electrician in accordance with NEC requirements and local codes. Disconnect and lock out all power to the control panel before removing or installing the switch. Screw terminals should be tightened to the terminal manufacturer specification using an appropriate flat-blade screwdriver. Verify that the panel enclosure rating is compatible with the switch IP69K rating before finalizing installation.
