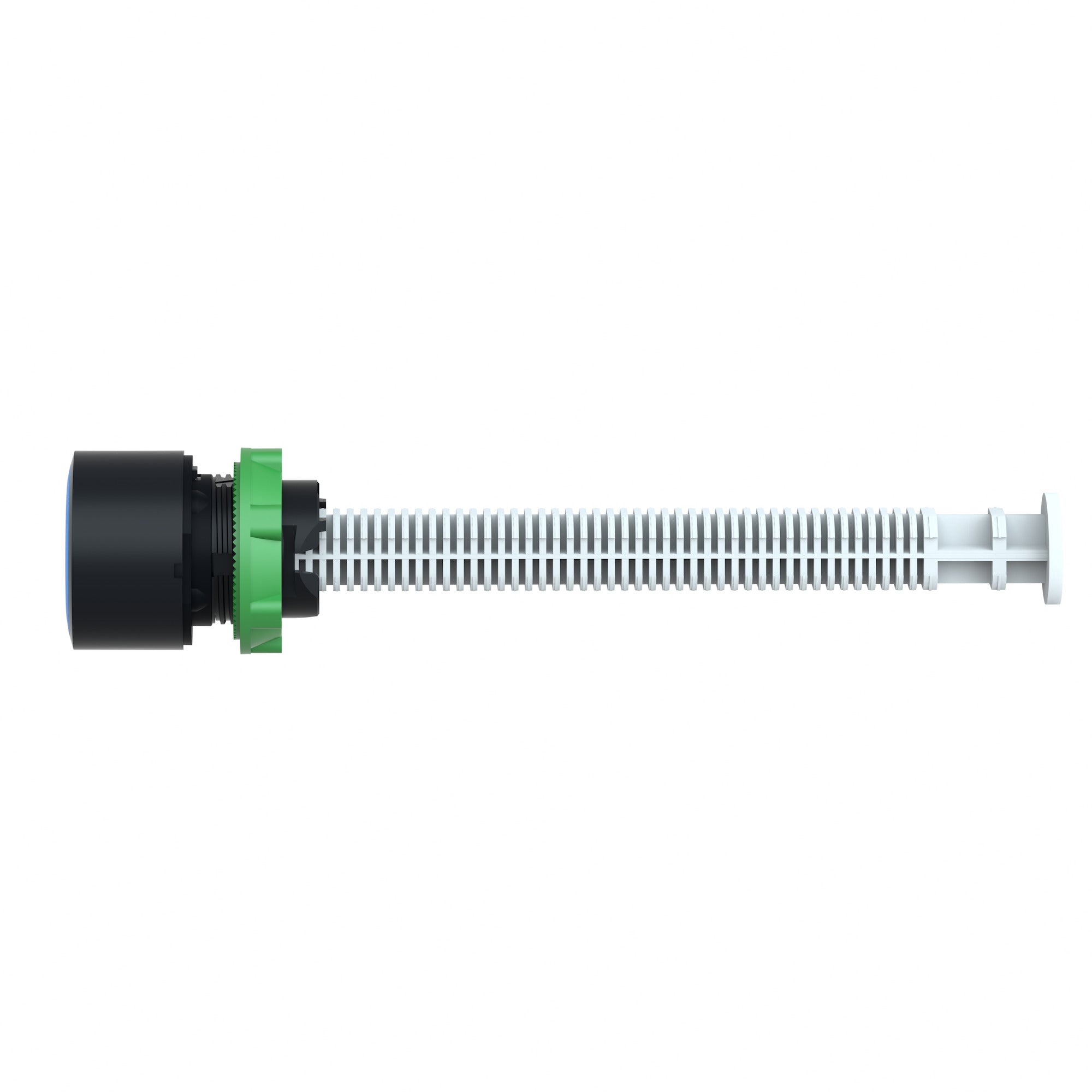

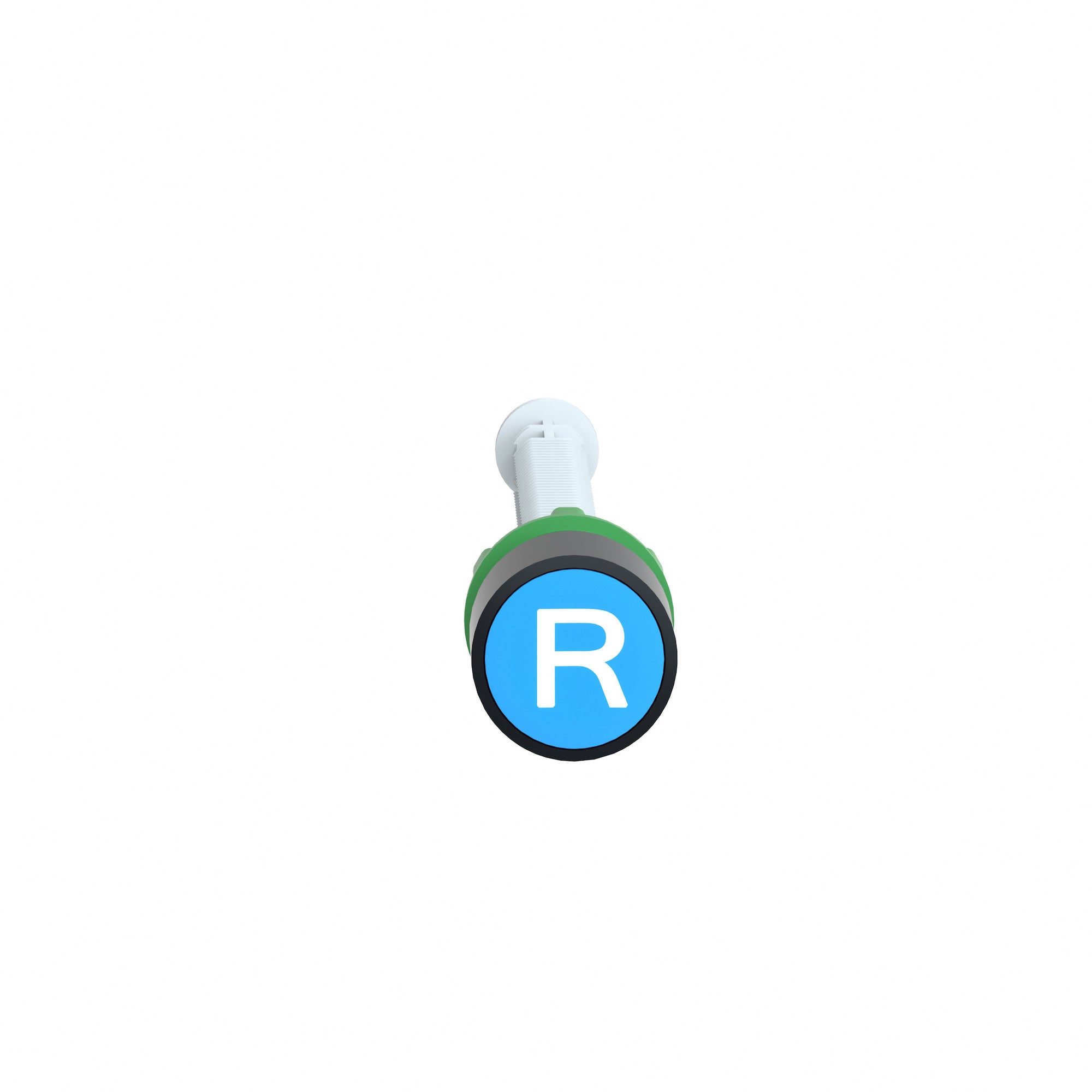

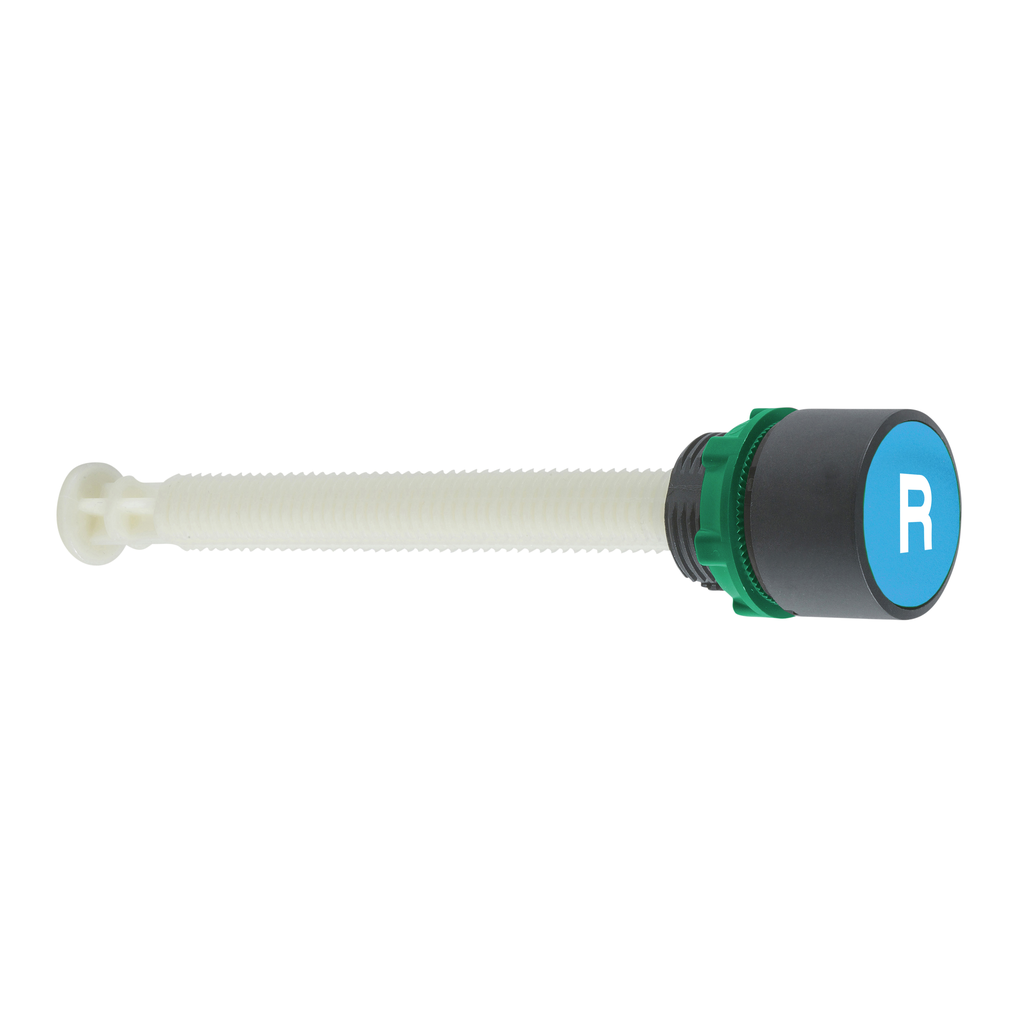

Schneider Electric XB5AA86102 Push Button Reset Operator 22 mm 600 VAC 1.2 Amp

Product Description

The Schneider Electric XB5AA86102 is a manual overload reset pushbutton designed for control and automation applications. It is compatible with standard 22 mm panel cutouts and features a blue, round flush push head for ergonomic operation.

• Operating temperature range from -40 degrees C to 70 degrees C.
• Impact, dust, and water resistant with IP66 rating.
• Plastic bezel for durability in harsh environments.

Product Highlights

This pushbutton offers a durable interface for quickly resetting machines. Its simple modular design allows for easy installation and servicing, making it suitable for various applications.

Product Information

Standard Information

• Manufacturer: Schneider Electric
• Catalog Number: XB5AA86102

Technical Specifications

• Type: Manual overload reset push-button
• Size: 22 mm
• Depth: 120 mm
• Width: 29 mm
• Height: 29 mm
• Weight: 0.06 lb
• Actuator: Flush pushbutton
• Standard: EN/IEC 60947-1
• Enclosure: NEMA 4X
• Certifications: UL
• Warranty Length: 18 months
• Country of Origin: France
• GTIN: 03389110102475
• UPC: 78590138361
