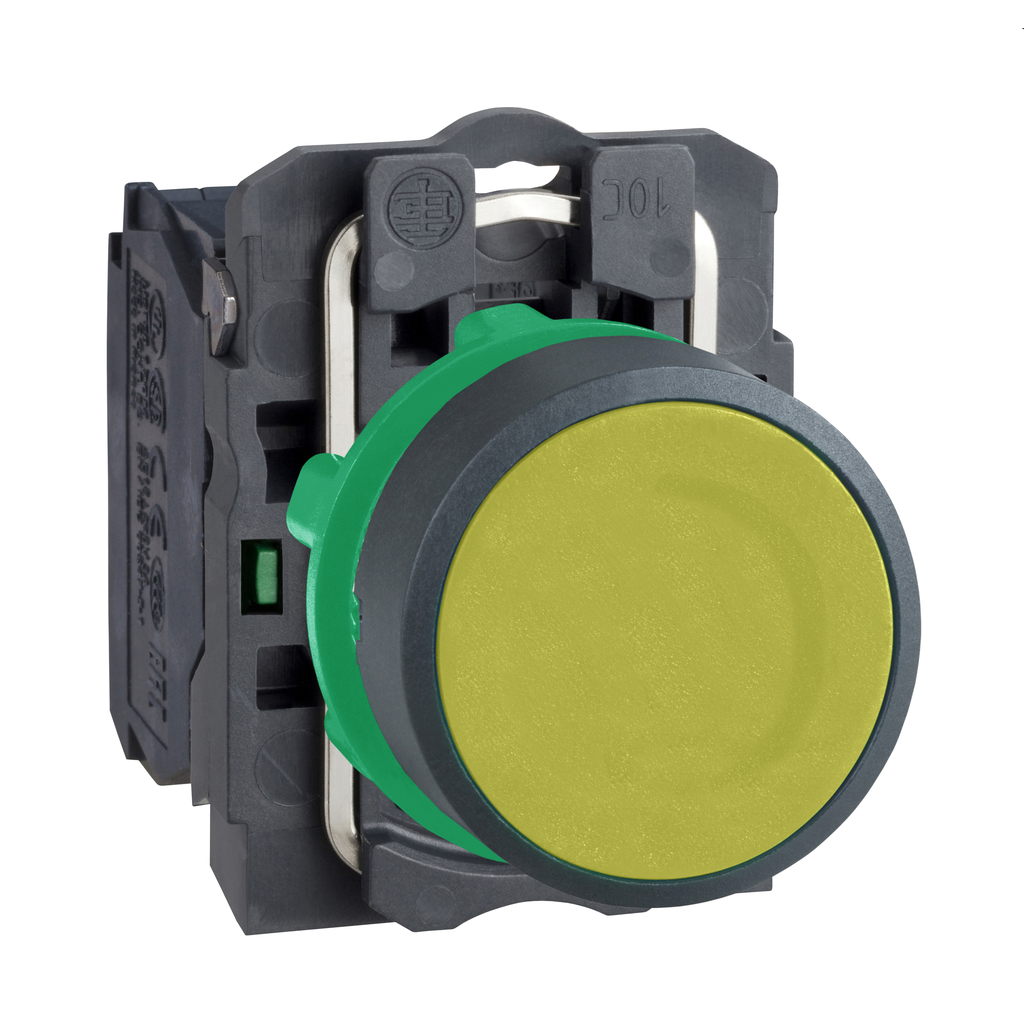

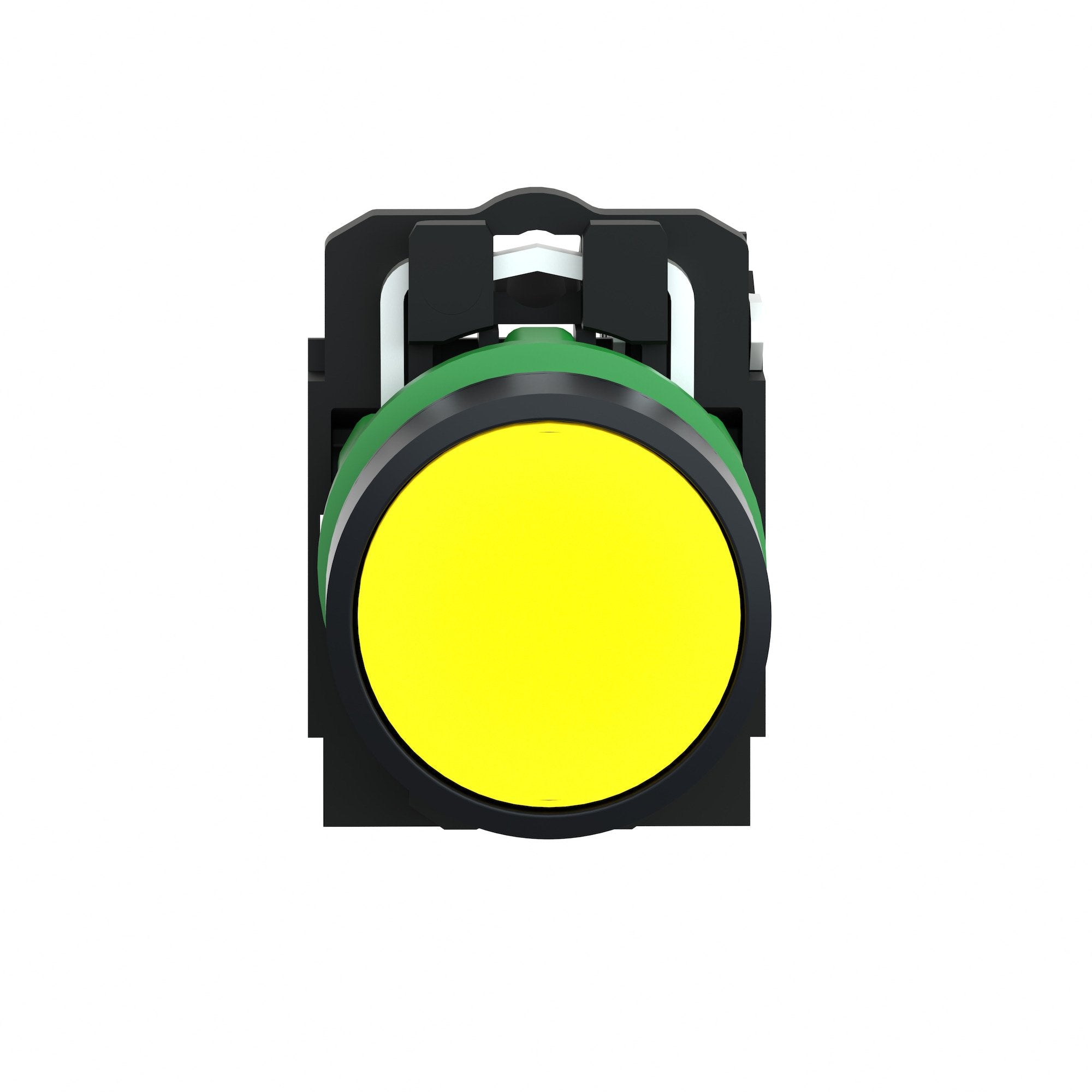

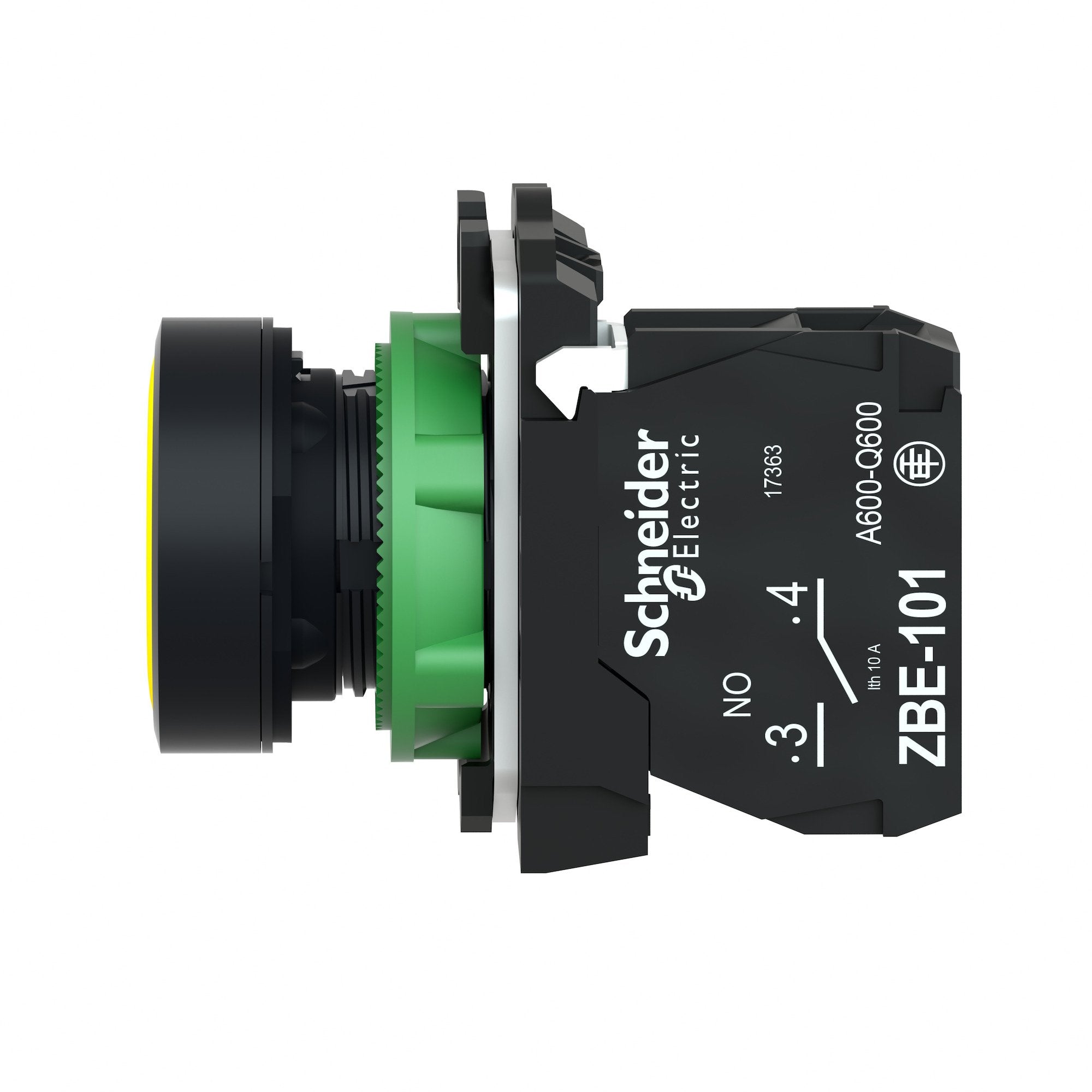

Schneider Electric XB5AA51 Push Button 600 VAC 1.2 Amp 22 mm

Product Description

The Schneider Electric XB5AA51 is a yellow round momentary push button designed for control applications in industrial environments. It operates with a spring return mechanism and uses screw clamp terminals for secure connections. This push button fits into standard twenty-two millimeter diameter cut-outs, making installation straightforward. Its clear colors and markings enhance visibility, reducing errors during wiring and maintenance.

• Rated for up to six hundred volts AC and one point two amps
• Impact, dust, water, and vibration resistant with IP66/IP67/IP69 ratings
• Constructed with plastic for chemical resistance and double electrical insulation

Product Highlights

This push button is ideal for use in harsh environments, providing a reliable interface for machine control. Its durable design ensures longevity and performance in challenging conditions.

Product Information

Standard Information

• Catalog Number: XB5AA51
• Brand: Schneider Electric

Technical Specifications

• Type: Push-button
• Color: Yellow
• Height: 1.65 inches
• Width: 1.18 inches
• Depth: 2.05 inches
• Weight: 0.08 lb
• Amperage: 10 Amp
• Operating Temperature: -40 to 70 degrees C
• Contact Configuration: 1 NO
• Certifications: CSA, UL Listed
