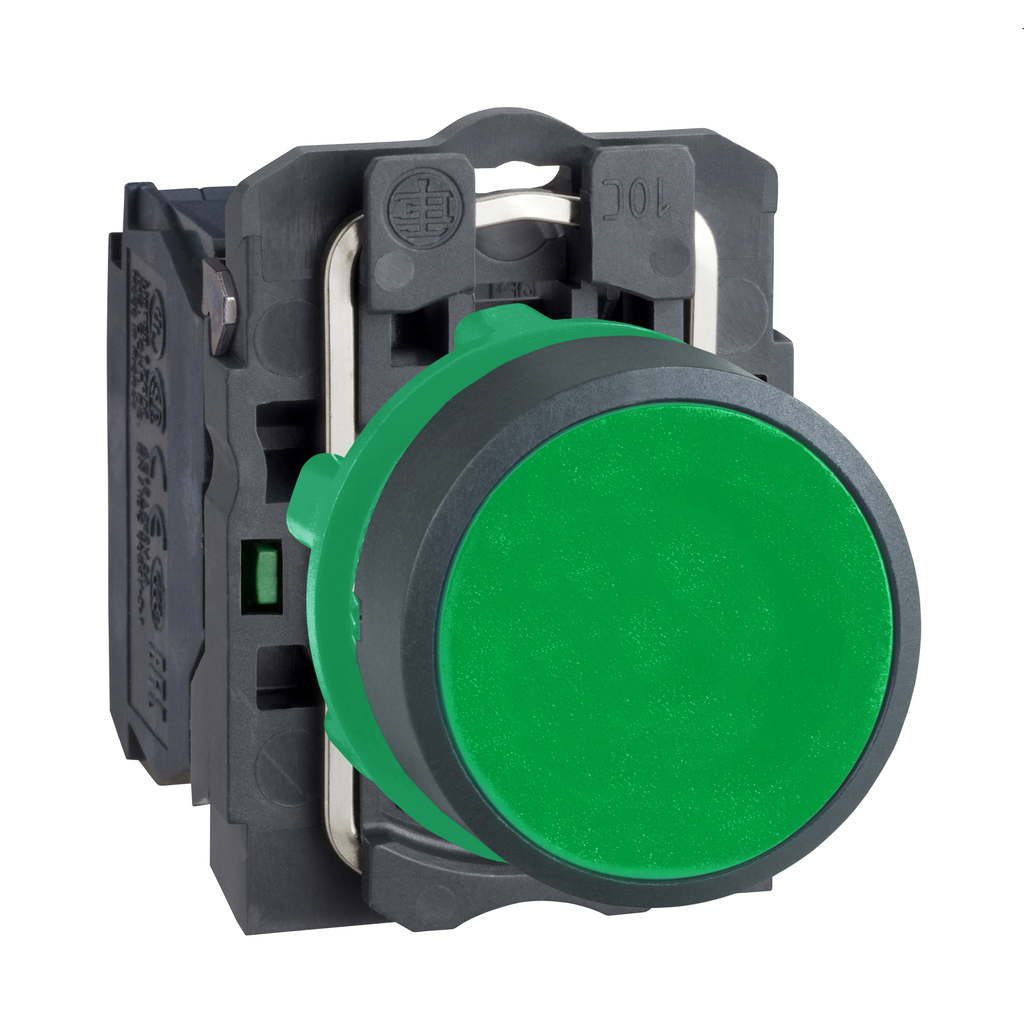

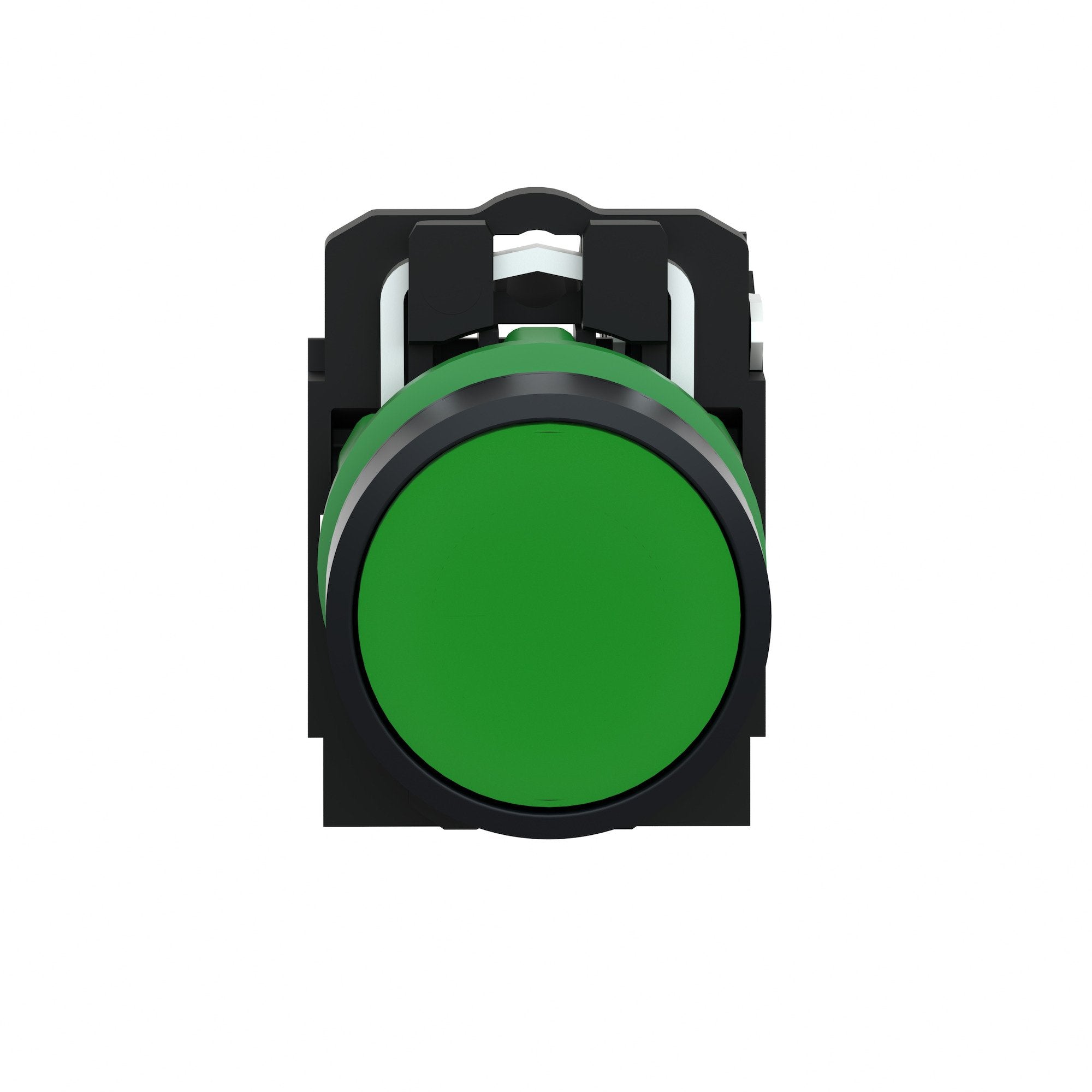

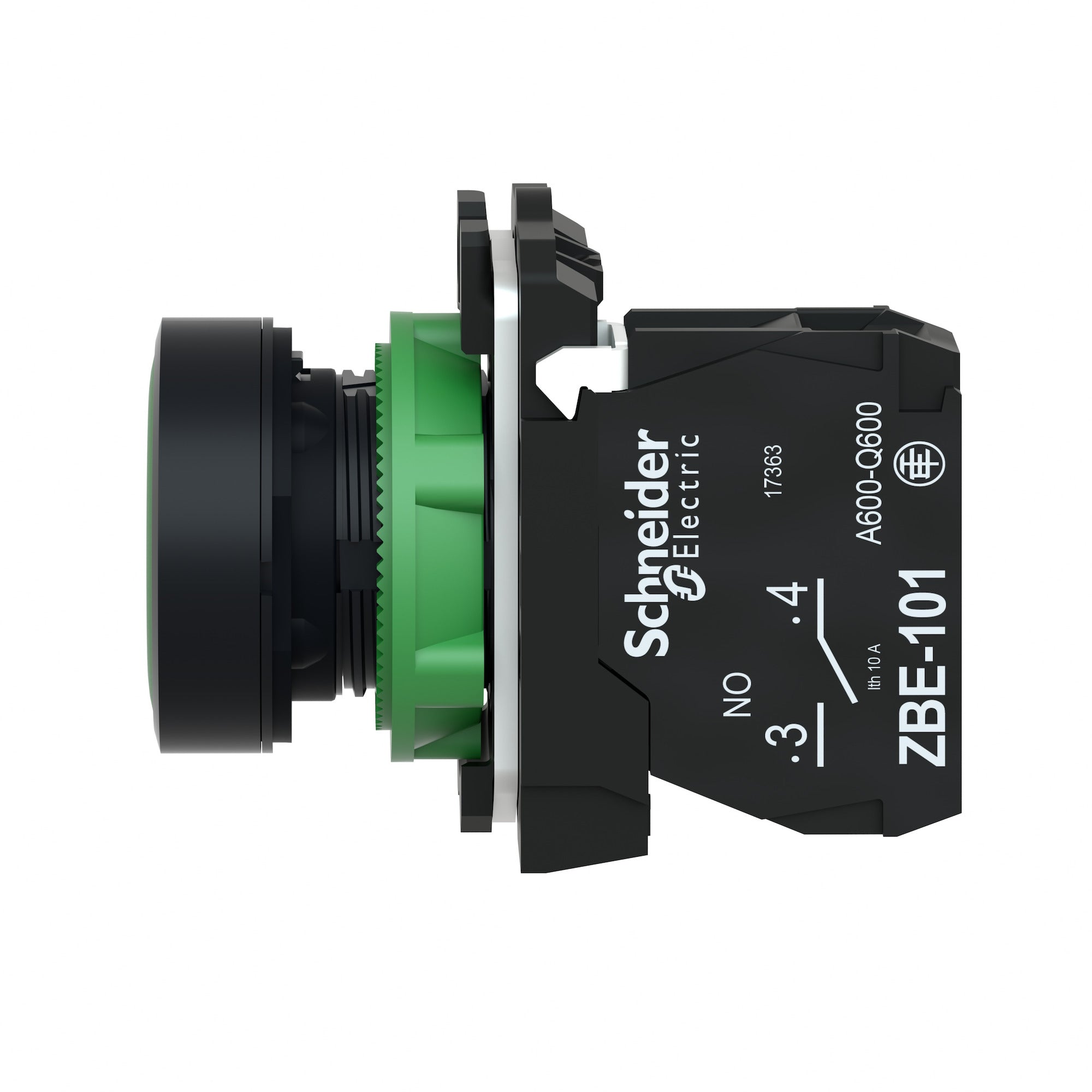

Schneider Electric XB5AA31 Push Button 22 mm 600 VAC 1.2 Amp 1NO Green Round Momentary Flush Non-Illuminated

Product Description

This Schneider Electric XB5AA31 is a green round momentary push button rated for six hundred volts AC and one point two amps. This device features a spring return mechanism and connects using screw clamp terminals. It fits standard twenty-two millimeter cut-outs and ensures simple installation. The design minimizes wiring errors and is visually clear from a distance, aiding in maintenance. This push button is resistant to impact, dust, water, and vibration, rated at IP66 for harsh environments. The plastic housing withstands chemical agents and provides electrical insulation.

• Rated for six hundred volts AC and one point two amps
• Impact and water resistant with an IP66 rating
• Simple screw clamp connections for easy installation

Product Highlights

Designed for control in industrial settings, ideal for harsh conditions.

Product Information

Standard Information

• Brand: Schneider Electric
• Model Number: XB5AA31

Technical Specifications

• GTIN: 03389110903409
• Size: 22mm round
• Type: Non-illuminated Pushbutton
• Weight: 0.08 lb
• Action: Momentary
• Depth: 52 mm
• Width: 30 mm
• Height: 42 mm
• Contact Configuration: 1 NO
• Operating Temperature: -40 to 70 degrees C
• Enclosure Rating: NEMA 4/4X/13
• Amperage: 10 Amp
• Warranty Length: 18 months
• Country of Origin: France
