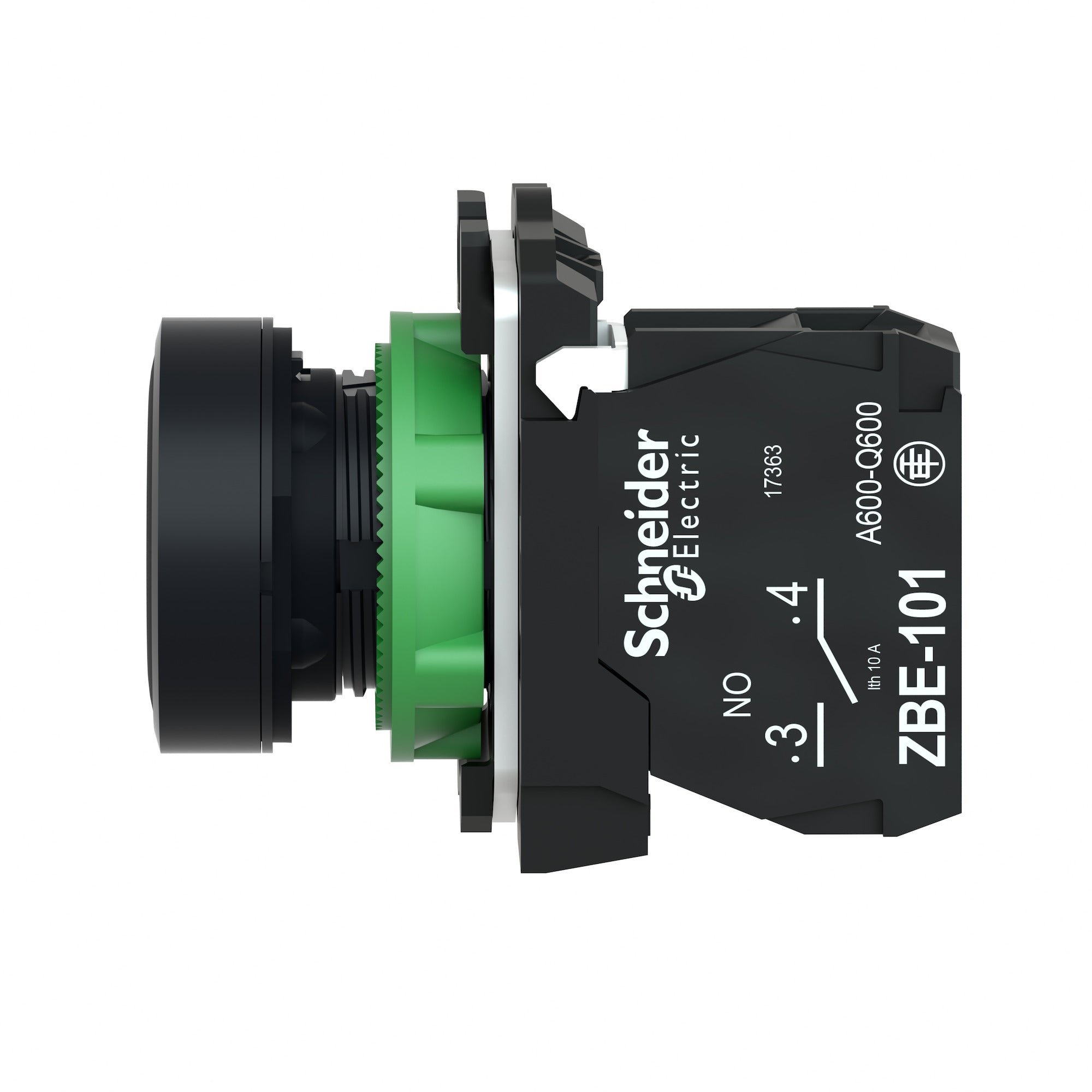

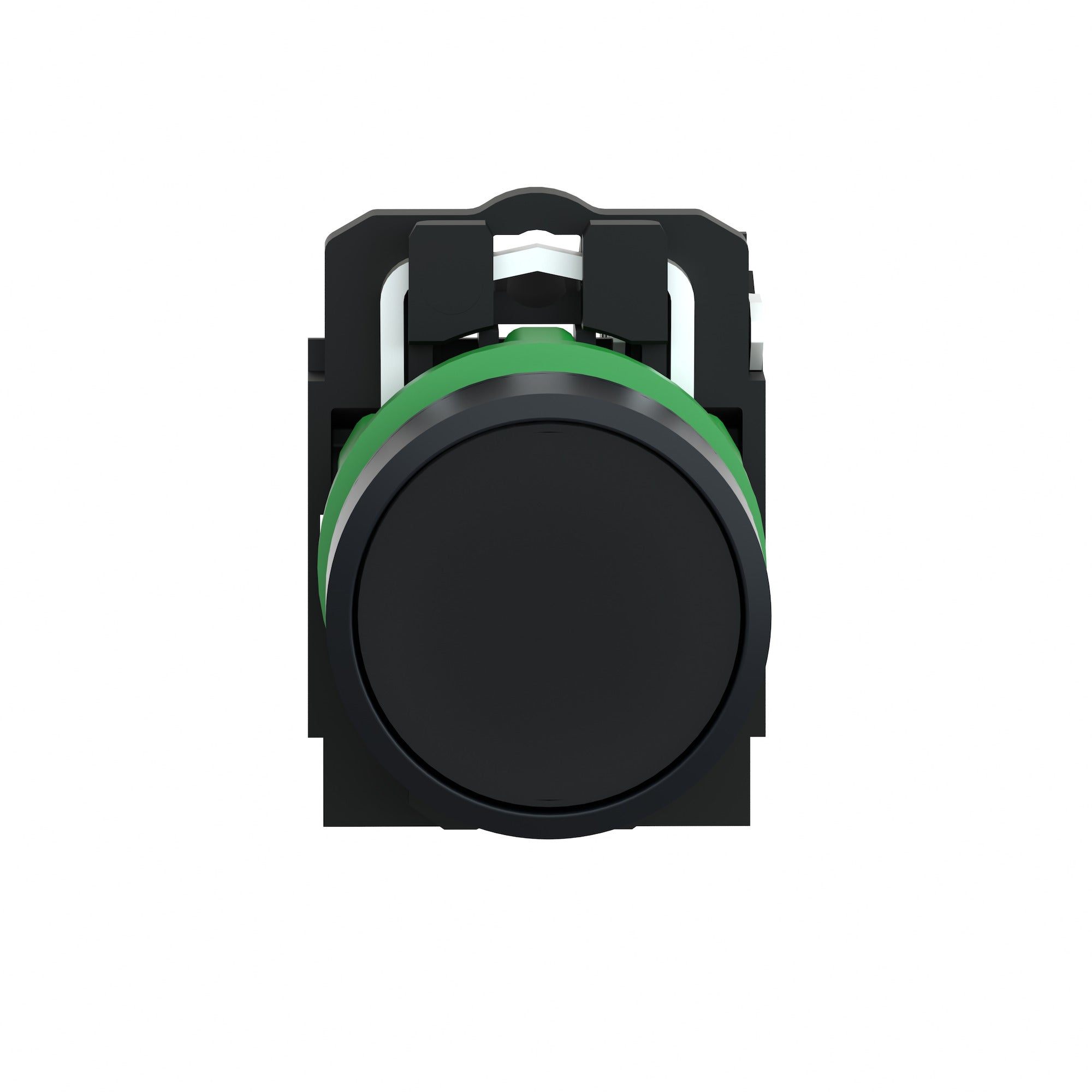

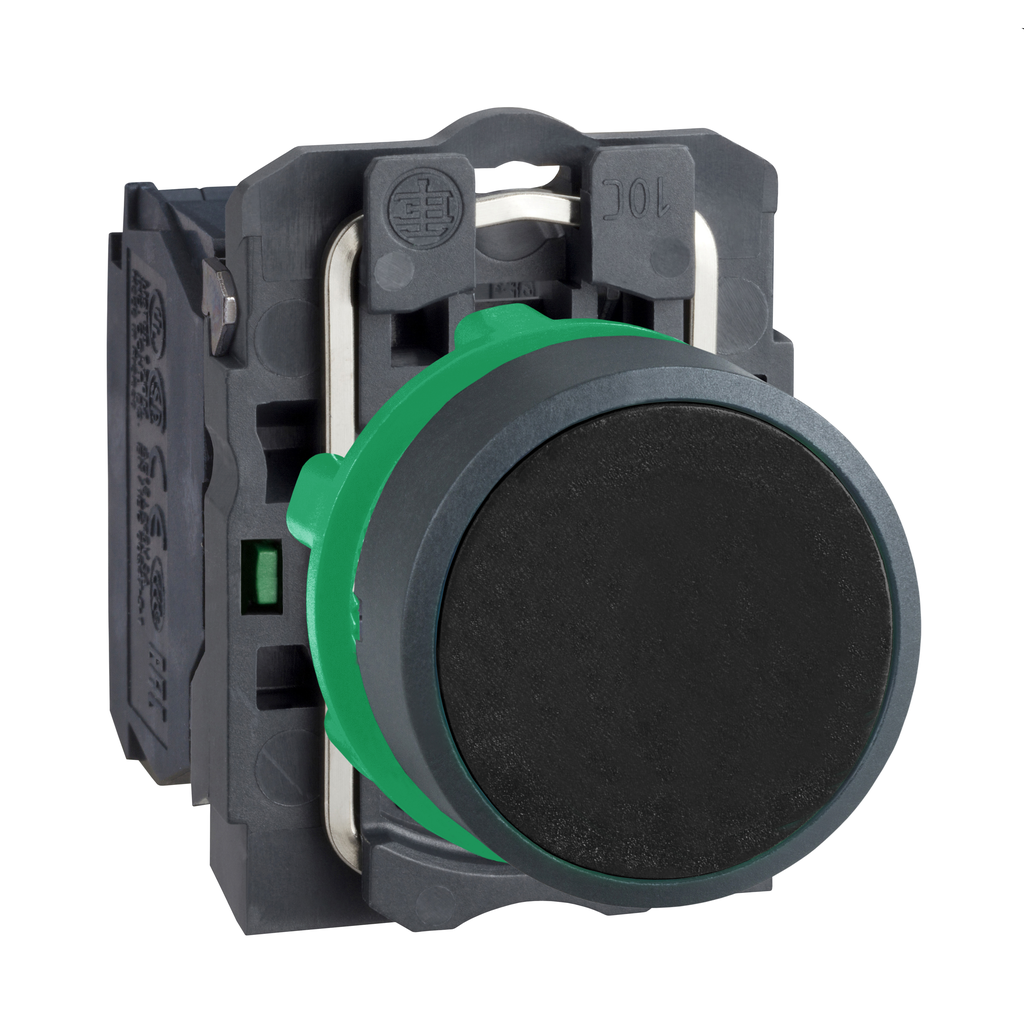

Schneider Electric XB5AA21 Push Button 22 mm 600 VAC 1.2 Amp 1NO

Product Description

The Schneider Electric XB5AA21 is a round push button designed for 22 mm cutouts. This device operates on a spring return mechanism and is suitable for controlling various machines and processes. The installation is straightforward with screw clamp terminals for easy connections.

• Push button type: Non-Illuminated
• IP66 rated for water, dust, and corrosion resistance
• Operating force of 3.8 N for reliable performance

Product Highlights

This push button is rugged and built for use in tough environments. It is effective for applications requiring a reliable control interface.

Product Information

Standard Information

• Brand: Schneider Electric
• Catalog Number: XB5AA21

Technical Specifications

• Type: Push-button
• Operating Temperature: -40 to 70 degrees C
• Depth: 52 mm
• Width: 30 mm
• Height: 42 mm
• Weight: 0.08 lb
• Actuator: Spring return, unmarked
• Contact Configuration: 1 NO
• Amperage: 10 Amp
• Warranty Length: 18 months
• Country of Origin: France
