Schneider Electric XB4BW73731G5 Square D 600 VAC 1.2 Amp 22 mm Illuminated Double Headed Push Button

Product Description

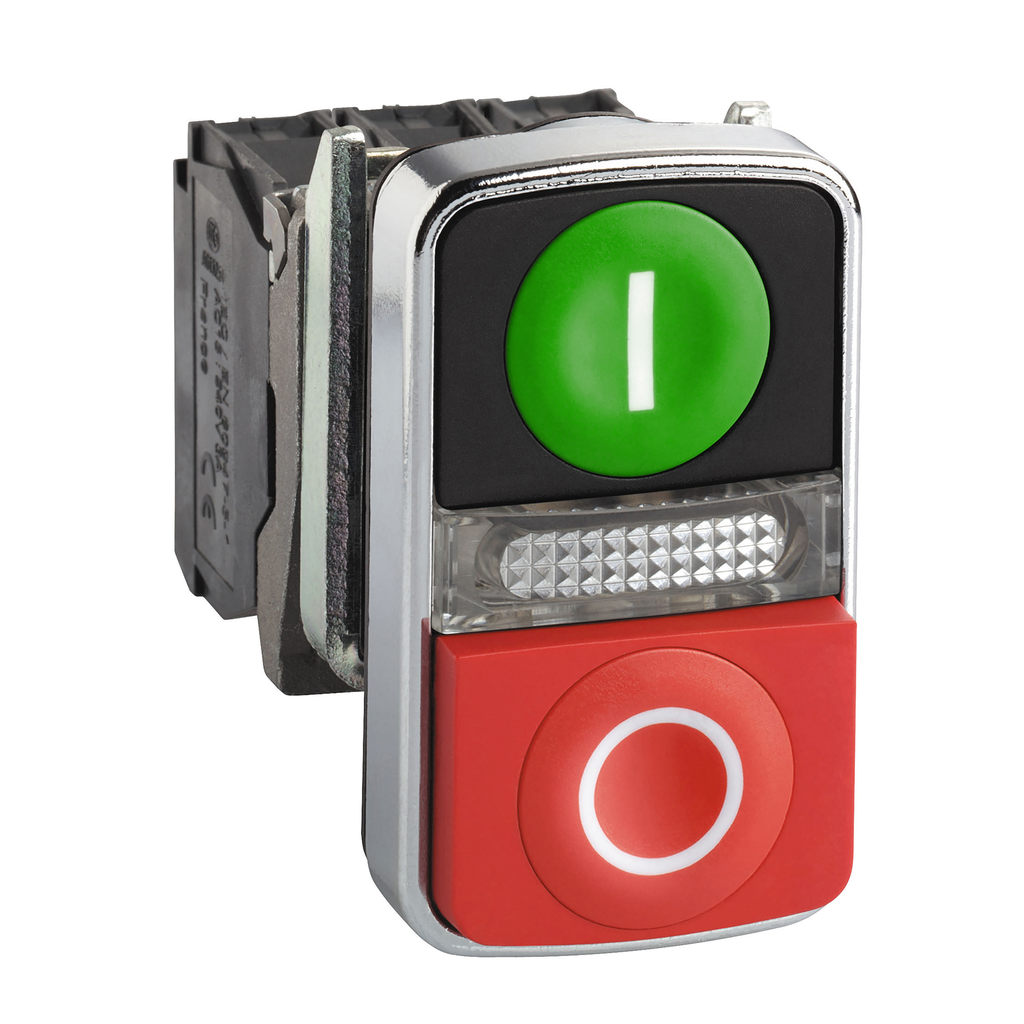

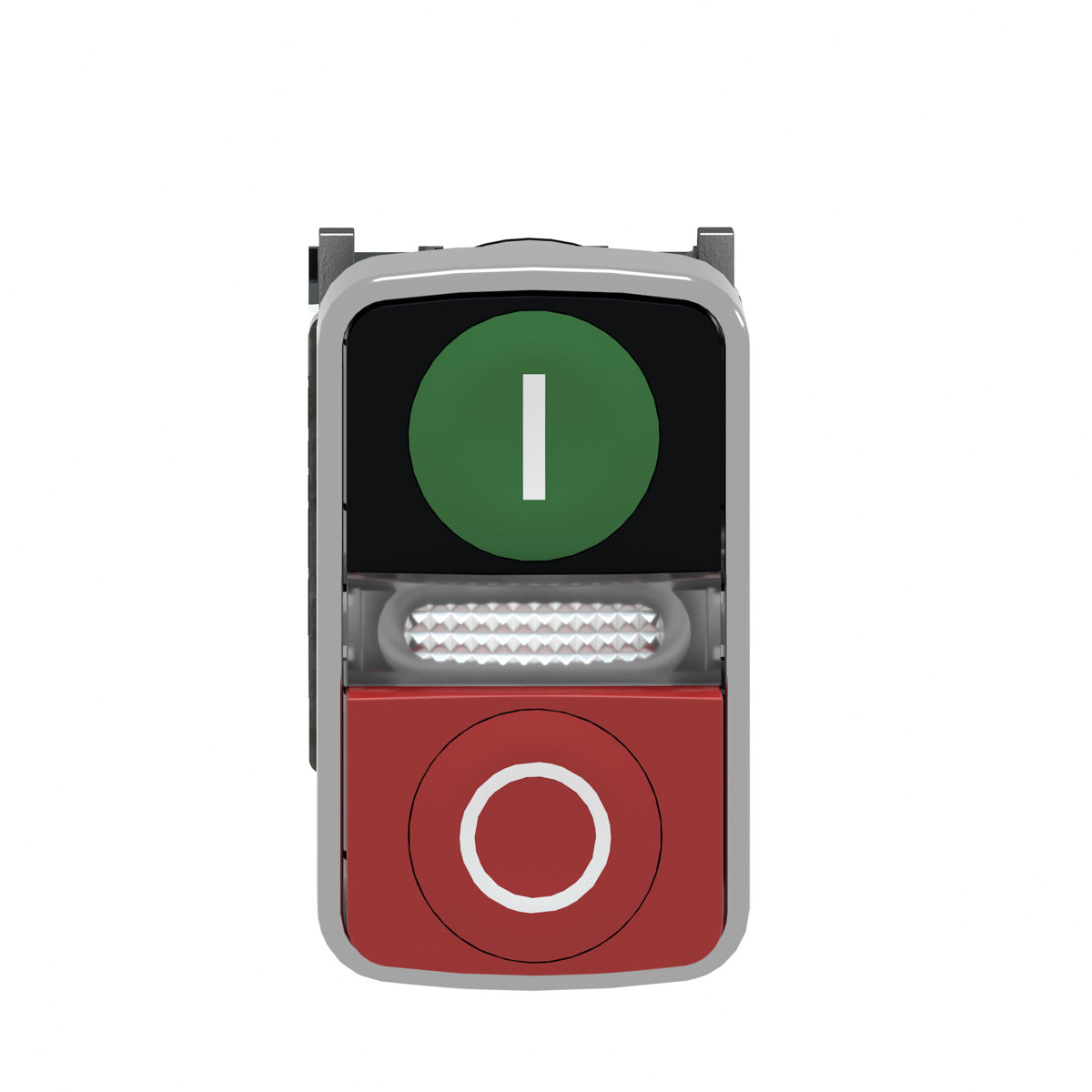

The Schneider Electric XB4BW73731G5 is a 22 mm illuminated double-headed push button rated for 600 VAC and 1.2 Amp. This device features one green button and one red button, along with a central white pilot light. The design operates with a spring return/impulse mechanism. It includes a metal bezel with marked I and O symbols.

• Easy installation into standard 22 mm diameter cut-outs.
• Impact, dust, water, and vibration resistant with IP66/IP67/IP69/IP69K ratings.
• Visually clear colors help minimize wiring errors during installation.

Product Highlights

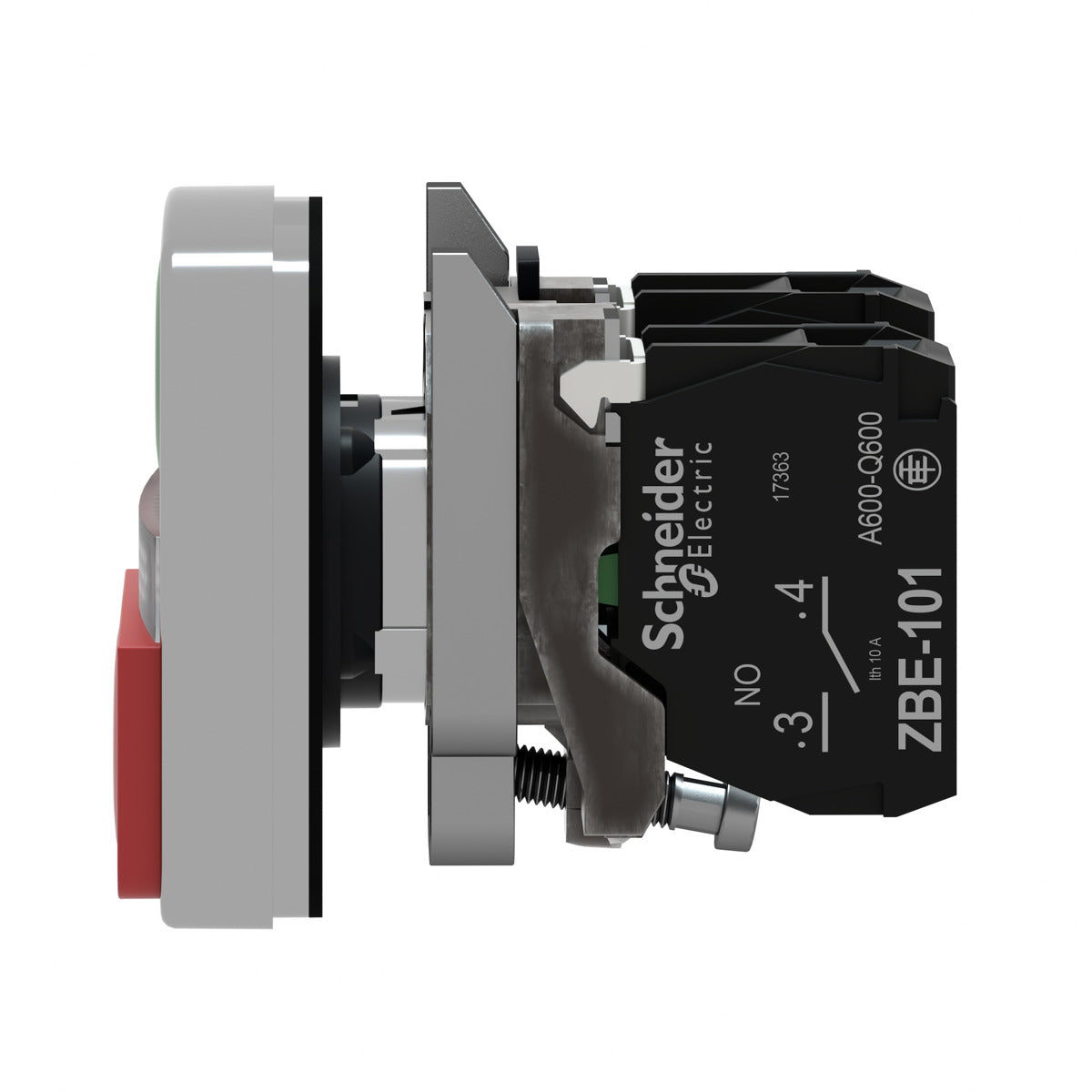

This illuminated push button creates a robust interface for controlling machinery with a single cut-out. It connects easily using simple screw-clamp connections, making wiring straightforward and efficient, ideal for various industrial applications.

Product Information

Standard Information

• Brand: Schneider Electric
• Manufacturer: Square D

Technical Specifications

• Catalog Number: XB4BW73731G5
• Weight: 0.29 lb
• Voltage: 110-120 Volt AC 50/60 Hz
• Current: 14 mA
• Action: Slow-break
• Operating Temperature: -40 to 70 degrees C
• Enclosure Rating: NEMA 4X/13
• Warranty Length: 18 months
