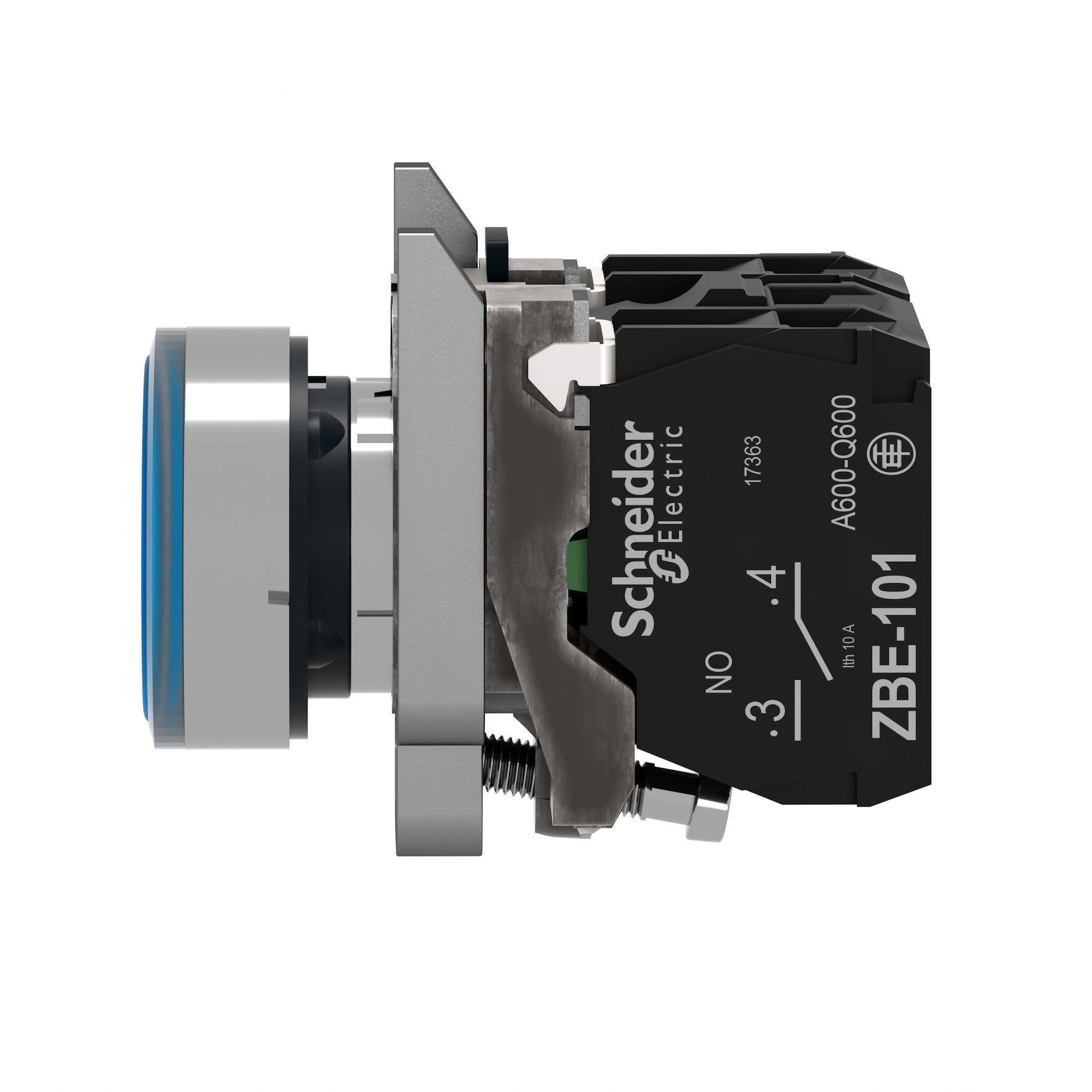

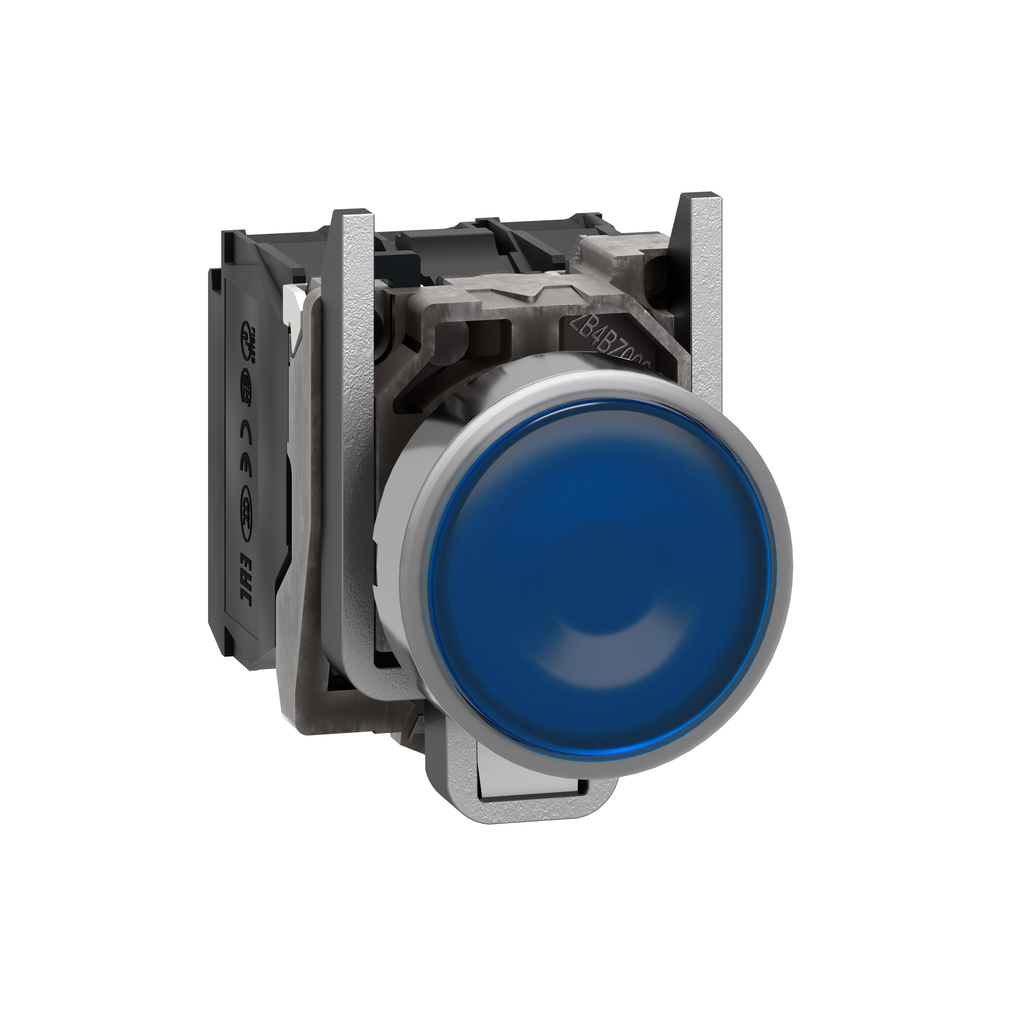

Schneider Electric XB4BW36B5 Square D 22 mm 24 VAC/VDC 18 mA 1NO 1NC Blue Round Momentary Flush Illuminated Push Button

Product Description

Schneider Electric offers the XB4BW36B5, a blue round momentary flush illuminated push button. This button is designed for use in control and automation applications, providing a reliable interface for machine operation. It operates at 24 VAC/VDC with a current draw of 18 mA. The push button features a spring return mechanism and a metal bezel for durability. Its universal LED ensures clear visibility from a distance, making it suitable for various environments. Installation is straightforward, fitting into standard 22 mm diameter panel cut-outs, allowing quick connections with screw-clamp terminals.

• Durable metal construction for harsh environments
• Quick and easy installation in standard cut-outs
• Bright and long-lasting LED illumination

Product Highlights

This push button is ideal for applications requiring high impact resistance, vibration durability, and versatility in temperature ranges.

Product Information

Standard Information

• Brand: Schneider Electric
• Catalog Number: XB4BW36B5

Technical Specifications

• Type: Illuminated Pushbutton
• Color: Blue
• Voltage: 24 Volt AC/DC
• Current: 18 mA
• Amperage: 10 Amp
• Action: Momentary
• Operating Temperature: -40 to 70 degrees C
• Dimensions: 101 mm depth, 30 mm width, 47 mm height
