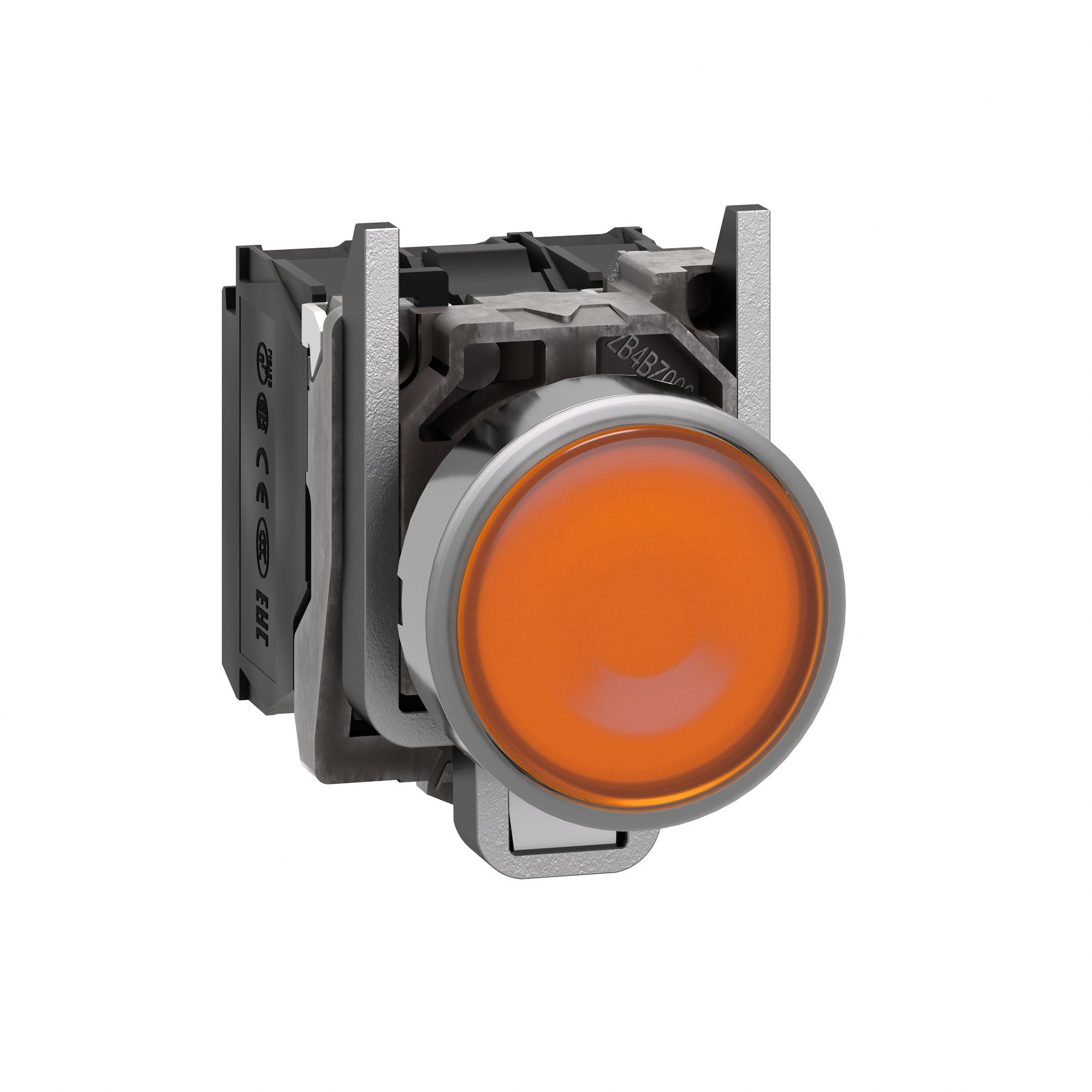

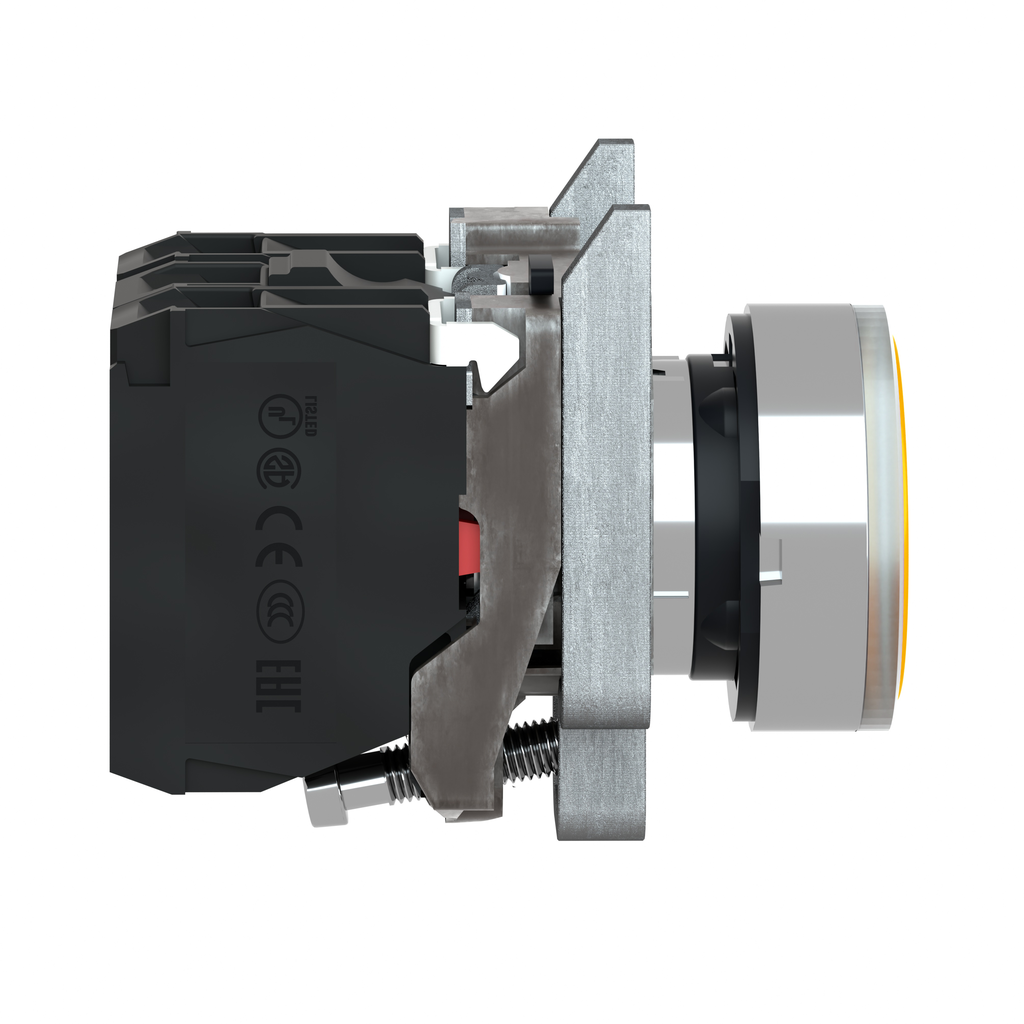

Schneider Electric XB4BW35G5 Illuminated Push Button 110-120V AC 22mm

Product Description

The Schneider Electric XB4BW35G5 is a round momentary flush illuminated push button operating at 110 to 120 volts AC with a current rating of fourteen milliamps. This push button is designed to be installed in standard twenty-two millimeter panel cut-outs. Its bright yellow LED provides clear visibility from a distance. The robust construction includes a chromium plated metal bezel, making it durable and suited for harsh conditions.

• Powerful and bright LED indication
• Impact and water resistant with IP66/IP67/IP69K rating
• Compatible with standard panel layouts

Product Highlights

This illuminated push button enhances control interfaces in industrial machines, ensuring a reliable operation.

Product Information

Standard Information

• Manufacturer: Schneider Electric
• Brand: Schneider Electric

Technical Specifications

• Catalog Number: XB4BW35G5
• Operating Voltage: 110-120 Volt AC
• Current Rating: 14 mA
• Action Type: Slow-break
• Enclosure Rating: NEMA 4/4X/13
• Width: 30 mm
• Height: 47 mm
• Depth: 101 mm
