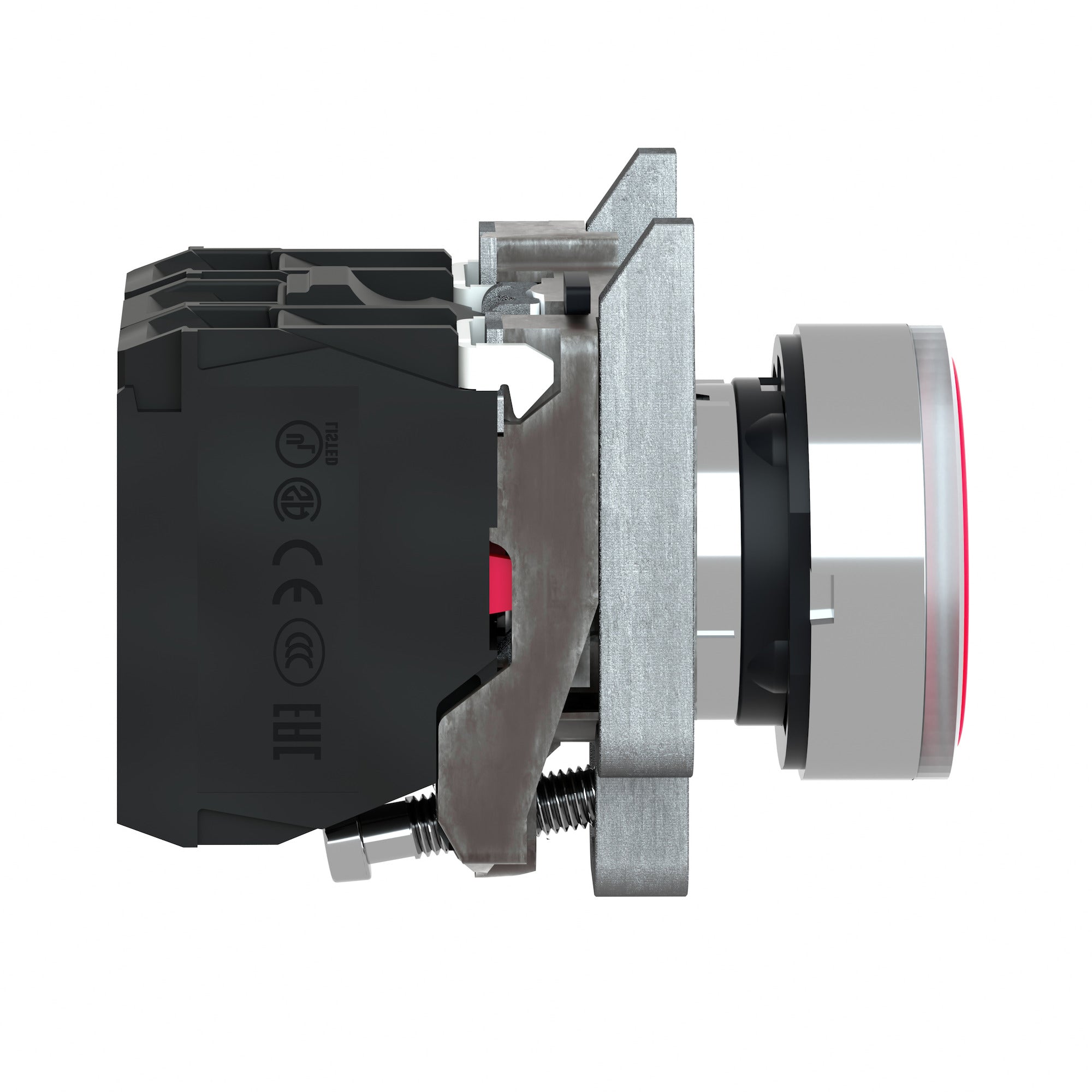

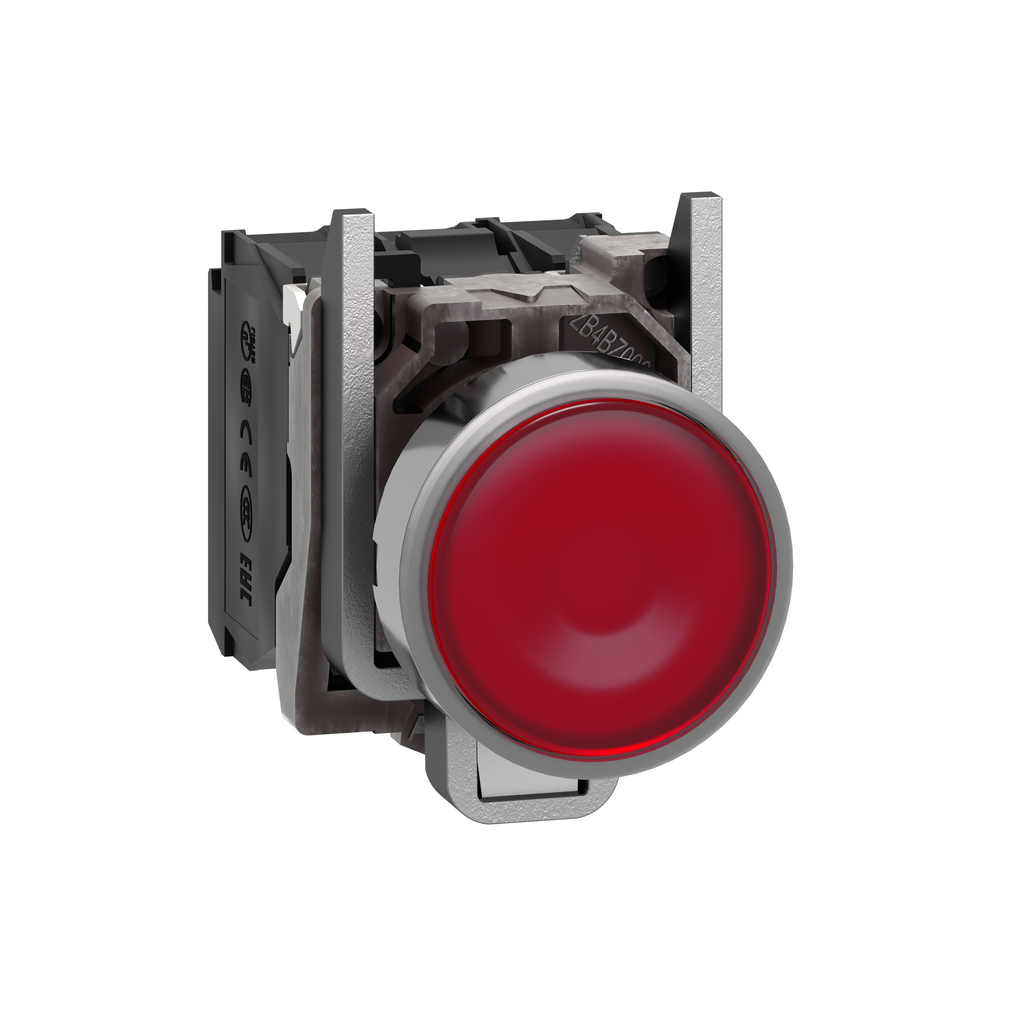

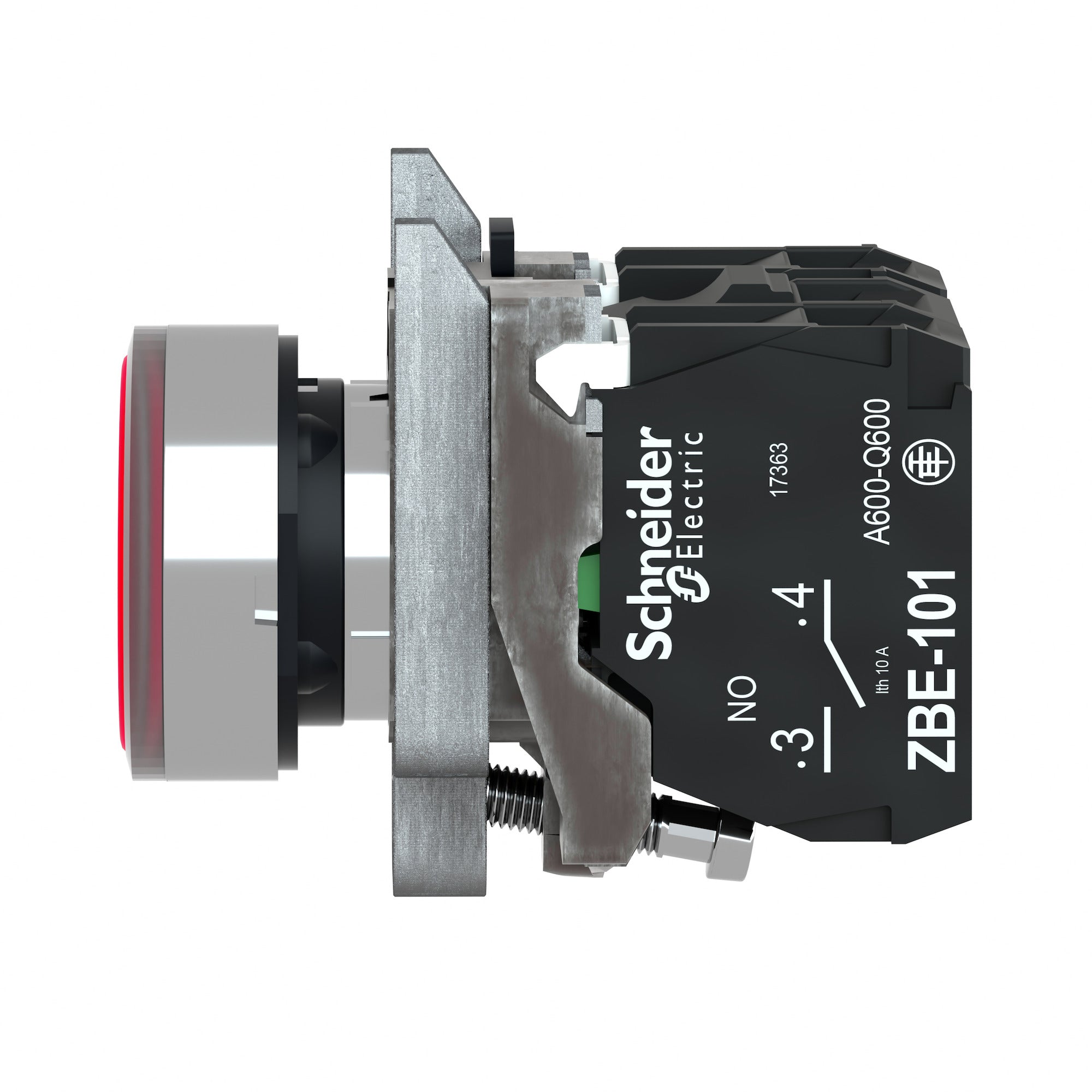

Schneider Electric XB4BW34G5 Square D 22 mm 110-120 Volt AC Illuminated Push Button

Product Description

The Schneider Electric XB4BW34G5 is a 22 mm red round momentary illuminated push button designed for control and automation applications. This product operates at 110 to 120 volts AC and features an ergonomic interface. The button is installed in standard panel cutouts and connects to control circuits via screw clamp connections. The integral LED offers visibility even from a distance, enhancing user experience in various environments.

• Operates with a spring return mechanism
• Rated for 14 mA current
• Impact, dust, water, and vibration resistant with IP66/IP67/IP69/IP69K ratings

Product Highlights

This illuminated push button is ideal for both indoor and outdoor use, capable of withstanding harsh conditions while providing reliable performance.

Product Information

Standard Information

• Catalog Number: XB4BW34G5
• Manufacturer: Schneider Electric

Technical Specifications

• Type: Illuminated push-button
• Voltage: 110 to 120 Volt AC
• Current: 14 mA
• Actuator: Red flush, spring return
• Amperage: 10 Amp
• Enclosure Type: NEMA 4/4X/13
• Head Type: Standard
• Operating Temperature: -40 to 70 degrees Celsius
