Schneider Electric XB4BW34B5 Illuminated Push Button 24V AC DC 1NO 1NC

Product Description

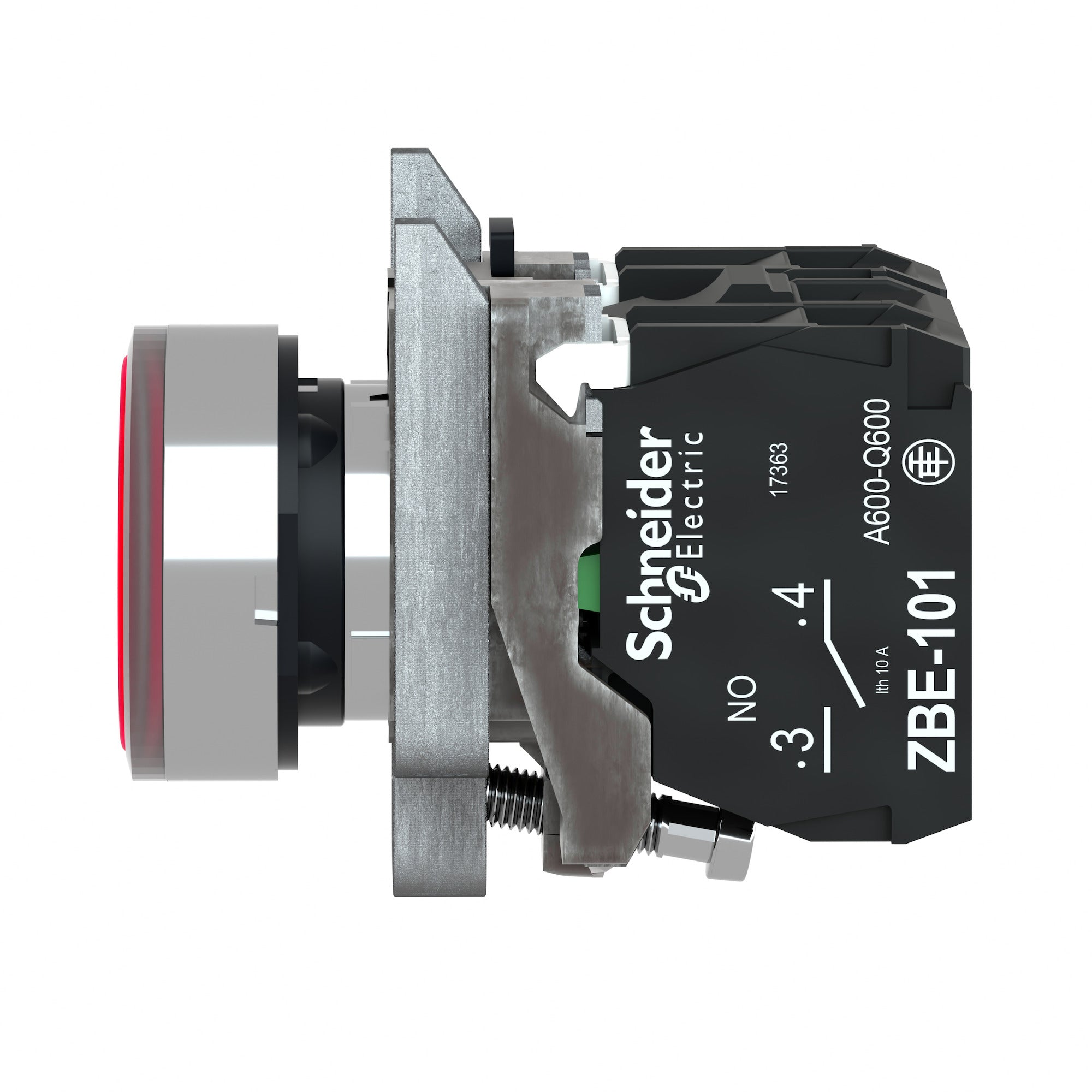

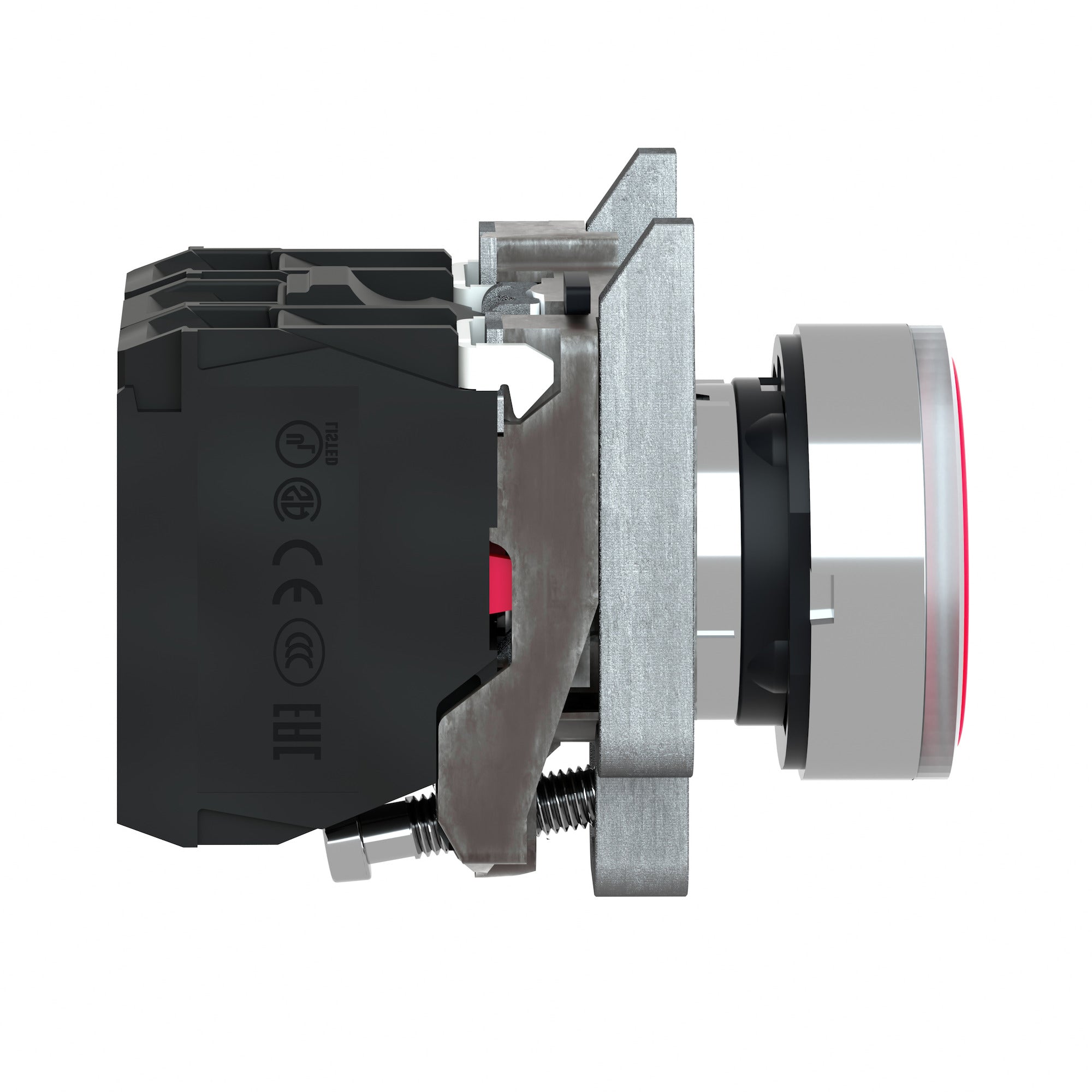

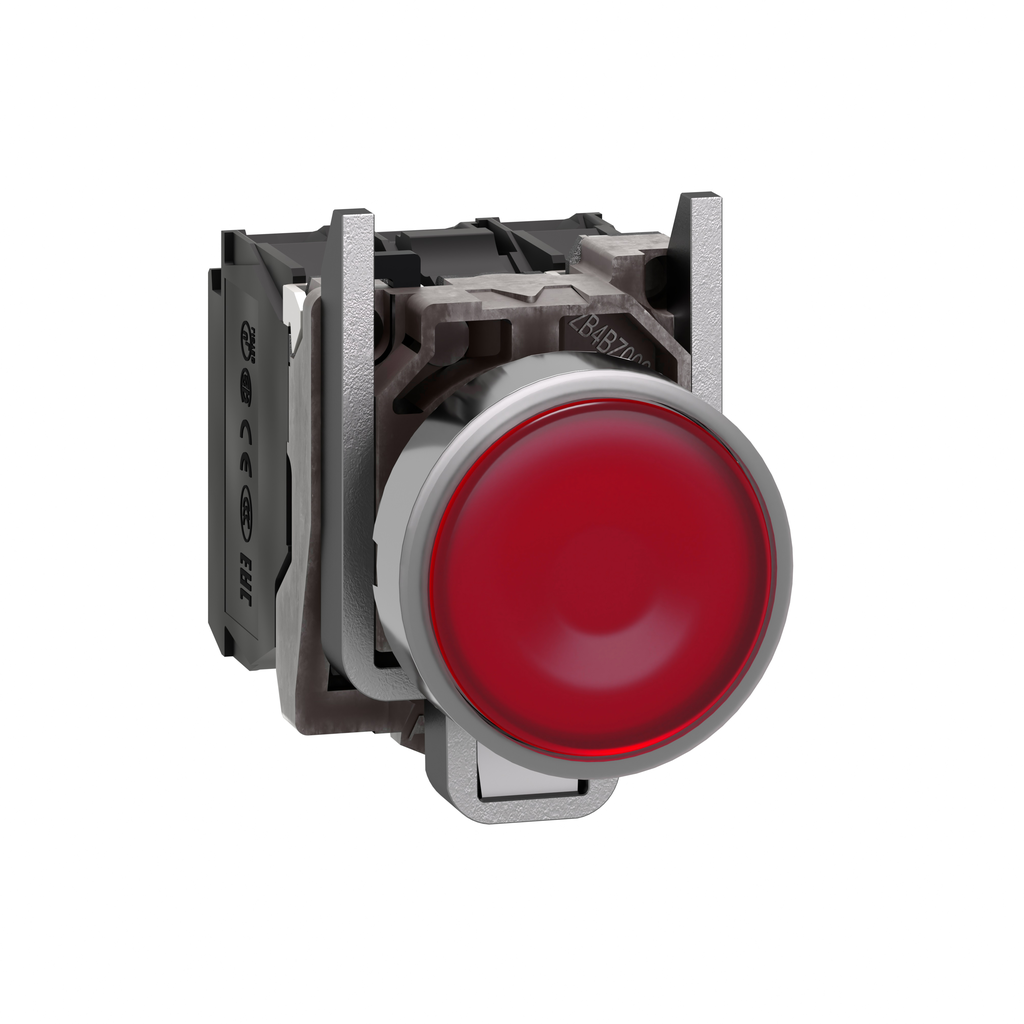

The Schneider Electric XB4BW34B5 is a red round momentary flush illuminated push button designed for control applications. It operates at 24 volts AC or DC with a current of eighteen milliamps. This push button features a spring return mechanism and a universal LED for visibility. It is constructed with a durable metal bezel that provides an ergonomic interface for machine control.

• Suitable for installation in standard 22 mm panel cut-outs.
• Provides bright LED illumination visible from a distance.
• Offers excellent resistance to dust, water, and vibrations with an IP66/IP67/IP69/IP69K rating.

Product Highlights

This push button is ideal for environments requiring reliable operation. Its robust design allows for easy installation and connection to control circuits through screw-clamp connections.

Product Information

Standard Information

• Brand: Schneider Electric
• Manufacturer: Square-D / Schneider

Technical Specifications

• Catalog Number: XB4BW34B5
• Current: 18 mA
• Voltage: 24 Volt AC/DC
• Diameter: 2.24 inches
• Height: 47 mm
• Width: 30 mm
• Depth: 57 mm
• Operating Temperature: -40 to 70 degrees C
• Weight: 0.21 lb
• Contact Configuration: 1 NO + 1 NC
• Enclosure Rating: NEMA 4/4X/13
• Indicator Color: Red
• Warranty Length: 18 months
