Schneider Electric XB4BW33G5 Square D 22 mm 120 VAC 14 mA 1NO 1NC Green Round Momentary Flush Illuminated Push Button

Product Description

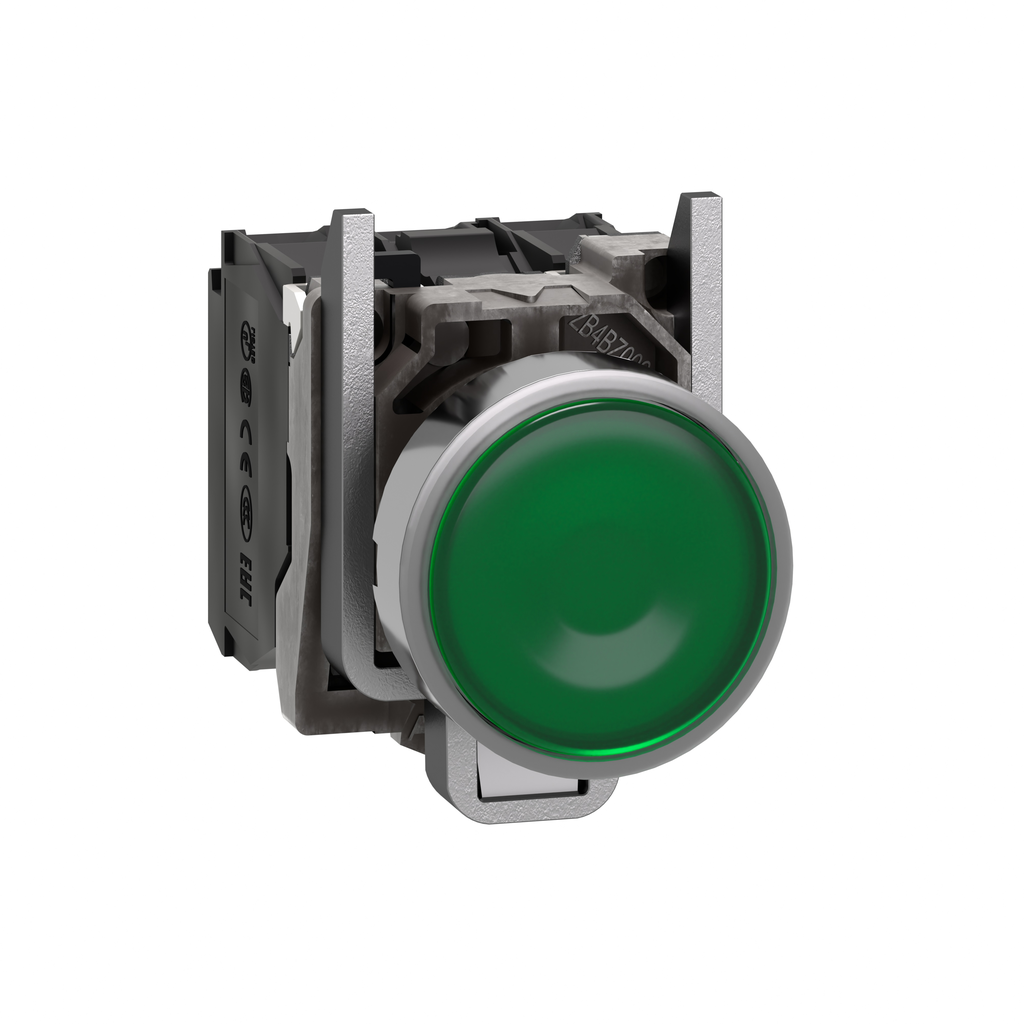

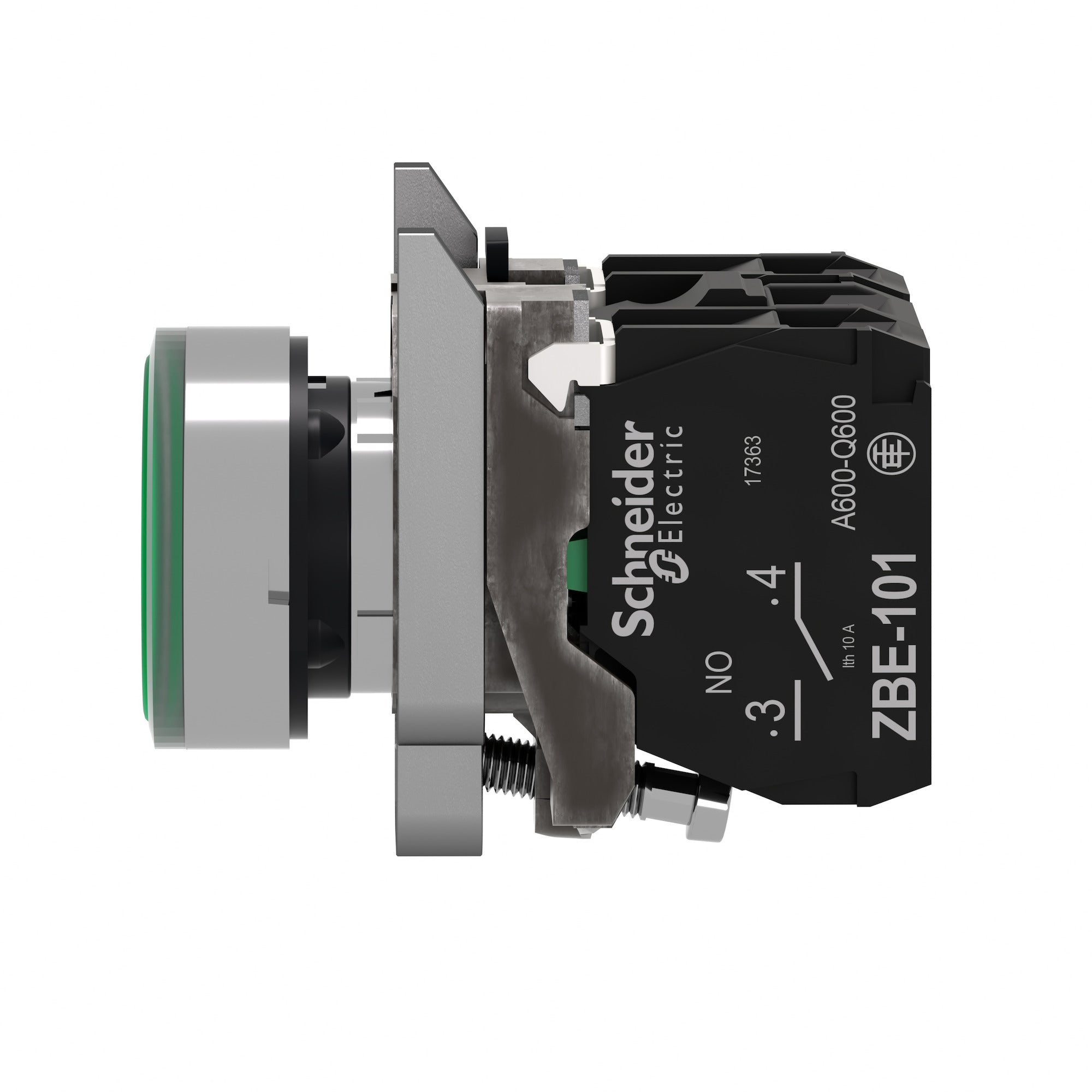

The Schneider Electric XB4BW33G5 is a 22 mm illuminated push button that operates at 120 volts AC. This device uses a universal LED for effective illumination. Designed with a green color and metal bezel, it provides a clear visual signal for machine control. It integrates easily into standard 22 mm panel cut-outs and connects to control circuits through screw-clamp terminals. The bright LED light allows visibility from a distance, ensuring ease of use in diverse environments.

• Operates on 110V to 120V AC
• Impact resistant, dust resistant, and water resistant
• IP66/IP67/IP69 rated for harsh environments

Product Highlights

This push button is suitable for a range of applications, especially in manufacturing sectors such as automotive, textiles, and timber. It meets international standards and is certified for global use with UL and CE markings. It also includes a warranty of 18 months.

Product Information

Standard Information

• Catalog Number: XB4BW33G5
• Brand: Schneider Electric

Technical Specifications

• Type: Illuminated push-button
• Depth: 57 mm
• Width: 30 mm
• Height: 47 mm
• Weight: 0.21 lb
• Current: 14 mA
• Voltage: 110...120 Volt AC
• Amperage: 10 Amp
