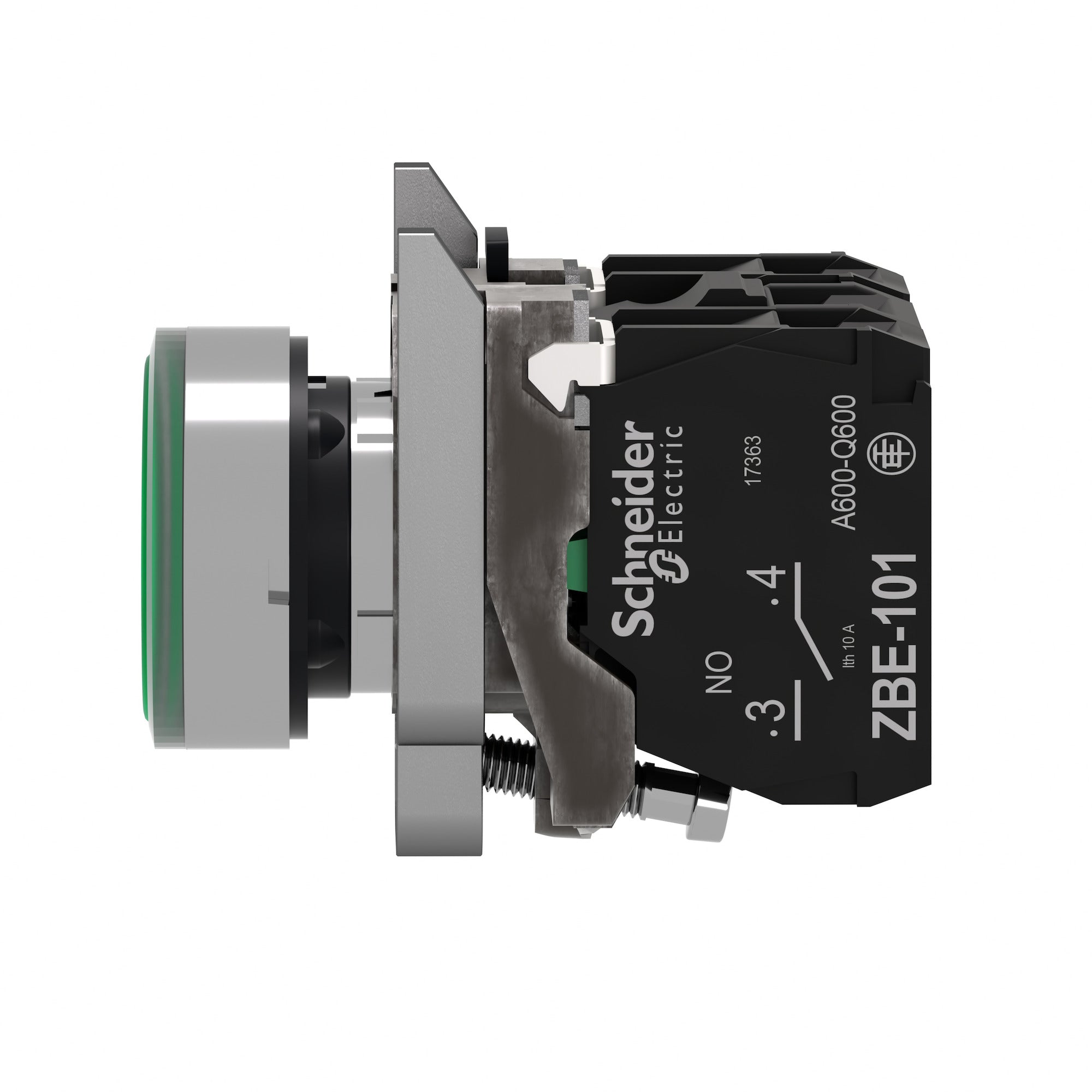

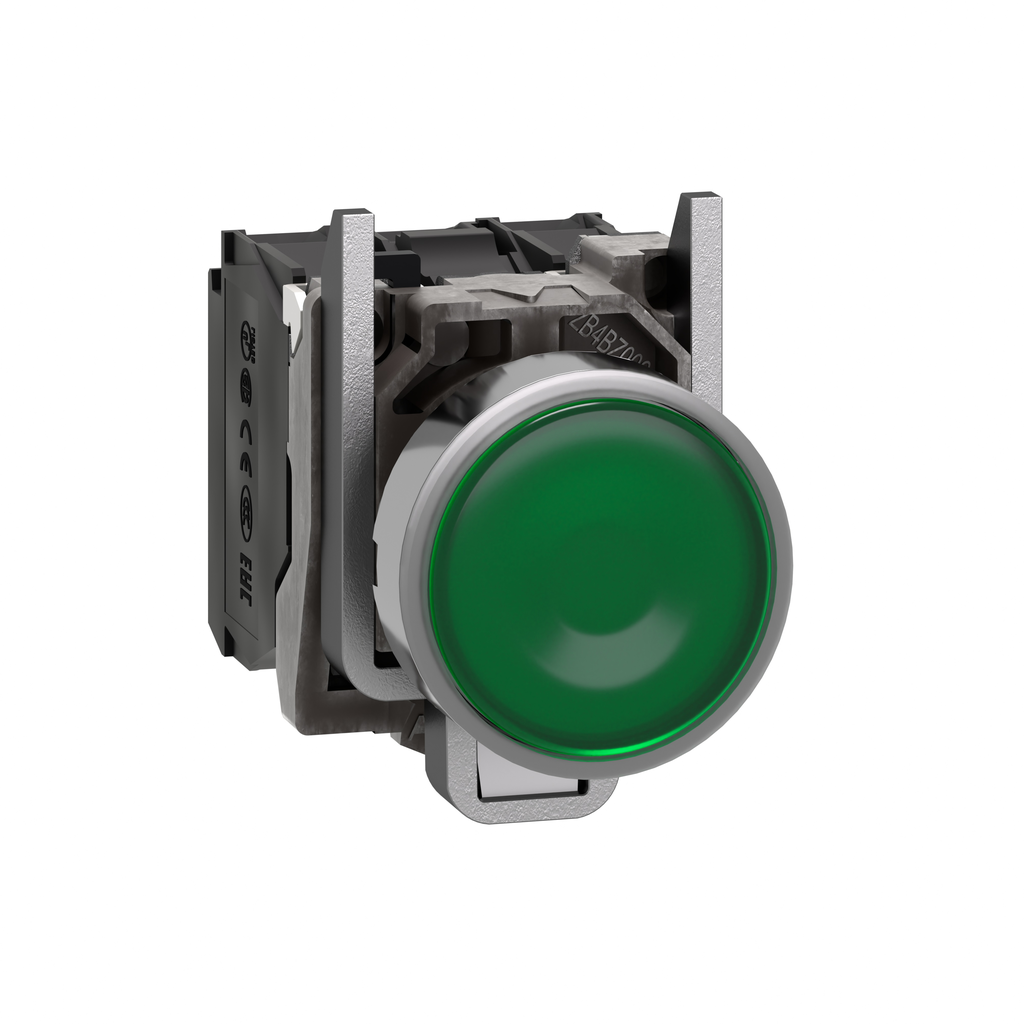

Schneider Electric XB4BW33B5 Square D 22 mm 24 VAC/VDC 18 mA 1NO 1NC Green Round Momentary Flush Illuminated Push Button

Product Description

Schneider Electric's XB4BW33B5 is a 22 mm illuminated push button designed for control and automation applications. This push button operates at 24V AC or DC with a low current draw of 18 mA. It features a spring return mechanism and utilizes a universal LED for illumination. The product has a chromium plated metal bezel, making it ideal for various industrial environments.

• Meets NEMA 4/4X/13 standards for durability and resistance.
• Quick installation into standard panel cut-outs with screw clamp connections.
• Rated for up to 10 Amperes, allowing for both low and high power applications.

Product Highlights

This illuminated push button provides clear visibility from a distance, making it suitable for controlling machinery. Its IP66, IP67, and IP69K ratings ensure it can withstand harsh conditions, including exposure to dust, water, and vibration.

Product Information

Standard Information

• Manufacturer: Schneider Electric
• Brand: Harmony XB4

Technical Specifications

• Catalog Number: XB4BW33B5
• Color: Green
• Size: 2.24 inches
• Depth: 57 mm
• Width: 30 mm
• Height: 47 mm
• Weight: 0.21 lb
• Voltage Rating: 24 Volt AC/DC 50/60 Hz
• Amperage Rating: 10 Amp
• Environmental Conditions: Water-tight, dust-tight
