SCHNEIDER ELECTRIC XB4BW3365 RELAYS & SWITCHES
SCHNEIDER ELECTRIC Schneider Electric XB4BW3365 22 mm 250 VAC/VDC 14 mA 1NO 1NC Green Round Momentary Flush Illuminated Push Button
SCHNEIDER ELECTRIC Schneider Electric XB4BW3365 22 mm 250 VAC/VDC 14 mA 1NO 1NC Green Round Momentary Flush Illuminated Push Button
SCHNEIDER ELECTRIC XB4BW3365 RELAYS & SWITCHES
Schneider Electric XB4BW3365 22 mm 250 VAC/VDC 14 mA 1NO 1NC Green Round Momentary Flush Illuminated Push Button
Schneider Electric XB4BW3365 22 mm 250 VAC/VDC 14 mA 1NO 1NC Green Round Momentary Flush Illuminated Push Button

Schneider Electric XB4BW3365 22 mm 250 VAC/VDC 14 mA 1NO 1NC Green Round Momentary Flush Illuminated Push Button

SCHNEIDER ELECTRIC
Brand: SCHNEIDER ELECTRIC
SKU: XB4BW3365
Availability: In Stock

Ships same day if ordered by 12 pm
$125.93
$125.93
Manuals:
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

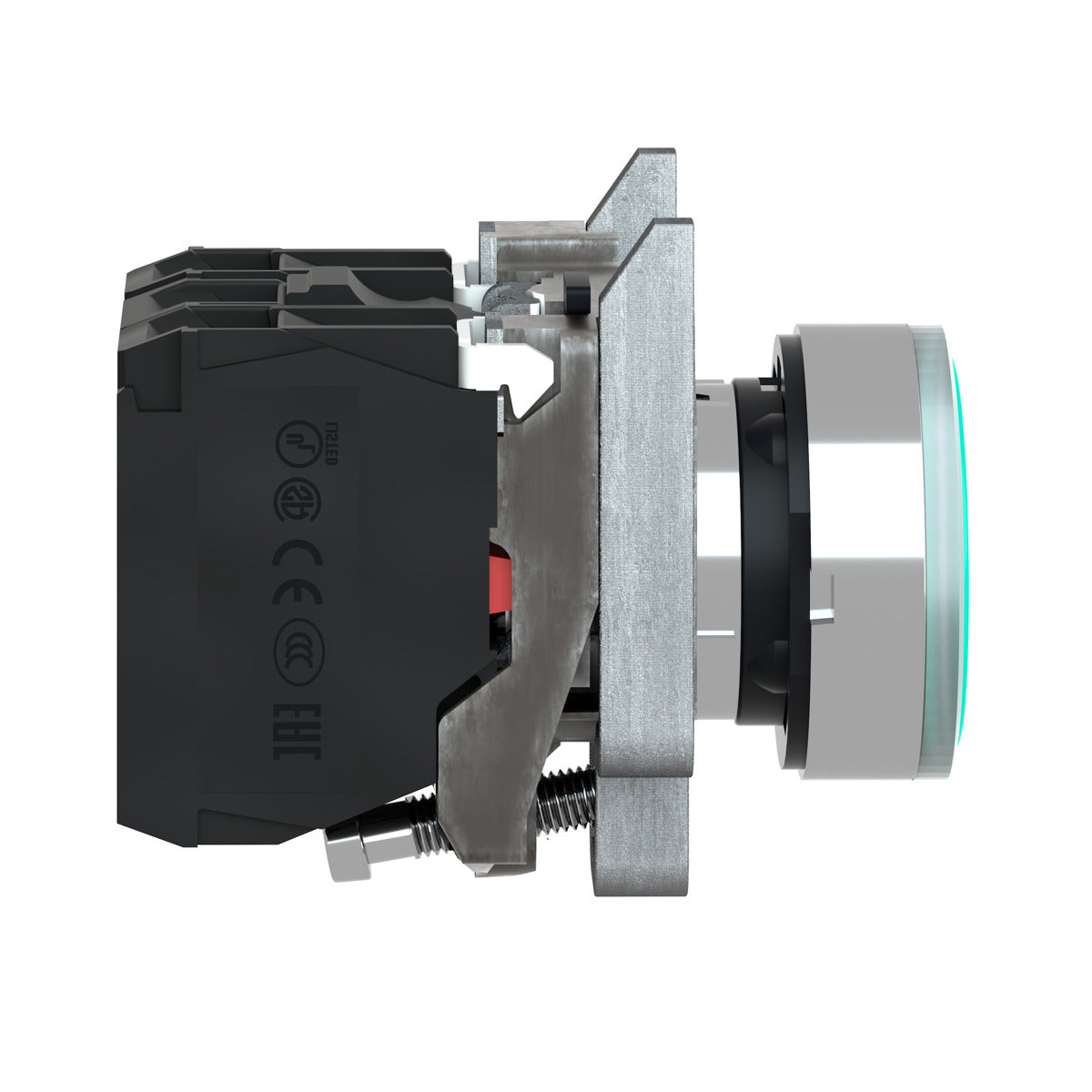

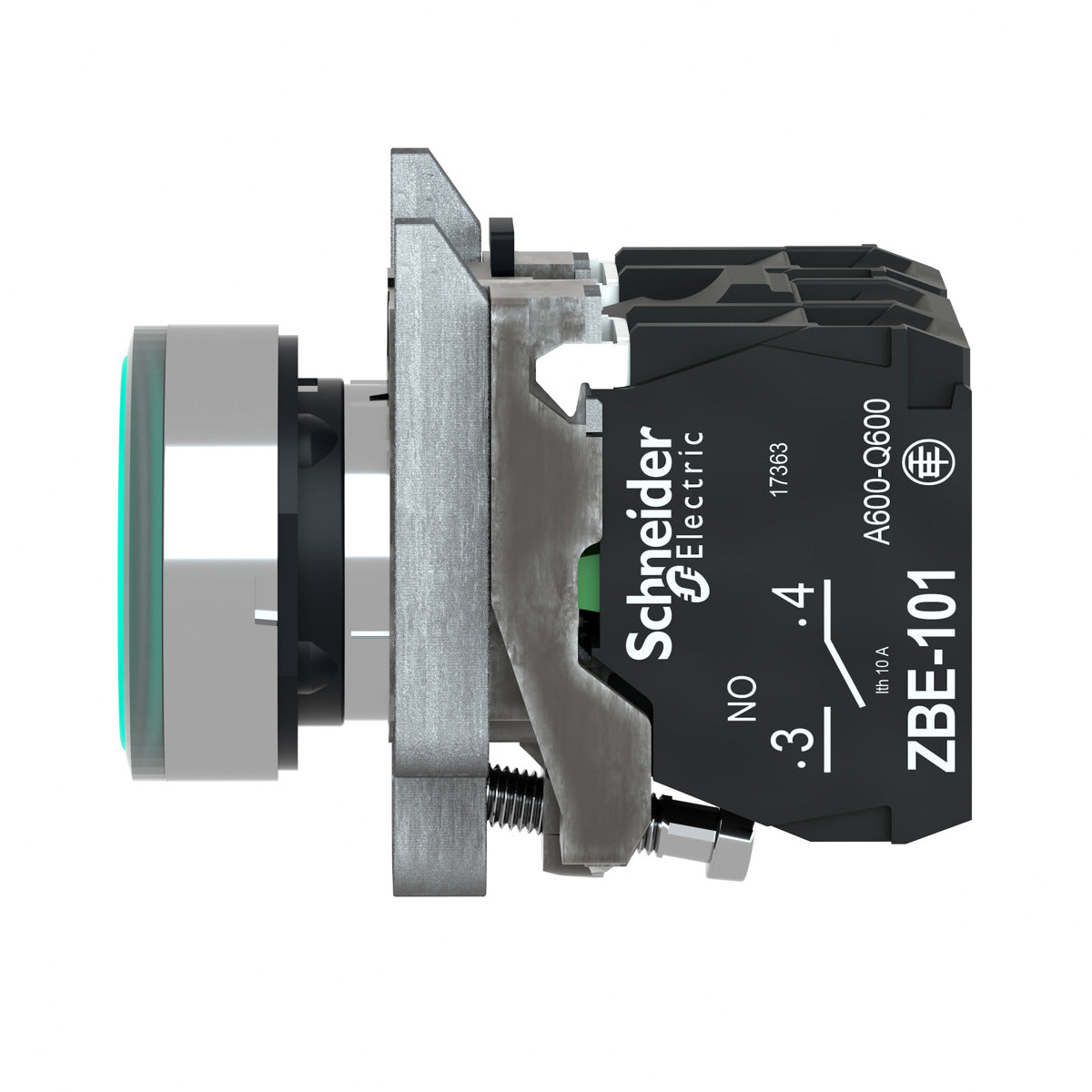

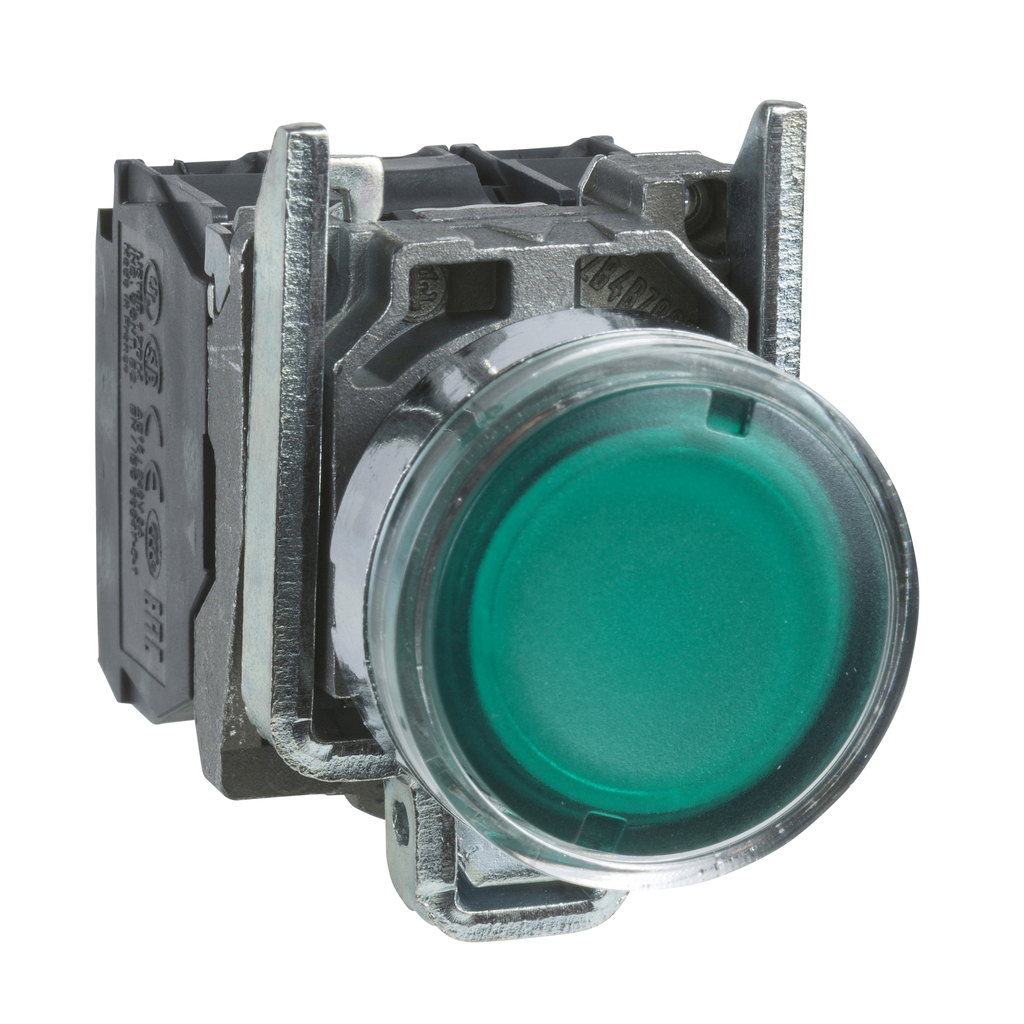

The Schneider Electric XB4BW3365 is a round momentary flush illuminated push button. It functions at a voltage of up to 250 volts and supports both AC and DC input. The push button has an ergonomic design and is fitted with a metal bezel for durability.

  • Spring return mechanism
  • IP66/IP67/IP69/IP69K rated for resistance against dust and water
  • Easily installed in standard 22 mm cut-outs

Product Highlights

This push button is designed to provide a clear visual indication of its status. It is ideal for applications requiring a reliable control interface in industrial environments.

Product Information

Standard Information

  • Catalog Number: XB4BW3365
  • Brand: Schneider Electric
Technical Specifications
Weight
0.21 lb
Voltage
<= 250 Volt
Dimensions
Diameter 2.24 inches, Depth 57 mm, Width 30 mm, Height 47 mm
Actuator Type
Green flush, spring return
IP Rating
IP66/IP67/IP69/IP69K
Amperage
10 Amp
Contact Configuration
1 NO + 1 NC
Country of Origin
Czech Republic
