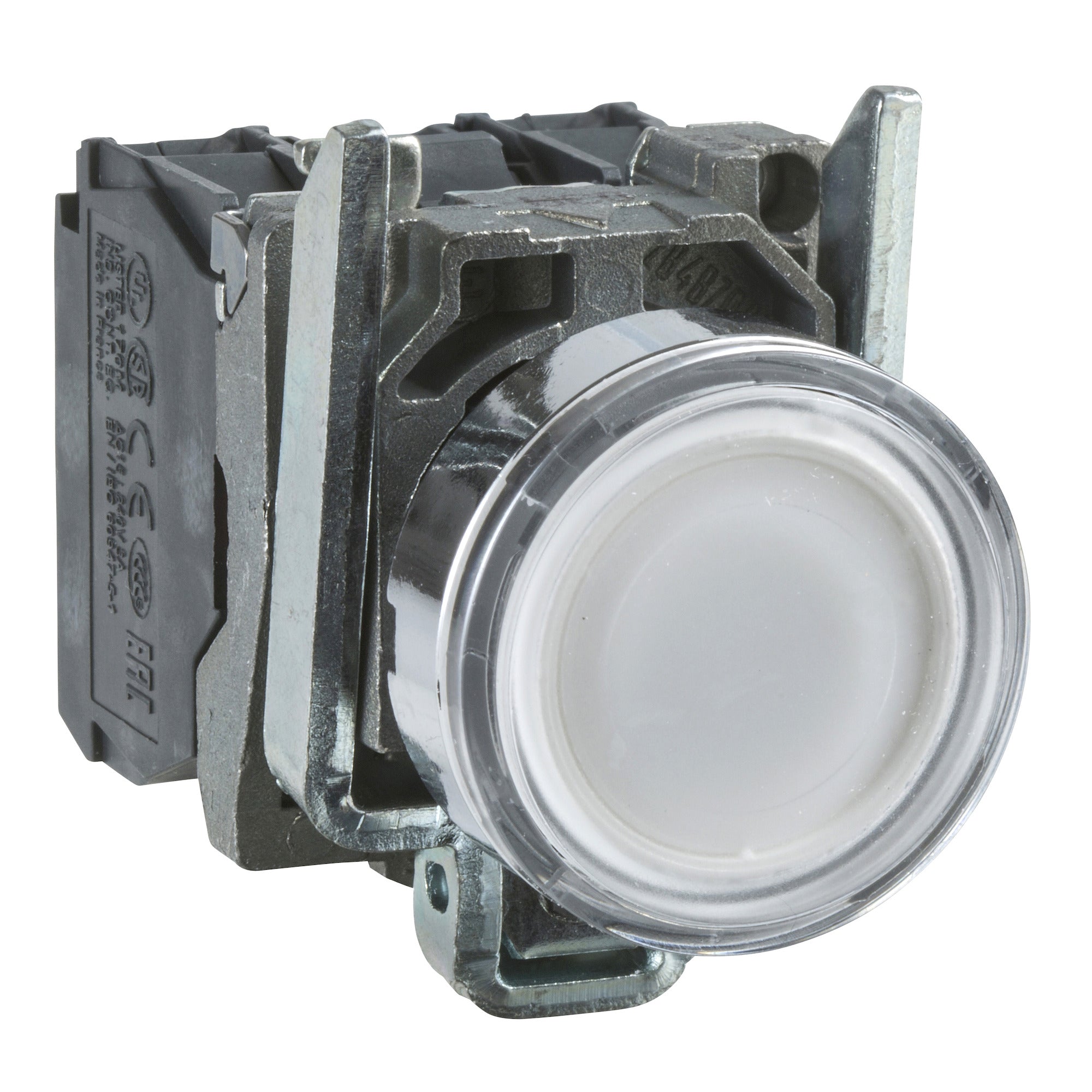

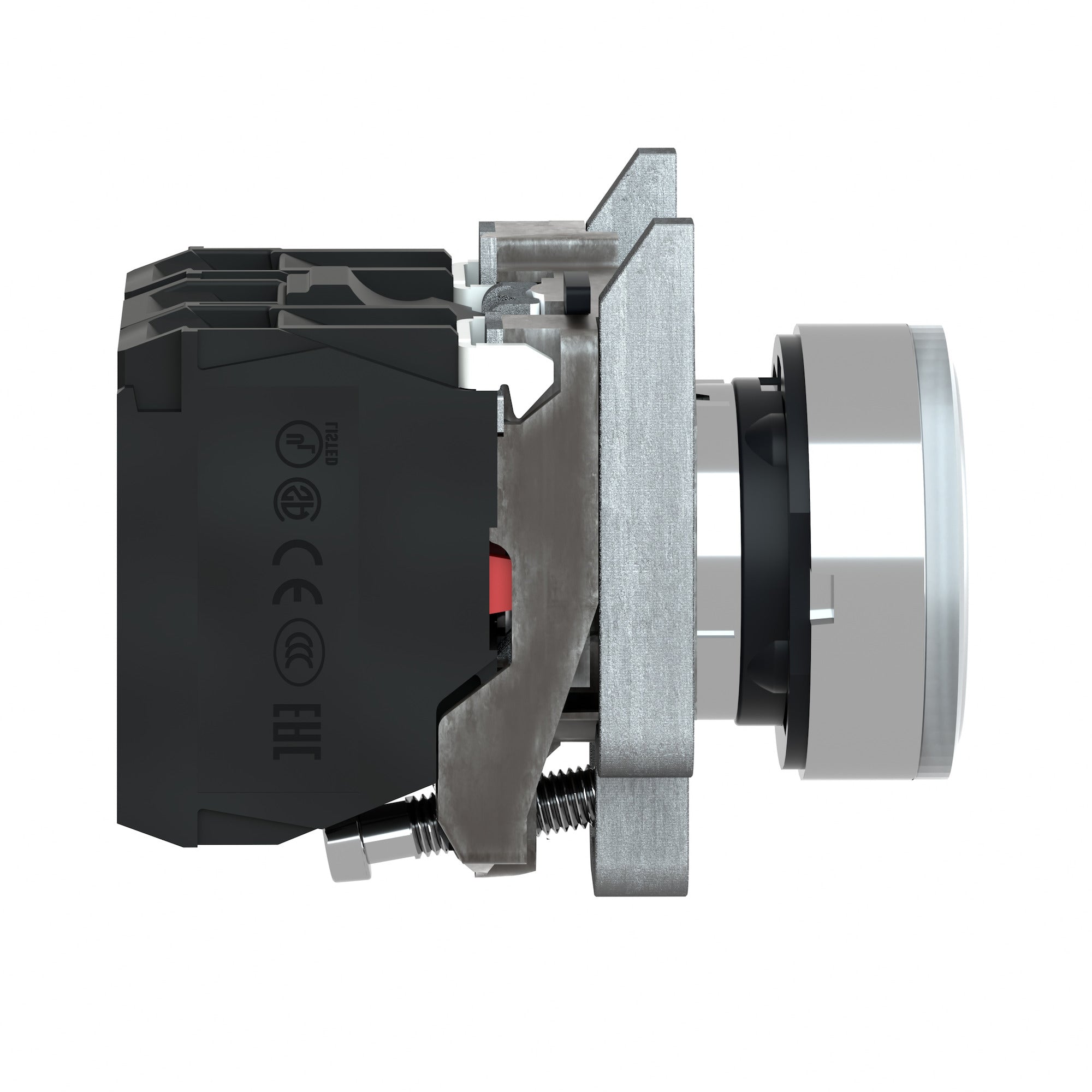

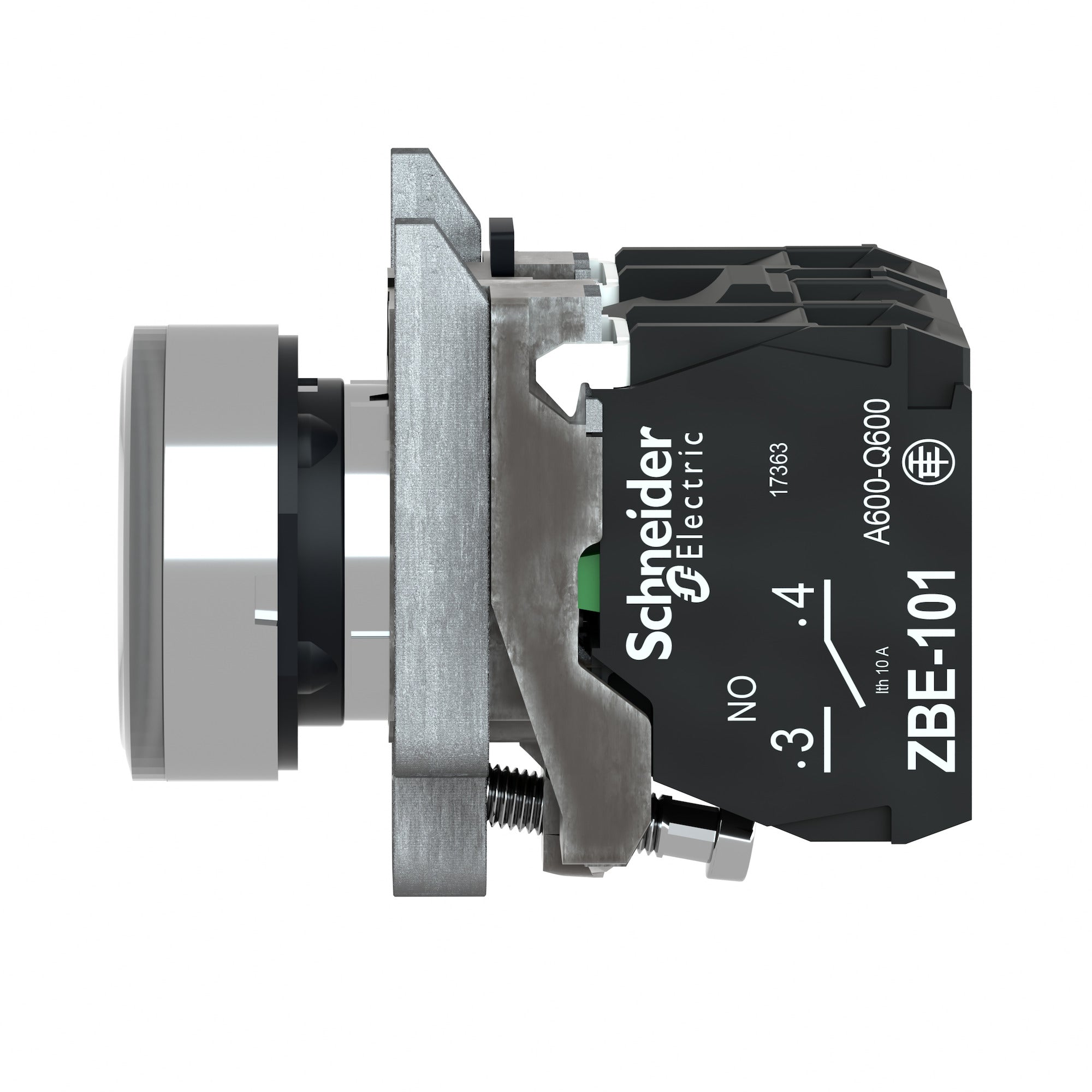

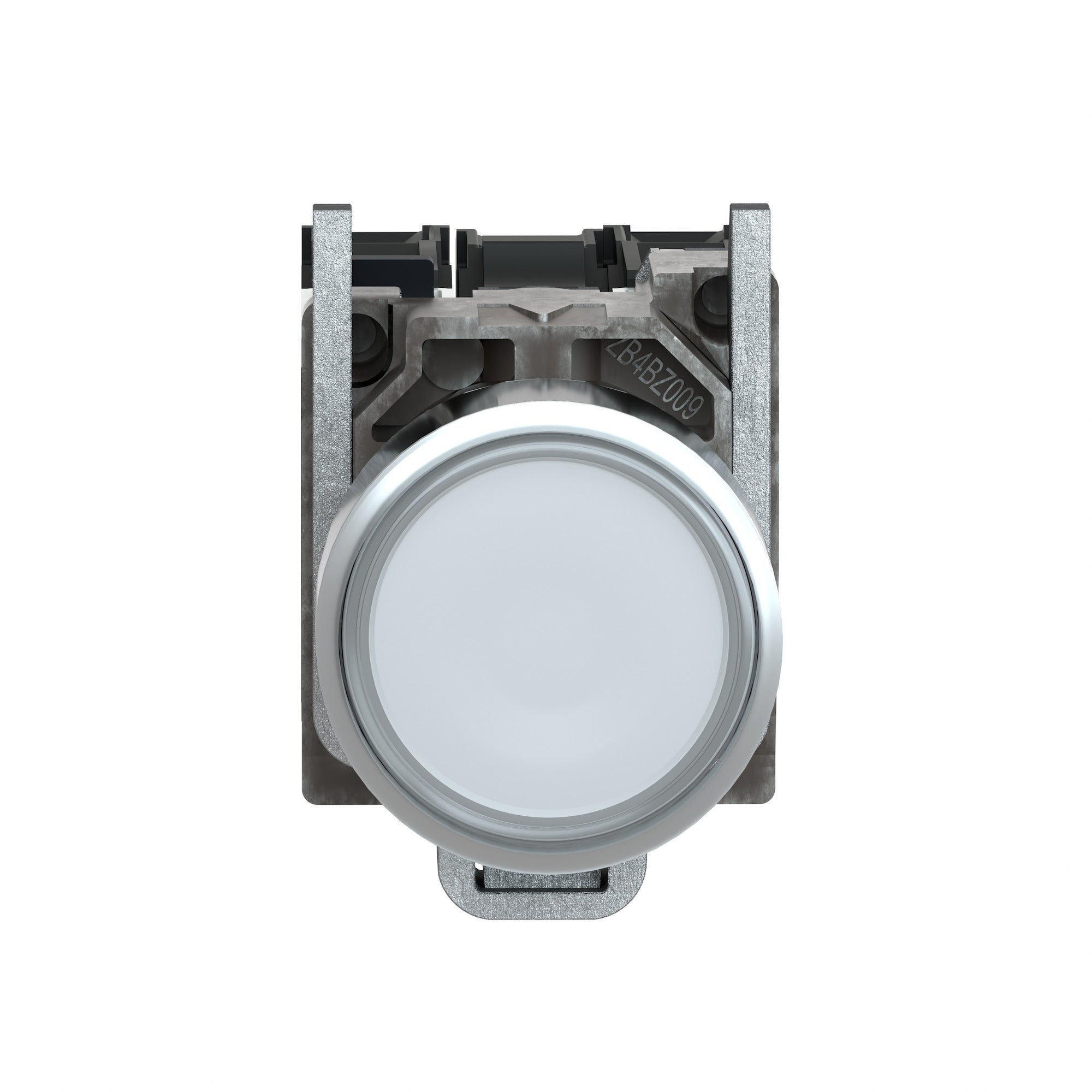

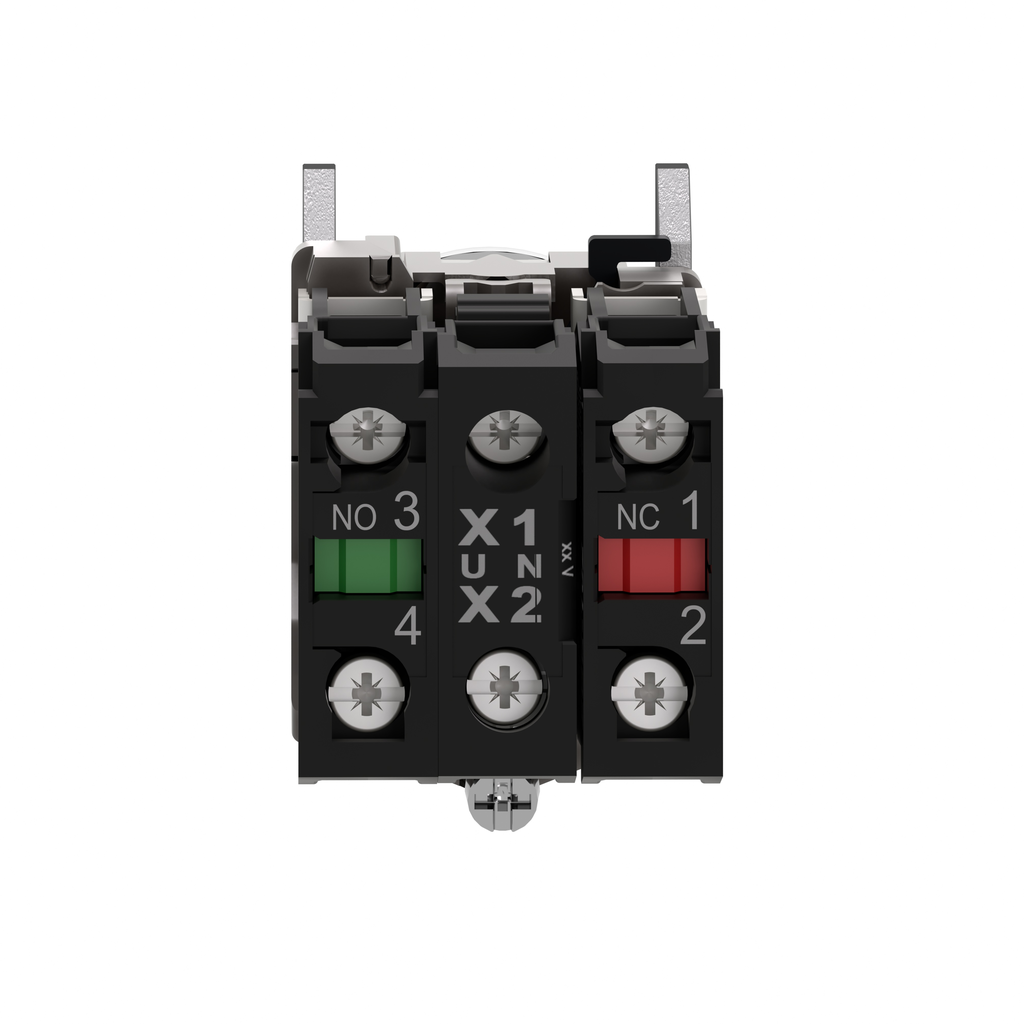

Schneider Electric XB4BW31B5 Illuminated Push Button 24 VAC/VDC 22mm

Product Description

The Schneider Electric XB4BW31B5 is a 22 mm illuminated push button designed for use in control and automation applications. It operates at 24 volts AC or DC and features a spring return mechanism. This push button incorporates a universal LED that provides a clear visual indication of its status. With a metal bezel, it can easily fit into standard 22 mm panel cut-outs using screw-clamp connections.

• Spring return mechanism
• IP66/IP67/IP69/IP69K rated for dust and water resistance
• Long-lasting LED for visibility

Product Highlights

This push button is built to endure harsh environments while providing reliable operation. It is suitable for various applications including automation controls and machinery interfaces. Its design ensures easy installation and durability.

Product Information

Standard Information

• Brand: Schneider Electric
• Manufacturer: Square-D / Schneider

Technical Specifications

• Catalog Number: XB4BW31B5
• Current: 18 mA
• Voltage: 24 Volt AC/DC
• Actuator: Spring return, white flush
• Depth: 2.24 inches
• Width: 1.18 inches
• Height: 1.85 inches
• Weight: 0.21 lb
