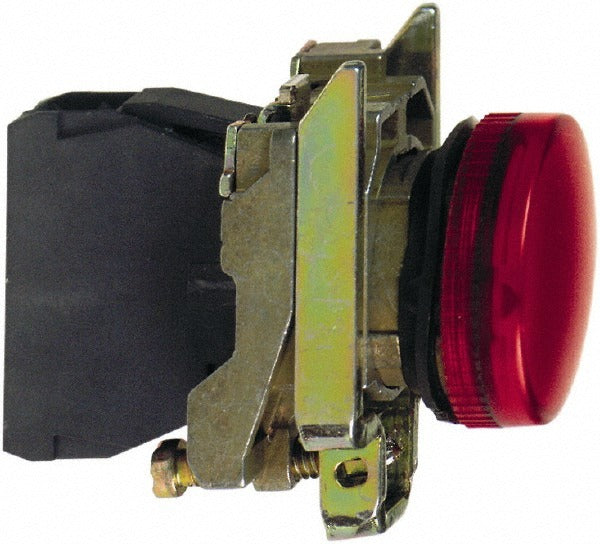

Schneider Electric XB4BVM4 Led Pilot Light 230-240V 30mm

Product Description

The SCHNEIDER ELECTRIC XB4BVM4 is a 30mm LED pilot light designed for industrial panel and machine control applications. Operating at 230-240 volts AC at 50/60 Hz, it features a red round lens and uses an LED lamp for long service life and low power draw. The unit connects via screw clamp terminals, making field wiring straightforward for electricians and control panel builders. Built to withstand demanding environments, the XB4BVM4 carries vibration-resistant and water-resistant ratings, making it suitable for installations where moisture or mechanical stress is a concern.

This pilot light is used in industrial and commercial control panels, machinery, and automation enclosures where a durable, reliable status indicator is required. The 30mm form factor is a widely adopted industry standard, fitting standard 30mm panel cutouts found across a broad range of equipment. Its resistance ratings make it appropriate for washdown areas, outdoor-rated enclosures, and high-vibration machinery environments. Licensed electricians and control panel technicians are the typical installers for this type of device.

Key Features

• LED lamp type for extended service life and reduced maintenance
• 230-240 volt AC operation at 50/60 Hz
• Red round lens for clear status indication
• Screw clamp connector for secure, tool-accessible field wiring
• Vibration-resistant and water-resistant construction
• Meets NEMA 4X, UL 508, CSA, and multiple EN/IEC standards

Compatibility

Designed as an OEM-style replacement or direct-install 30mm pilot light for industrial control panels and machinery using standard 30mm panel cutouts.

Installation Notes

Installation should be performed by a qualified electrician in accordance with the National Electrical Code (NEC) and applicable local codes. De-energize and lockout/tagout the panel before installing or replacing any pilot light. Verify supply voltage matches the 230-240 volt AC rating before wiring. Screw clamp terminals should be tightened securely to ensure a reliable connection and to maintain the unit's environmental resistance ratings.
