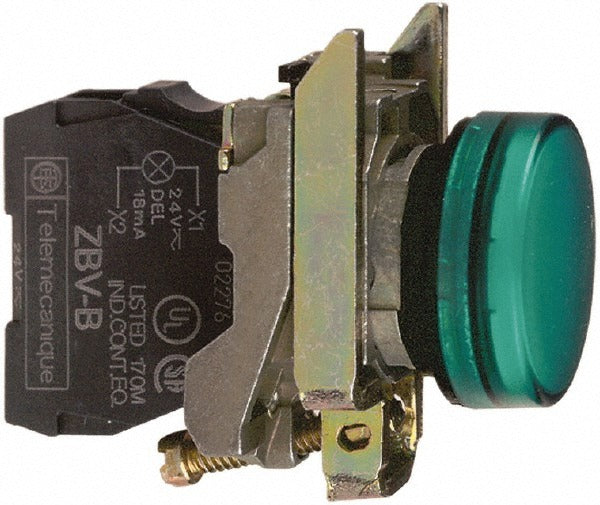

Schneider Electric XB4BVM3 Led Pilot Light 30mm Green

Product Description

The SCHNEIDER ELECTRIC XB4BVM3 is a 30mm LED pilot light designed for panel-mounted status indication in industrial and commercial control systems. Operating at 230-240 volts AC at 50/60 Hz, it uses an energy-efficient LED light source behind a green round lens to provide a clear visual signal of circuit or equipment status. The screw clamp connector simplifies wiring termination, and the unit is rated for both vibration resistance and water resistance, making it suitable for demanding installation environments. Licensed electricians and panel builders install this type of indicator during new panel builds or replacement of failed pilot devices.

The XB4BVM3 is suited for use in industrial control panels, machine control cabinets, and commercial electrical enclosures where a 30mm pilot light is required. Its water-resistant rating makes it appropriate for washdown or outdoor-rated enclosures, including NEMA 4X rated installations. The green lens color conventionally signals a run, on, or normal-status condition in standard panel design practice. It is packaged individually and sold in single-unit quantities.

Key Features

• LED lamp type for long service life and low power draw
• 230-240 volt AC operation at 50/60 Hz
• 30mm mounting diameter with round green lens
• Screw clamp connector for secure, tool-assisted wiring termination
• Vibration resistant and water resistant construction
• NEMA 4X rated; meets UL 508, CSA, and IEC 60947-5-1 standards

Compatibility

Designed as an OEM-style replacement or new-installation pilot light for 30mm panel cutout applications in industrial and commercial control panels requiring 230-240 volt AC LED indication.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the NEC and applicable local codes. De-energize the panel and verify zero voltage with a meter before handling wiring connections. The screw clamp terminal should be tightened with a small flat-blade screwdriver to the connector manufacturer specification. Do not exceed the rated operating voltage of 240 volts AC.
