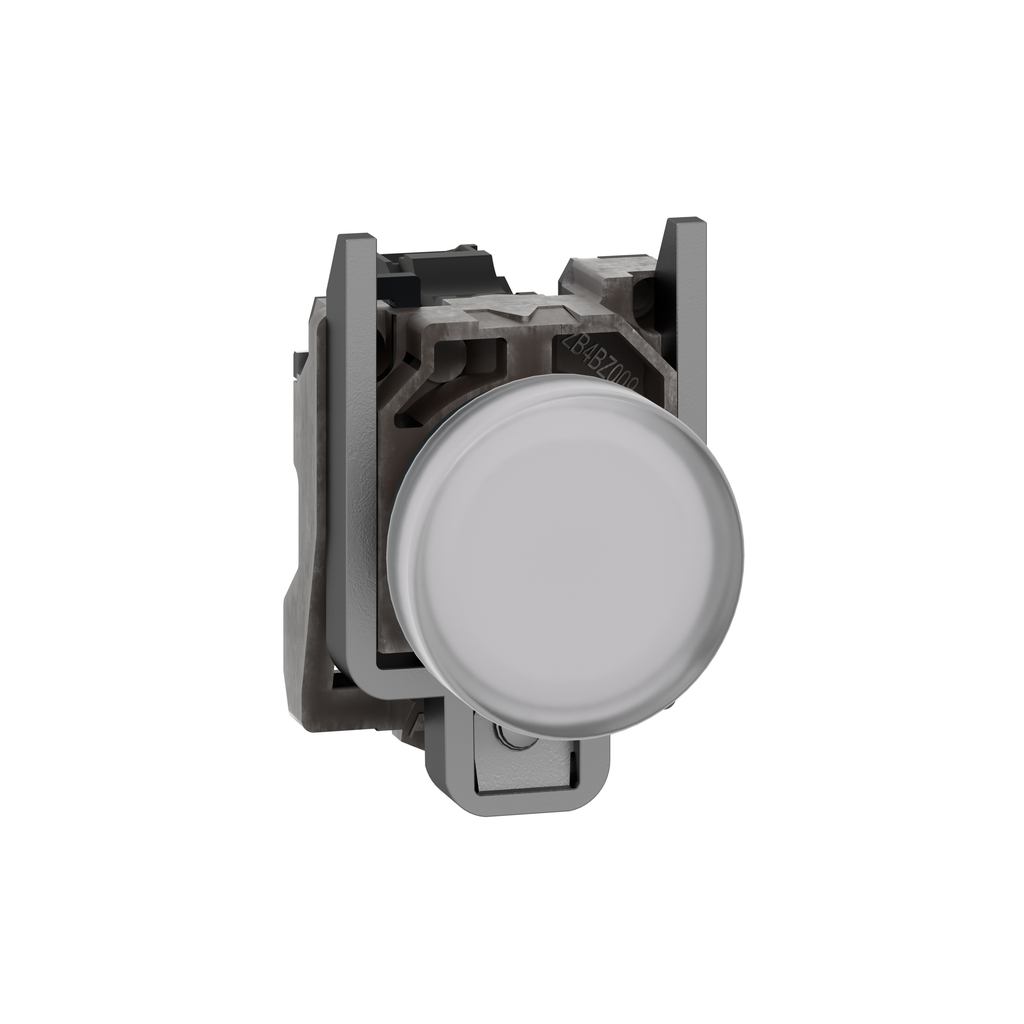

Schneider Electric XB4BVM1 Pilot Light, 230...240V AC

Product Description

The Schneider Electric XB4BVM1 is a modular pilot light that operates on 230 to 240 volts AC and utilizes a universal LED for illumination. This pilot light features a durable metal bezel and is designed for long life with no maintenance required. It is built to fit into standard twenty-two millimeter cut-outs and connects easily using screw-clamp connections. The LED provides bright visibility even from a distance, making it an excellent indicator for machine operations.

• Compatible with standard twenty-two millimeter cut-outs.
• Impact, dust, water, and vibration resistant (IP66/IP67/IP69/IP69K).
• Easily connectable with screw-clamp techniques.

Product Highlights

This pilot light is suitable for harsh operating conditions and is highly visible, ensuring reliable process indication.

Product Information

Standard Information

• Catalog Number: XB4BVM1
• Brand: Schneider Electric

Technical Specifications

• Type: Pilot light
• Voltage: 230...240 Volt AC
• Current: 14 mA
• Temperature Range: -40 to 70 degrees C
• Depth: 54 mm
• Width: 30 mm
• Height: 47 mm
• Weight: 0.18 lb
