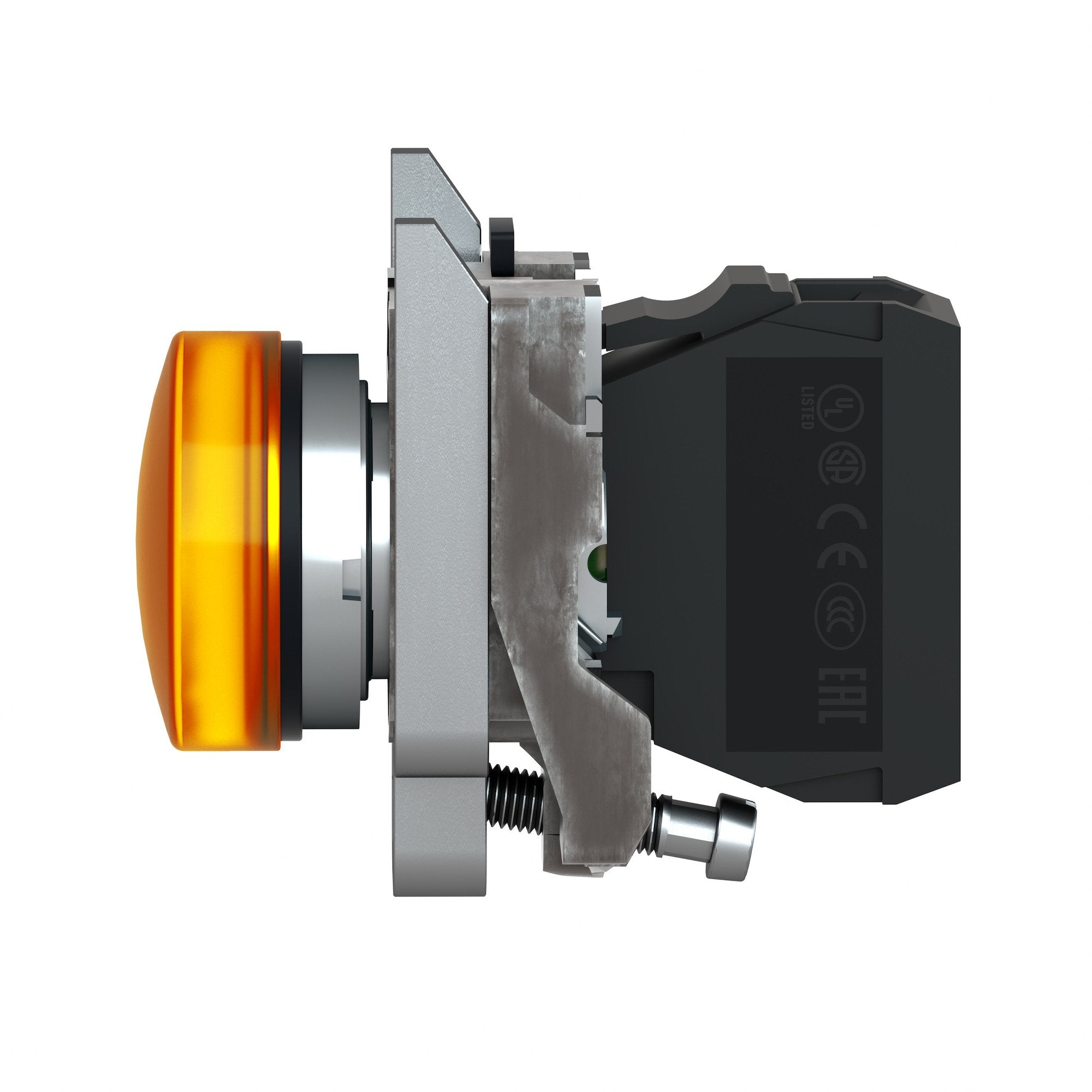

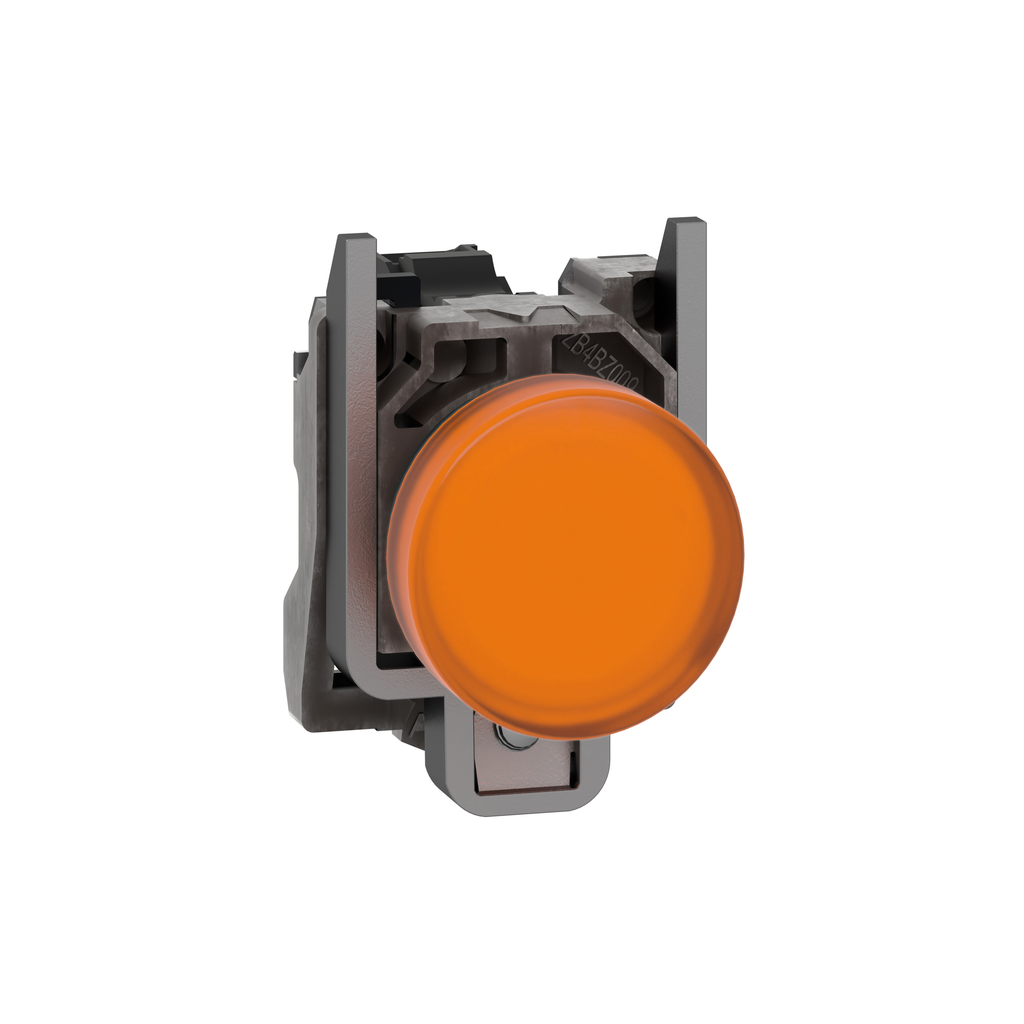

Schneider Electric XB4BVG5 Pilot Light 110-120 Volt AC 22 mm LED

Product Description

The Schneider Electric XB4BVG5 is a pilot light designed for use with 110 to 120 Volt AC power. It features a modular design with a plain lens and utilizes a universal LED for illumination. The metal bezel provides durability while the installation process is straightforward, requiring standard 22 millimeter diameter cut-outs and simple screw-clamp connections. The bright LED ensures visibility even from a distance, making it suitable for various applications in industrial and control systems.

• Voltage: 110-120VAC
• Current: 14mA
• Impact, dust, and water resistant (IP66/IP69K)

Product Highlights

Suitable for harsh environments with long-lasting LED illumination. Ideal for machine operation indicators, and control panel applications.

Product Information

Standard Information

• Brand: Schneider Electric
• Manufacturer: Square D

Technical Specifications

• Catalog Number: XB4BVG5
• Color: Orange
• Width: 1.18 inches
• Height: 1.85 inches
• Depth: 2.13 inches
• Weight: 0.18 lb
• Standards: UL, CSA, IP66, IP69K
• Voltage Rating: 110...120 Volt AC 50/60 Hz
• Warranty Length: 18 months
