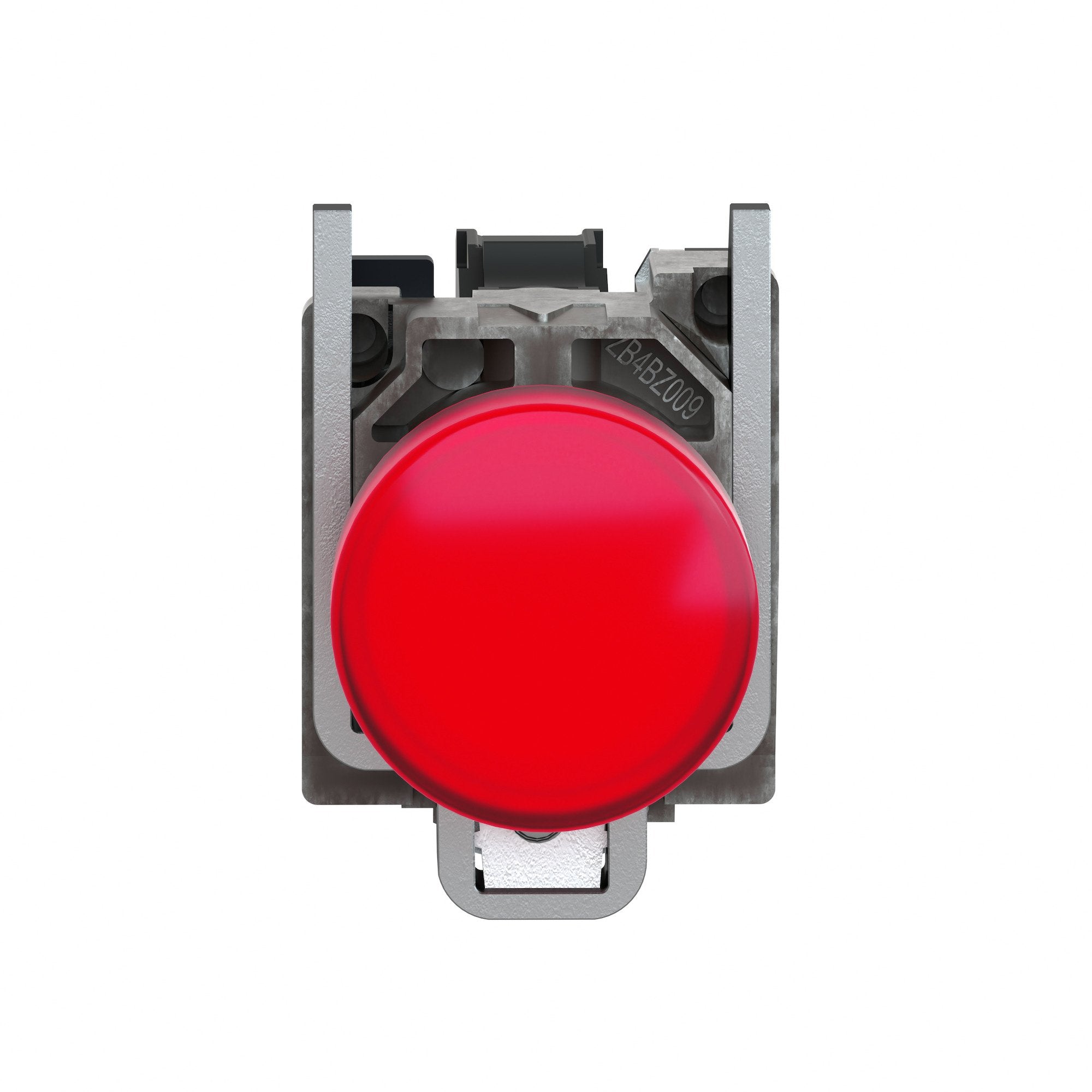

Schneider Electric XB4BVB4 22 mm 24 VAC/VDC 18 mA Red Round Illuminated Pilot Light with LED

Product Description

Schneider Electric XB4BVB4 is a round illuminated pilot light designed for use with 24 volt AC and DC systems. It features a metal bezel and utilizes a universal LED for bright visibility. This product is engineered for easy installation into standard twenty-two millimeter diameter cut-outs with simple screw-clamp connections. It maintains a high level of illumination, ensuring clear process and machine operation indications from a distance.

This device is built to withstand challenging conditions, being impact, dust, water, and vibration resistant, with an IP66 / IP67 / IP69K rating. The contacts are versatile, suitable for both low-load electrical contact and high-power applications. The pilot light design includes shake-proof screws that eliminate the need for routine retightening, promoting reliability in environments with high pressure cleaning, dust, and extreme temperatures. These components are commonly utilized by machine manufacturers and control system panel builders across various industries.

This product meets various international safety standards and is certified for use globally, ensuring its suitability across different markets.

• Operating voltage: twenty-four volt AC/DC
• Current rating: eighteen mA
• Enclosure rating: IP66, IP69K

Product Highlights

The Schneider Electric XB4BVB4 pilot light is ideal for signaling purposes in industrial applications.

Product Information

Standard Information

• Brand: Schneider Electric
• Manufacturer: Square-D / Schneider

Technical Specifications

• Catalog Number: XB4BVB4
• Weight: 0.18 lb
• Depth: 54 mm
• Width: 30 mm
• Height: 47 mm
• Voltage: 24 Volt AC/DC 50/60 Hz
• Current: 18 mA
• Contact Rating: AC15 - DC13
• Country of Origin: France
• Warranty Length: 18 months
