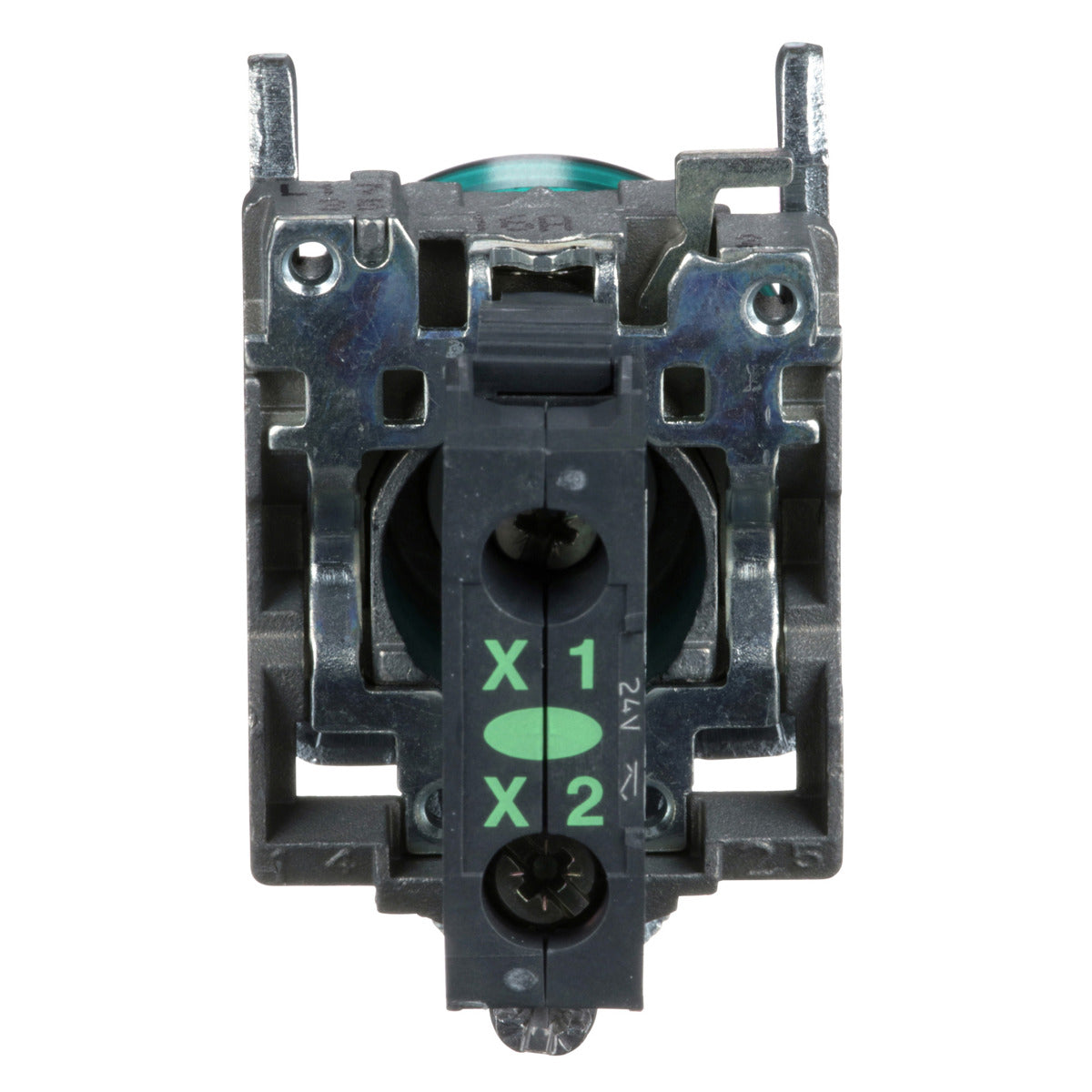

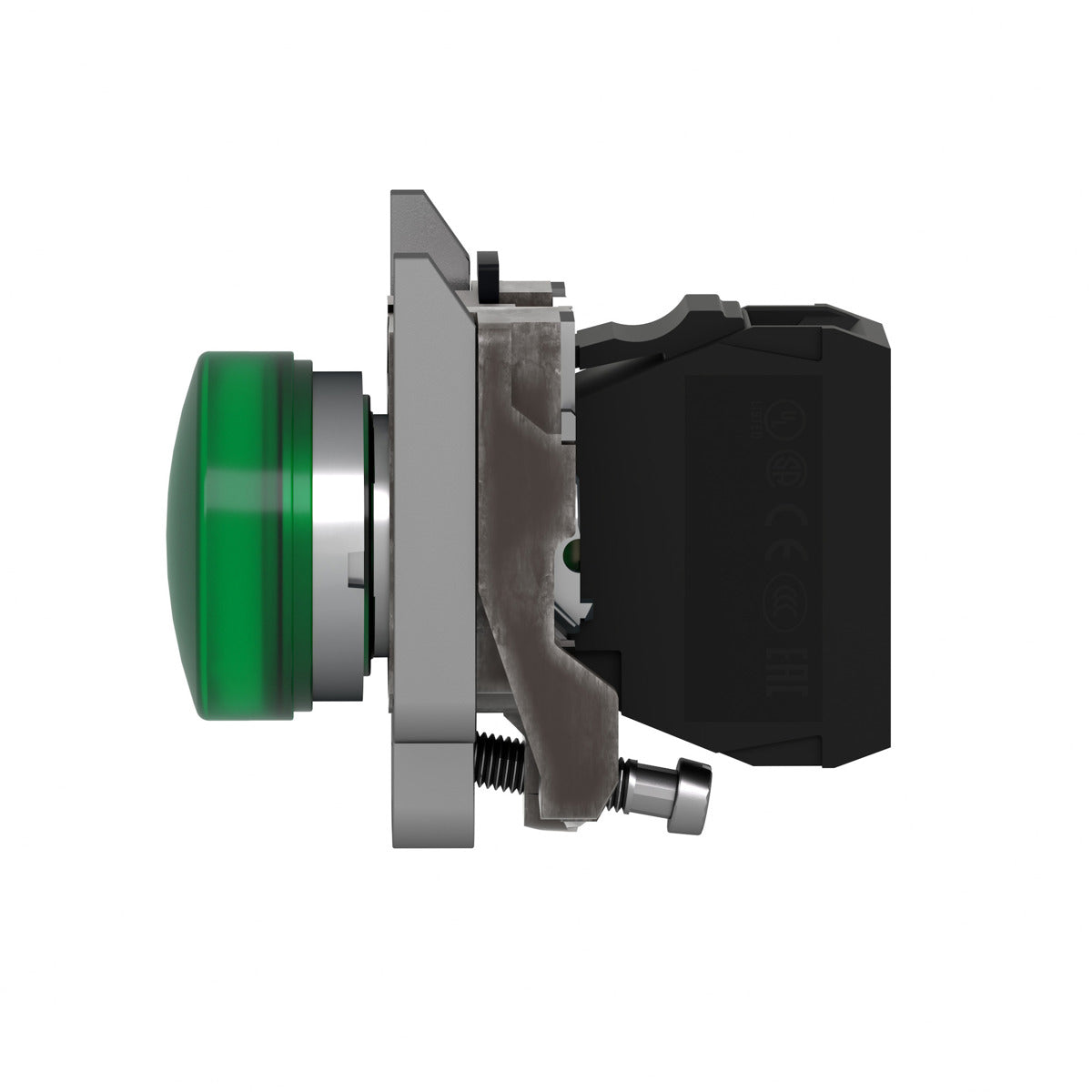

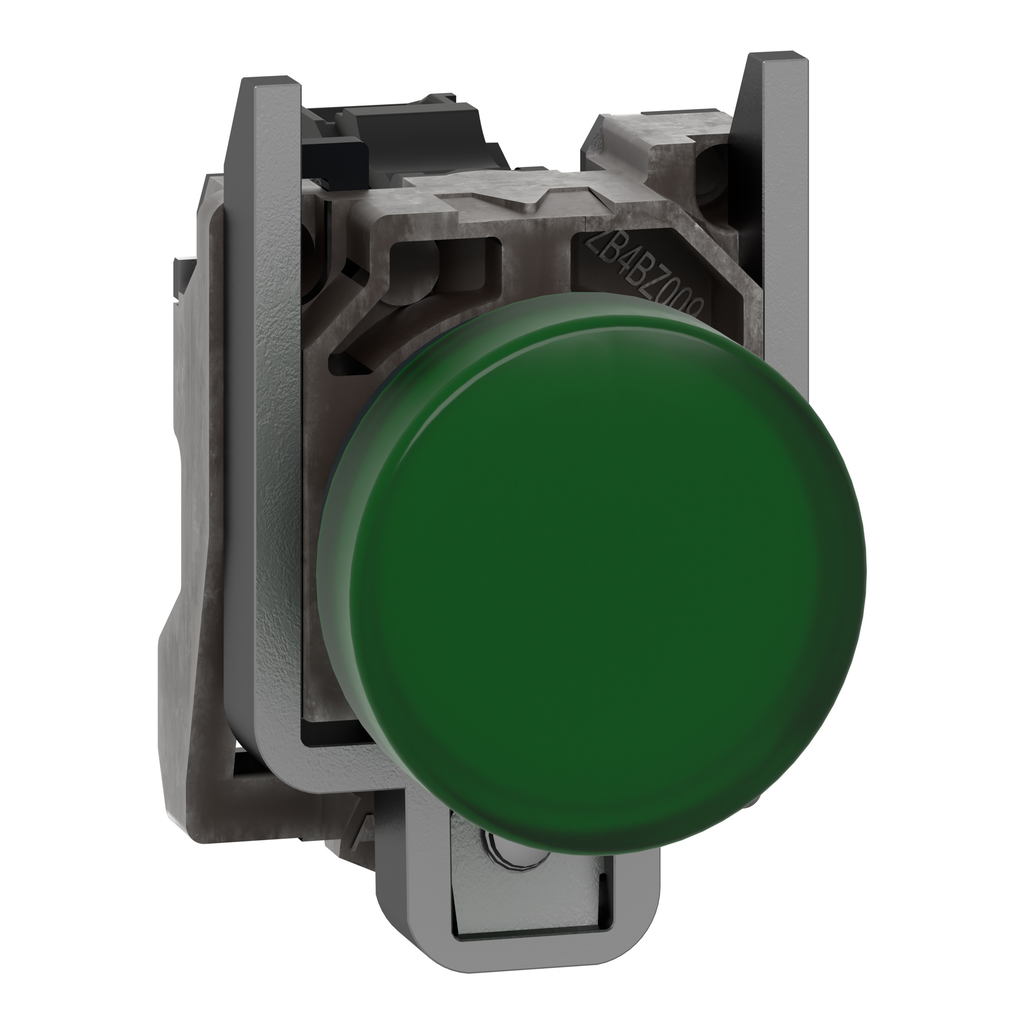

Schneider Electric XB4BVB3 Round Pilot Light 24 VAC/VDC 18 mA Green 22 mm

Product Description

The Schneider Electric XB4BVB3 is a 22 mm round illuminated pilot light that operates at 24 volts AC or DC with a current of 18 mA. This pilot light features a green LED which provides bright illumination for indicating machine operation status. The metal bezel ensures durability and ease of installation into standard cut-outs with screw-clamp connections.

• Universal LED for enhanced visibility
• IP66 / IP67 / IP69 / IP69K rated for harsh environments
• Meets global standards including UL, NEMA, CSA, and more

Product Highlights

This pilot light is designed for easy use in various applications, particularly in control systems. It is suitable for environments where dust, water, and vibration resistance are crucial.

Product Information

Standard Information

• Brand: Schneider Electric
• Manufacturer: Square-D / Schneider

Technical Specifications

• Catalog Number: XB4BVB3
• Voltage: 24 Volt AC/DC
• Current: 18 mA
• Size: 2.13 inches
• Weight: 0.18 lb
• Enclosure Type: NEMA 4/4X/13
• IP Rating: IP66/IP67/IP69
• Warranty Length: 18 months
