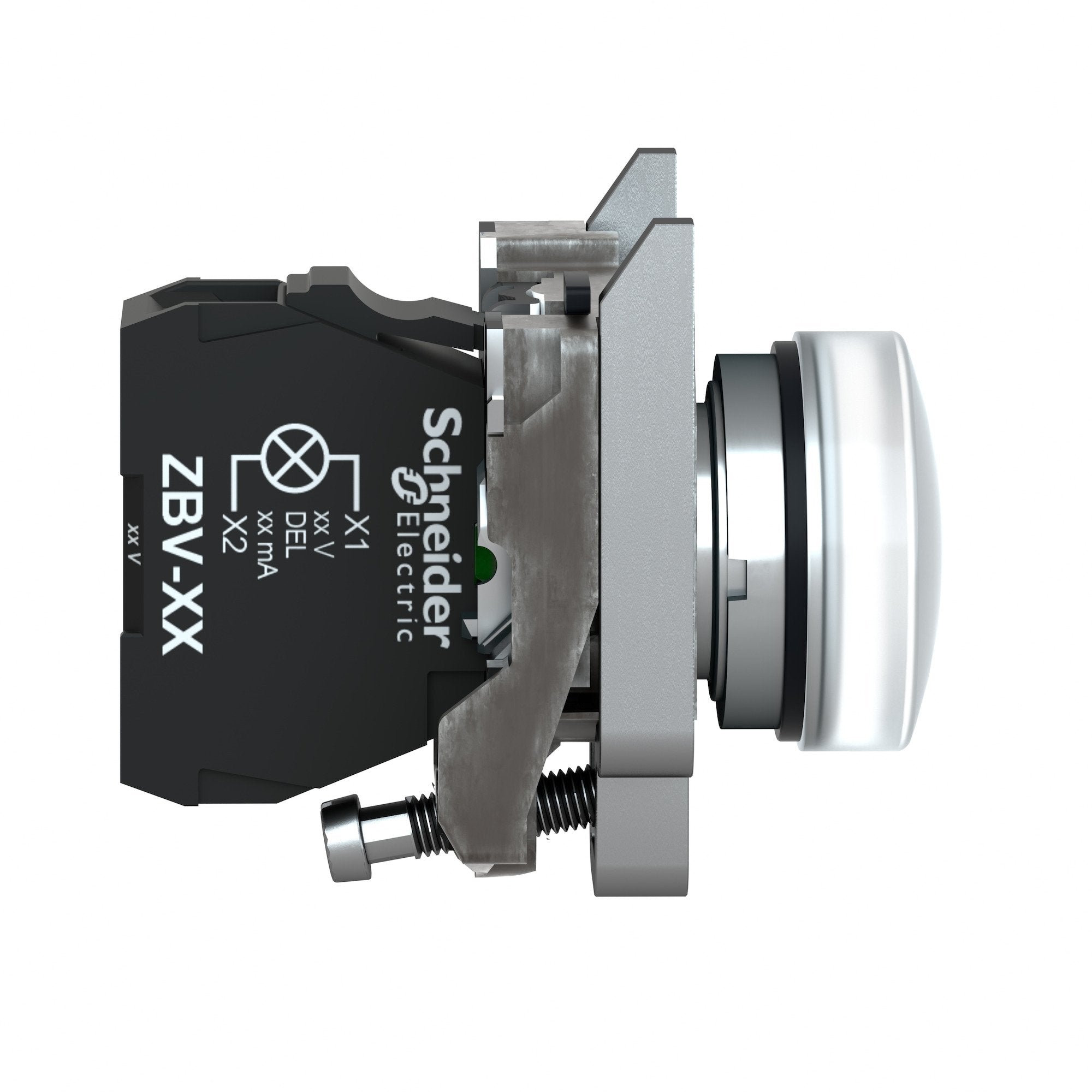

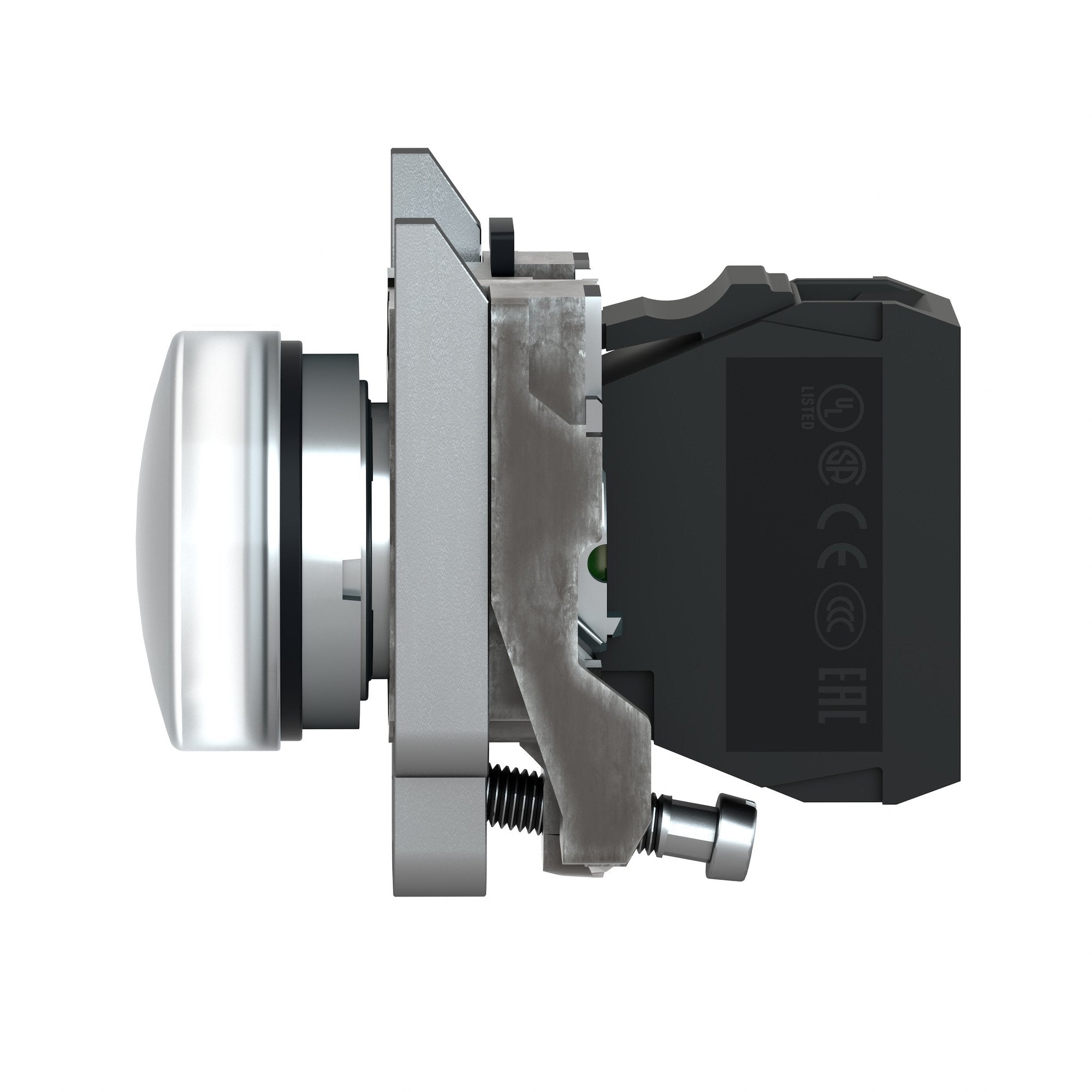

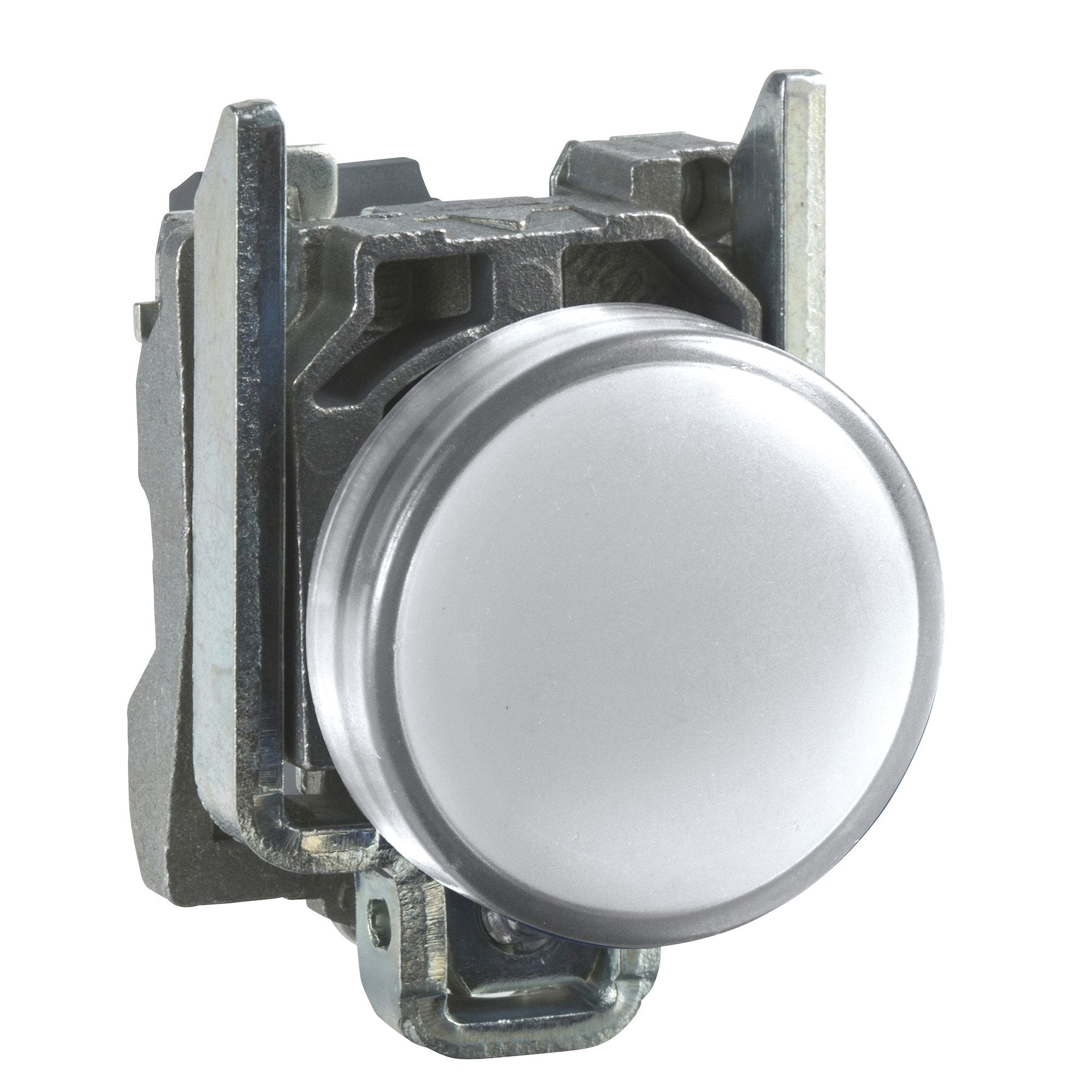

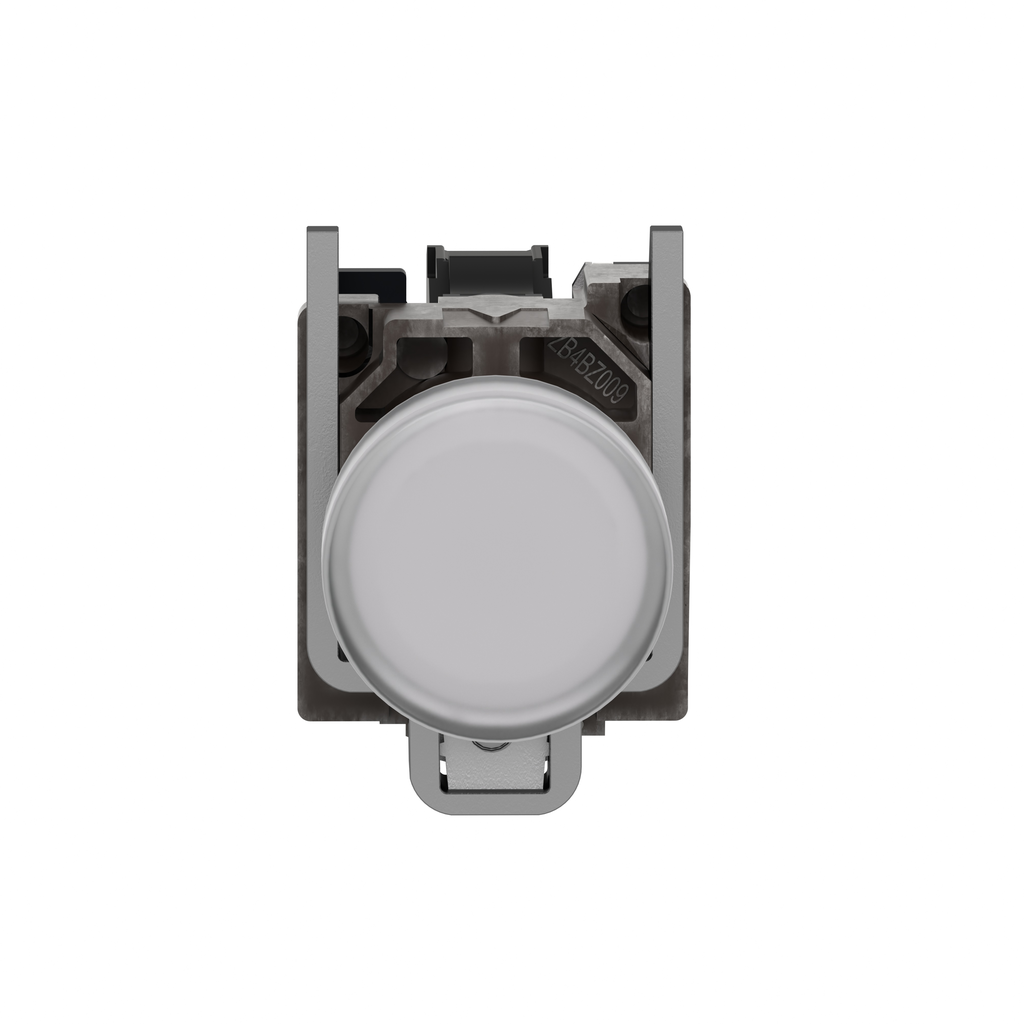

Schneider Electric XB4BVB1 Square D 24 VAC/VDC 18 mA White Round Illuminated Pilot Light with LED

Product Description

The Schneider Electric XB4BVB1 is a modular white pilot light designed for robust performance. It operates with 24 volts AC and DC and utilizes a universal LED for long-lasting illumination. The product is equipped with a metal bezel and can be easily installed into standard twenty-two millimeter diameter cut-outs.

• IP66/IP67/IP69/IP69K rated for harsh environments
• Impact, dust, water, and vibration resistant
• Screw-clamp connections for straightforward installation

Product Highlights

This pilot light is suitable for various machines and processes, providing clear visual indicators in critical applications.

Product Information

Standard Information

• Brand: Schneider Electric
• Manufacturer: Square-D / Schneider

Technical Specifications

• Catalog Number: XB4BVB1
• Type: Pilot light
• Voltage: 24 Volt AC/DC 50/60 Hertz
• Current: 18 mA
• Depth: fifty-four millimeters
• Width: thirty millimeters
• Height: forty-seven millimeters
• Weight: zero point eighteen pounds
• Country of Origin: France
• Environmental Rating: NEMA 4/4X/13
• Head Type: Standard
• Warranty Length: eighteen months
