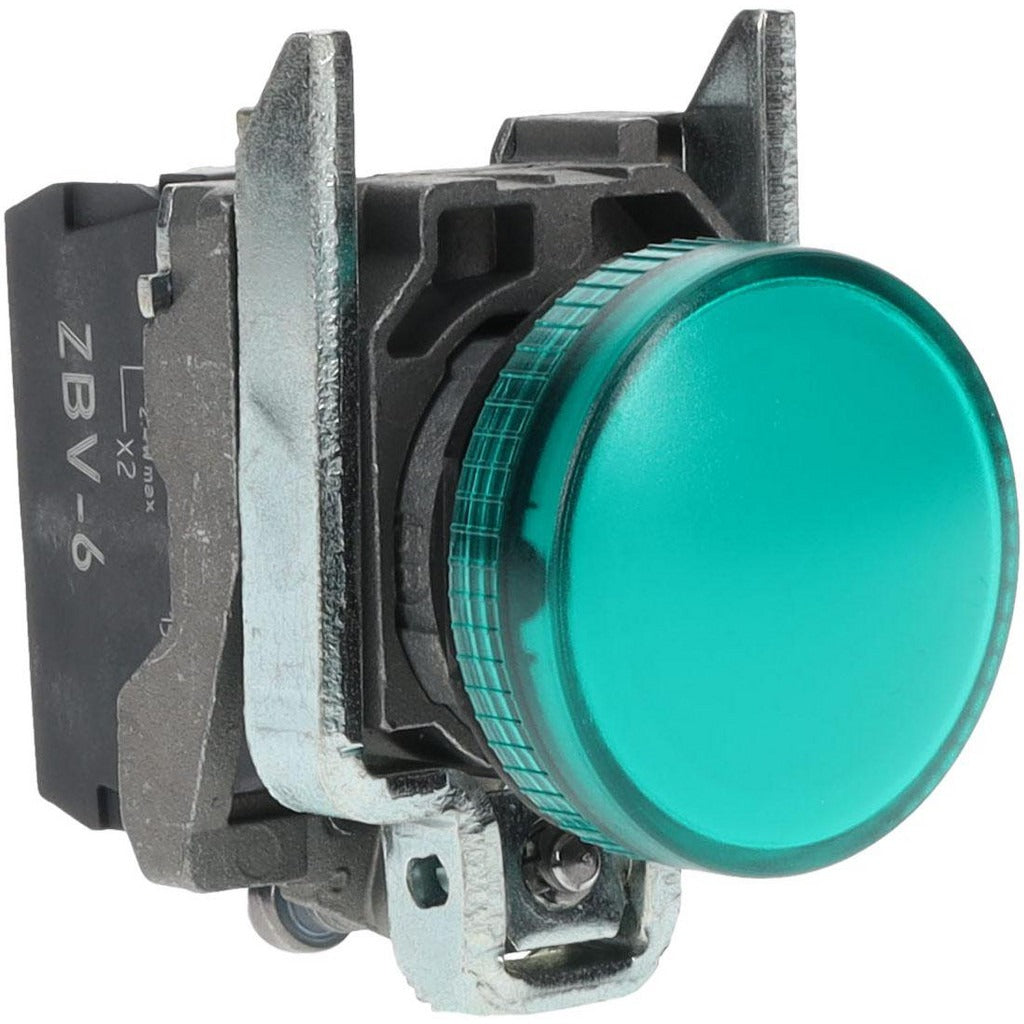

Schneider Electric XB4BV63 Pilot Light 250V Green 30mm

Product Description

The SCHNEIDER ELECTRIC XB4BV63 is a 250-volt pilot light designed for panel-mount indicator applications in industrial and commercial control systems. It features a round green lens and a screw clamp connector, making it a straightforward drop-in indicator for machine control panels, motor starters, and similar low-voltage operator interface assemblies. The 30mm overall diameter and 22mm panel cutout diameter follow standard industrial form factors. Rated for vibration-resistant and water-resistant service, this pilot light is built to hold up in demanding shop-floor and process environments. Licensed electricians and panel builders are the primary installers.

This pilot light is suited for use in industrial control panels, HVAC equipment control boards, pump panels, and machine operator stations where a clear visual run or status indicator is required. The green lens color conventionally signals a safe, on, or normal operating condition. Its NEMA 4X rating makes it appropriate for applications requiring protection against dust, hose-directed water, and corrosion, including washdown or outdoor-accessible enclosures. The 22mm panel cutout is a widely used standard size across industrial enclosure and operator interface hardware.

Key Features

• 250-volt rated for compatibility with standard industrial control circuit voltages
• Round green lens for conventional status indication in control panels
• 30mm overall diameter with 22mm panel cutout for standard industrial mounting
• Screw clamp connector for secure, tool-accessible field wiring
• Vibration-resistant and water-resistant construction for demanding environments
• NEMA 4X rated and UL Listed with multiple international standards met

Compatibility

Designed as an OEM-style replacement or new-installation pilot light for industrial control panels requiring a 22mm panel cutout and 250-volt rating with a screw clamp termination.

Installation Notes

Installation should be performed by a licensed electrician in accordance with NEC requirements and applicable local codes. De-energize and lock out the control panel before cutting the panel or making wiring connections. The screw clamp connector should be tightened securely to prevent loose terminations under vibration. Verify the supply voltage matches the 250-volt rating of the unit before energizing.
