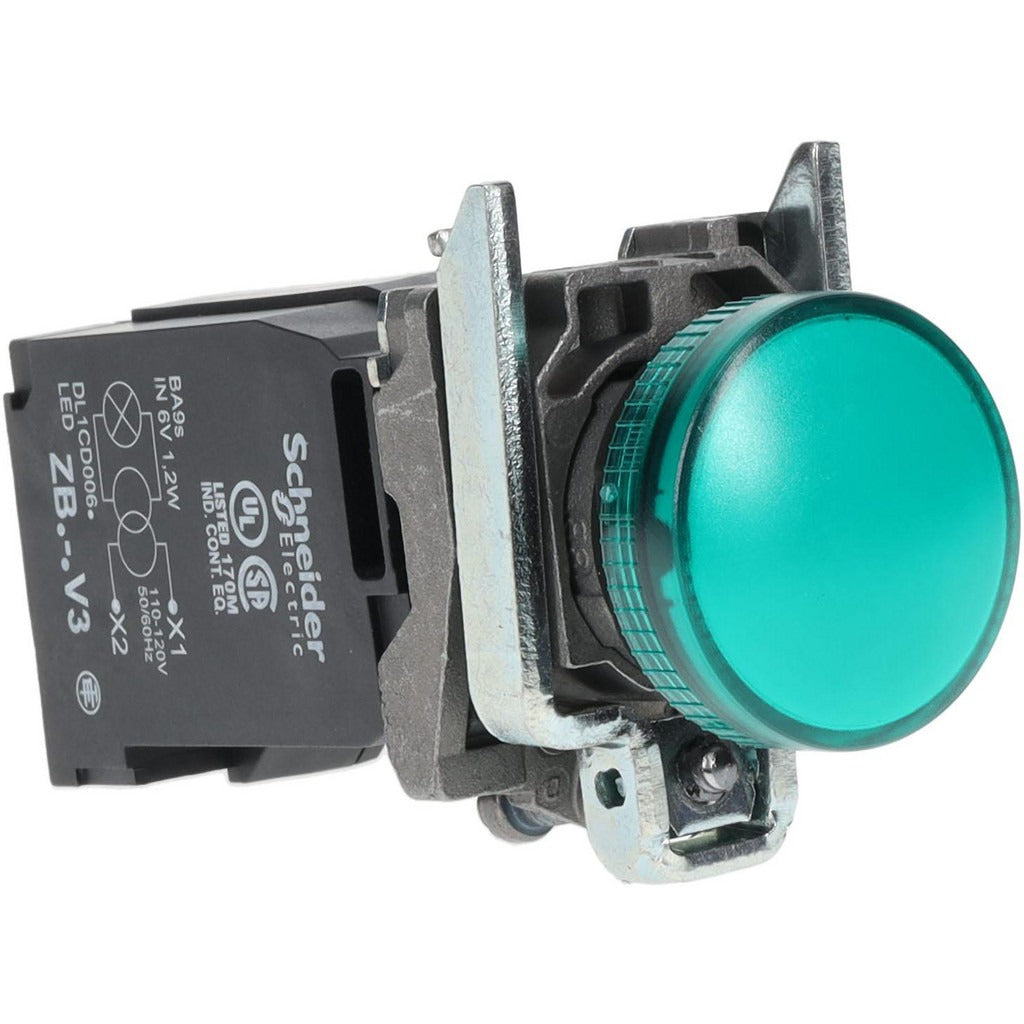

Schneider Electric XB4BV33 Pilot Light Green 30mm

Product Description

The SCHNEIDER ELECTRIC XB4BV33 is a 30mm incandescent pilot light with a green round lens, designed for industrial control panel and operator interface applications. Running on 110-120 volts AC at 50/60 Hz, it uses a screw clamp connector for secure, tool-assisted termination. The unit is both vibration-resistant and water-resistant, making it suitable for demanding environments where standard indicator lights would fail. Licensed electricians and panel builders install this type of device during new panel construction or as a direct replacement for a failed indicator. At 0.33 pounds, the XB4BV33 is a compact, single-piece unit shipped ready to install.

This pilot light is used in commercial and industrial control panels, machine operator stations, and automation enclosures where a 22mm panel cutout is required and a 30mm overall diameter body provides the mounting flange. It fits standard 22mm cutout configurations common across control panel designs in manufacturing, process control, and building automation. The green lens communicates a run, on, or normal-status condition per common panel wiring conventions. Electricians working on UL 508-listed panel builds will find this indicator meets the required certification standards for listed industrial control assemblies.

Key Features

• Green round lens for standard run or on-status indication
• 110-120 VAC operation at 50/60 Hz suits North American control circuits
• Screw clamp connector provides a secure, vibration-resistant termination
• Vibration-resistant and water-resistant construction rated NEMA 4X
• 22mm panel cutout with 30mm body diameter fits common operator interface layouts
• Meets UL 508, CSA, EN/IEC 60947 series, and JIS C 4520 standards

Compatibility

Designed as an OEM-style replacement or new-installation pilot light for 22mm panel cutout applications requiring a 30mm incandescent indicator in 110-120 VAC control circuits.

Installation Notes

Installation is performed by a licensed electrician in accordance with NEC requirements for industrial control panel wiring. De-energize the panel and verify zero voltage at the indicator terminals before removing or installing the device. Use the screw clamp connector to terminate conductors securely, as loose connections in indicator circuits can cause intermittent faults. Do not exceed the rated supply voltage of 120 VAC.
