Schneider Electric XB4BT842 Square D 22 mm 600 VAC 1.2 Amp 1NC Red Round Trigger Action Push-Pull Non-Illuminated Push Button

Product Description

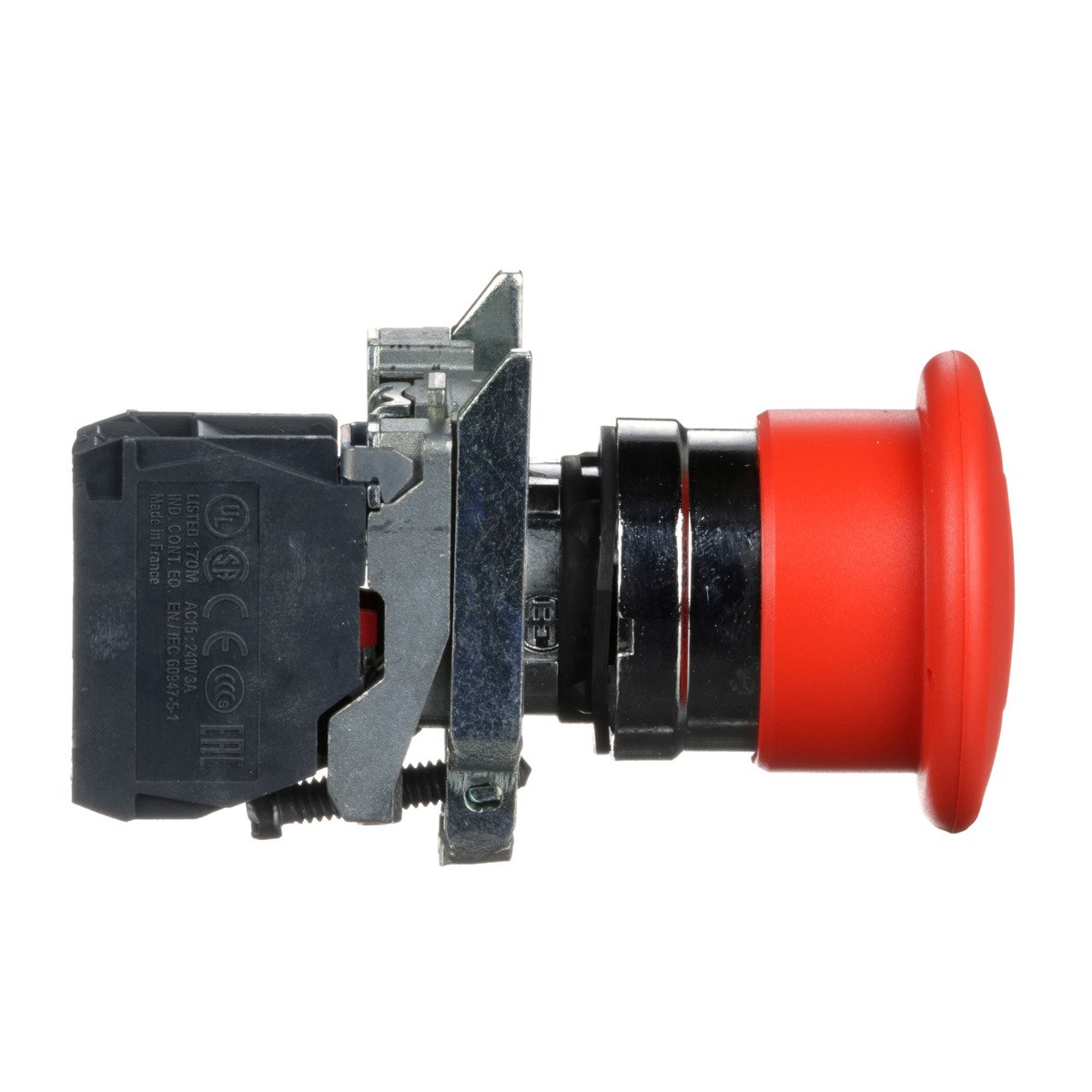

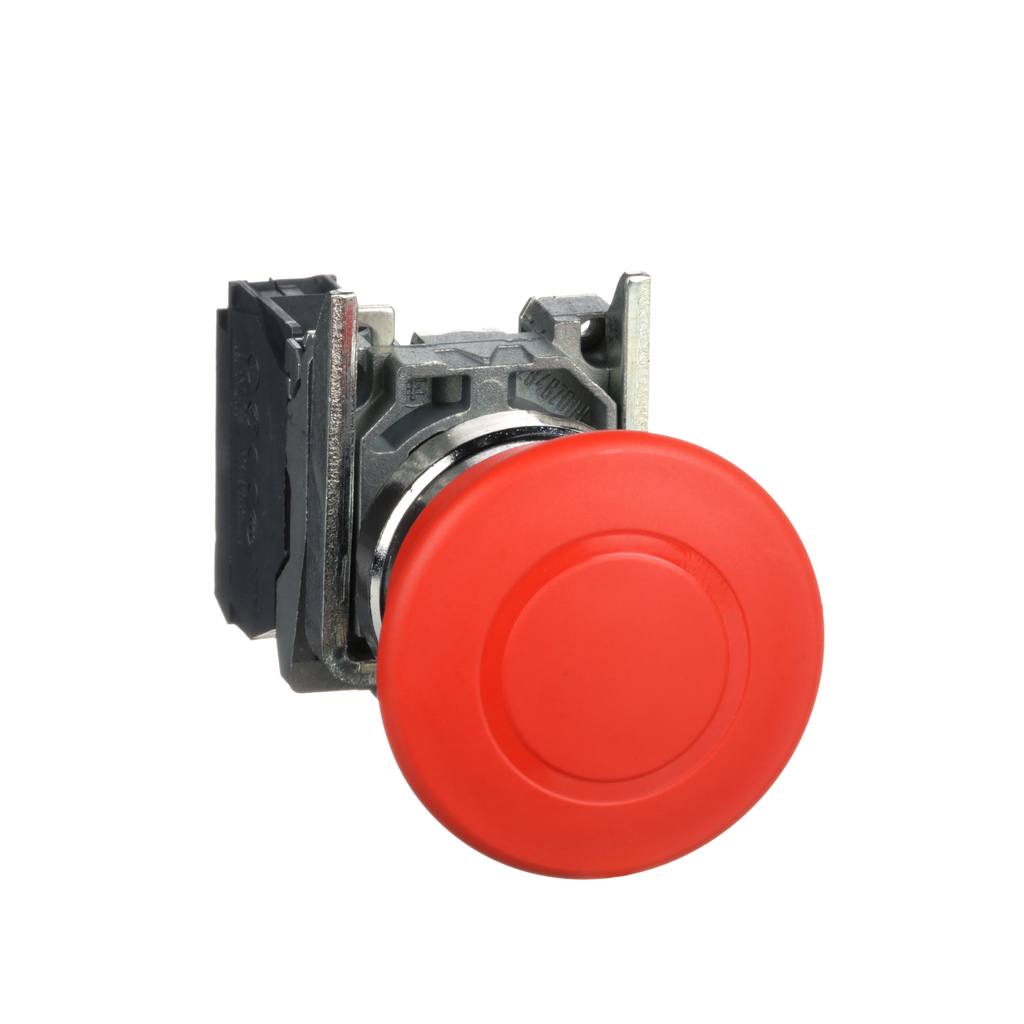

The Schneider Electric XB4BT842 is a round trigger action push-pull button for emergency stop applications. It operates on a latched push-pull mechanism and features a durable metal bezel. This button is designed for easy installation into standard cut-outs and utilizes screw-clamp connections for secure wiring. Its prominent mushroom shape and vivid red color make it highly visible, ensuring safety in emergency situations.

• Modular design for easy assembly and installation.
• Impact, dust, and water-resistant with IP66 rating.
• Operates in harsh environments with temperature range of minus forty to seventy degrees Celsius.

Product Highlights

This button is ideal for use in industrial settings where quick shutdown is essential. It meets various safety certifications including CSA and UL, making it suitable for global applications.

Product Information

Standard Information

• Brand: Schneider Electric
• Catalog Number: XB4BT842

Technical Specifications

• Type: Emergency stop push-button
• Operating Voltage: 600 VAC
• Amperage Ratings: 1.2 Amp
• Contact Configuration: 1 NC
• Environmental Conditions: NEMA 13-NEMA 4X
• Width: 40 mm
• Height: 47 mm
• Depth: 82 mm
• Weight: 0.28 lb
• Country of Origin: Czech Republic
